System Relay: Testing and Inspection

Heater Relay

1. Disconnect heater relay (X-6).

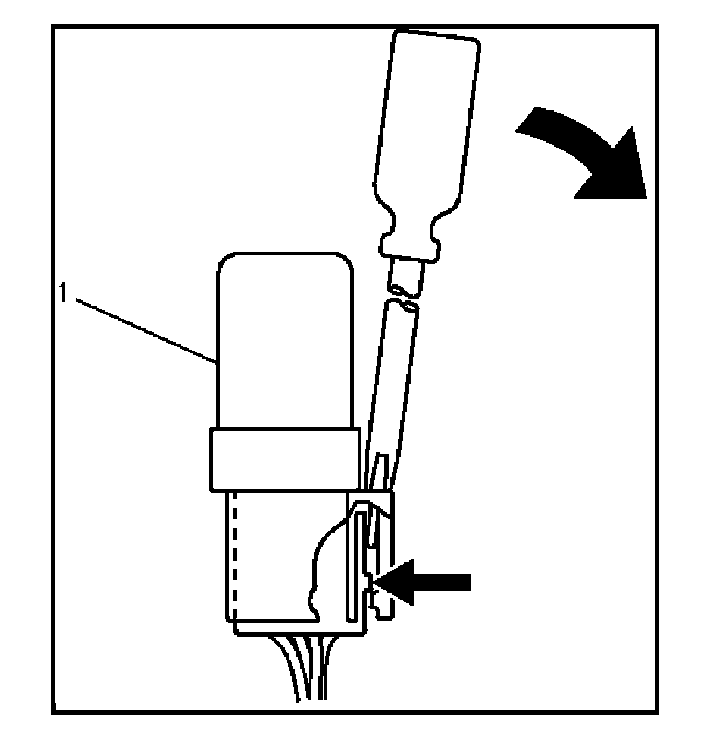

When removing the connector for relay, unfasten the tongue lock of the connector by using a screwdriver, then pull the relay (1) out.

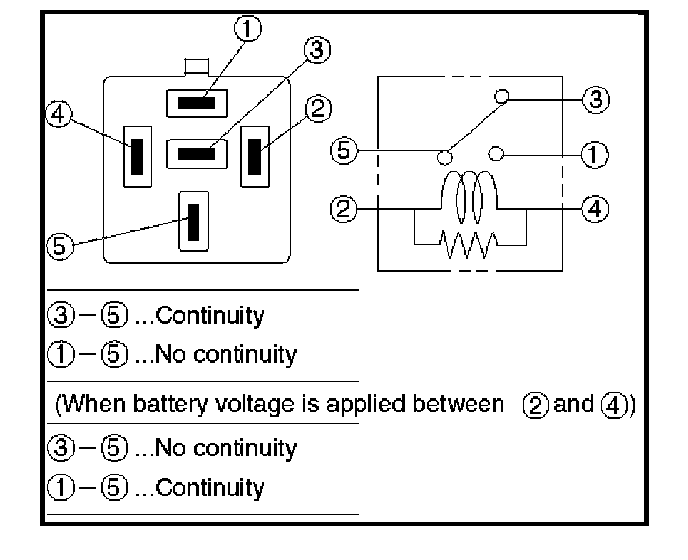

2. Check for continuity between the terminals of heater relay.
