Map Light Bulb: Service and Repair

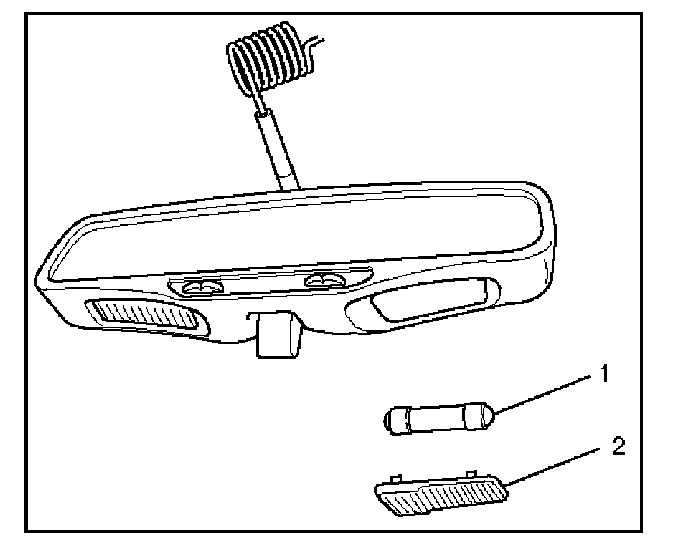

MAP LIGHT SWITCH/BULB

REMOVAL

1. Disconnect the battery ground cable.

2. Remove the lens (2).
- Release the locks.

3. Remove the bulb (1).
- Pull out the bulb.

INSTALLATION
To install, follow the removal steps in the reverse order.
