Fuel Filter: Service and Repair

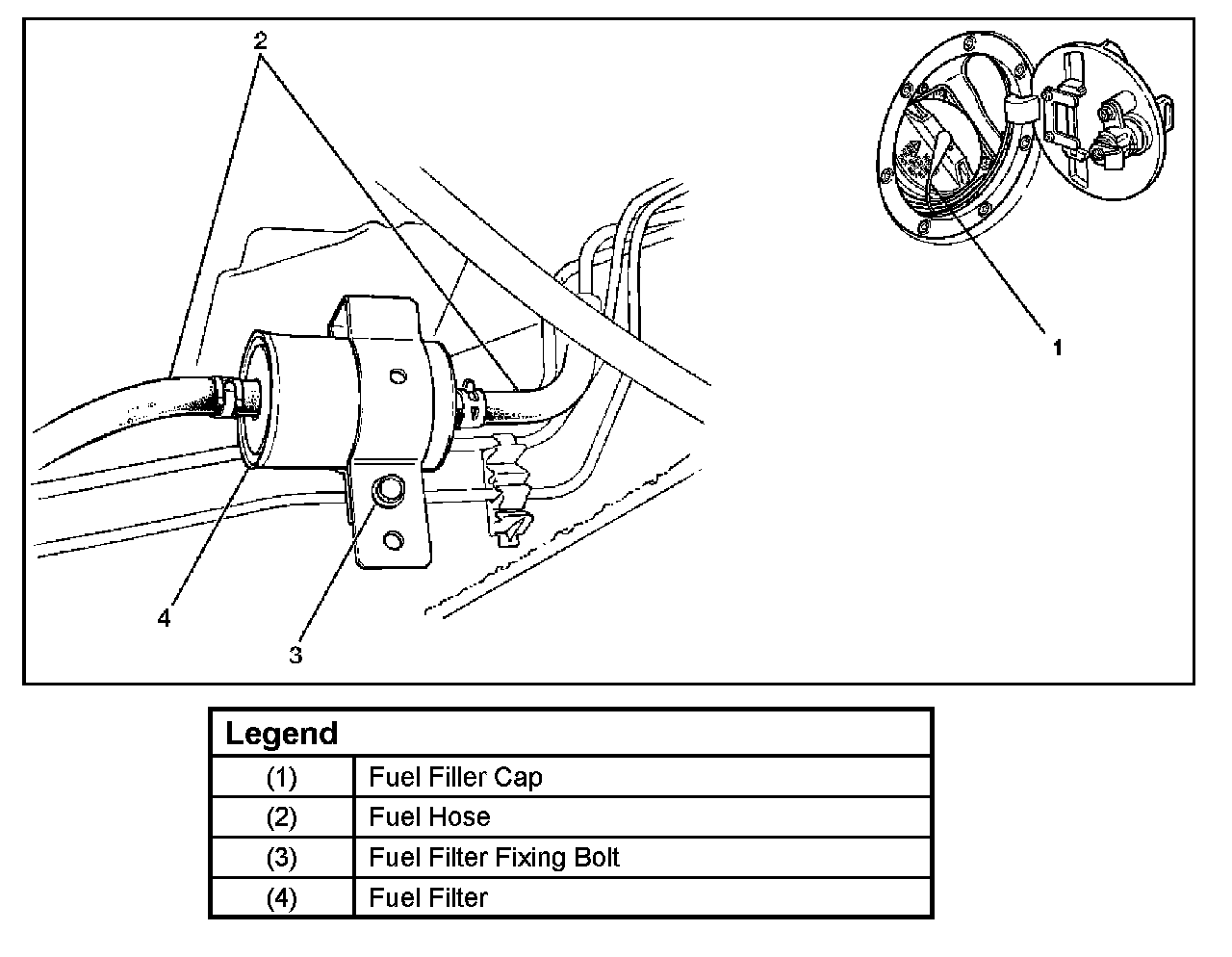

Fuel Filter And Associated Parts:

REMOVAL

CAUTION:
When repair to the fuel system has been completed, start engine and check the fuel system for loose connection or leakage.
For the fuel system diagnosis, see Driveability and Emissions.

1. Disconnect battery ground cable.
2. Remove fuel tiller cap (1).
3. Disconnect fuel hoses (2) from fuel filter on both engine side and fuel tank side.
4. Remove fuel filter fixing bolt (3).
5. Remove fuel filter (4).

INSTALLATION
1. Install the fuel filter in the proper direction.
2. Install fuel filter holder fixing bolt.

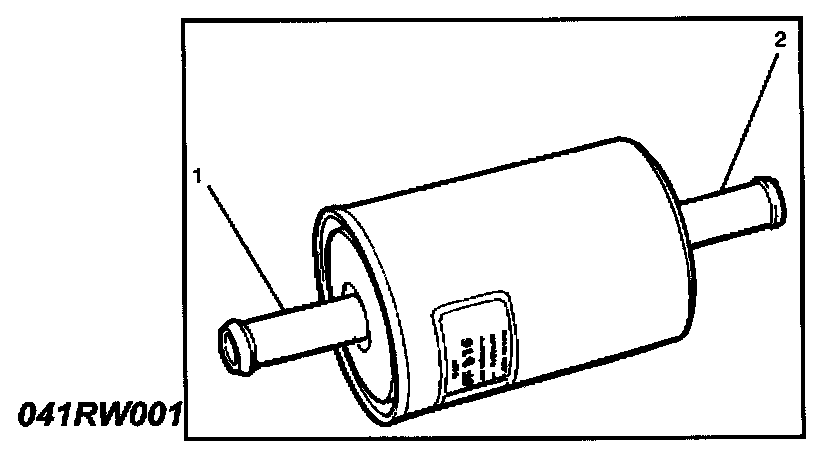

3. Connect fuel hoses on engine side (1) and fuel tank side (2).
4. Install fuel filler cap
5. Connect the battery ground cable.
