Component Locations

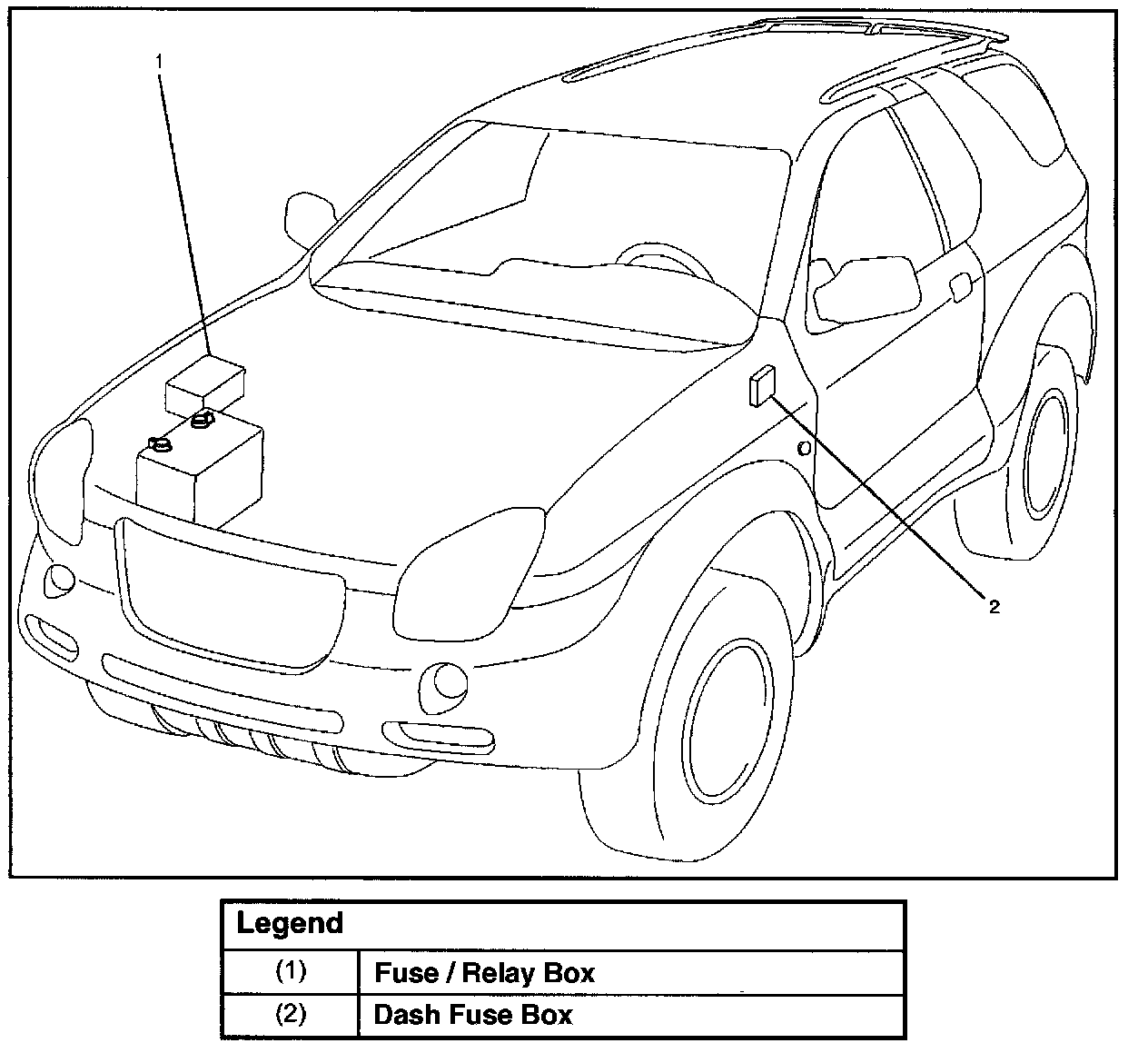

Fuse/Relay Box - Dash Fuse Box Location:

Dash Fuse Box Index (1 Of 2):

Dash Fuse Box Index (2 Of 2):

Power Distribution Index:

Ground Distribution Index (1 Of 3):

Ground Distribution Index (2 Of 3):

Ground Distribution Index (3 Of 3):

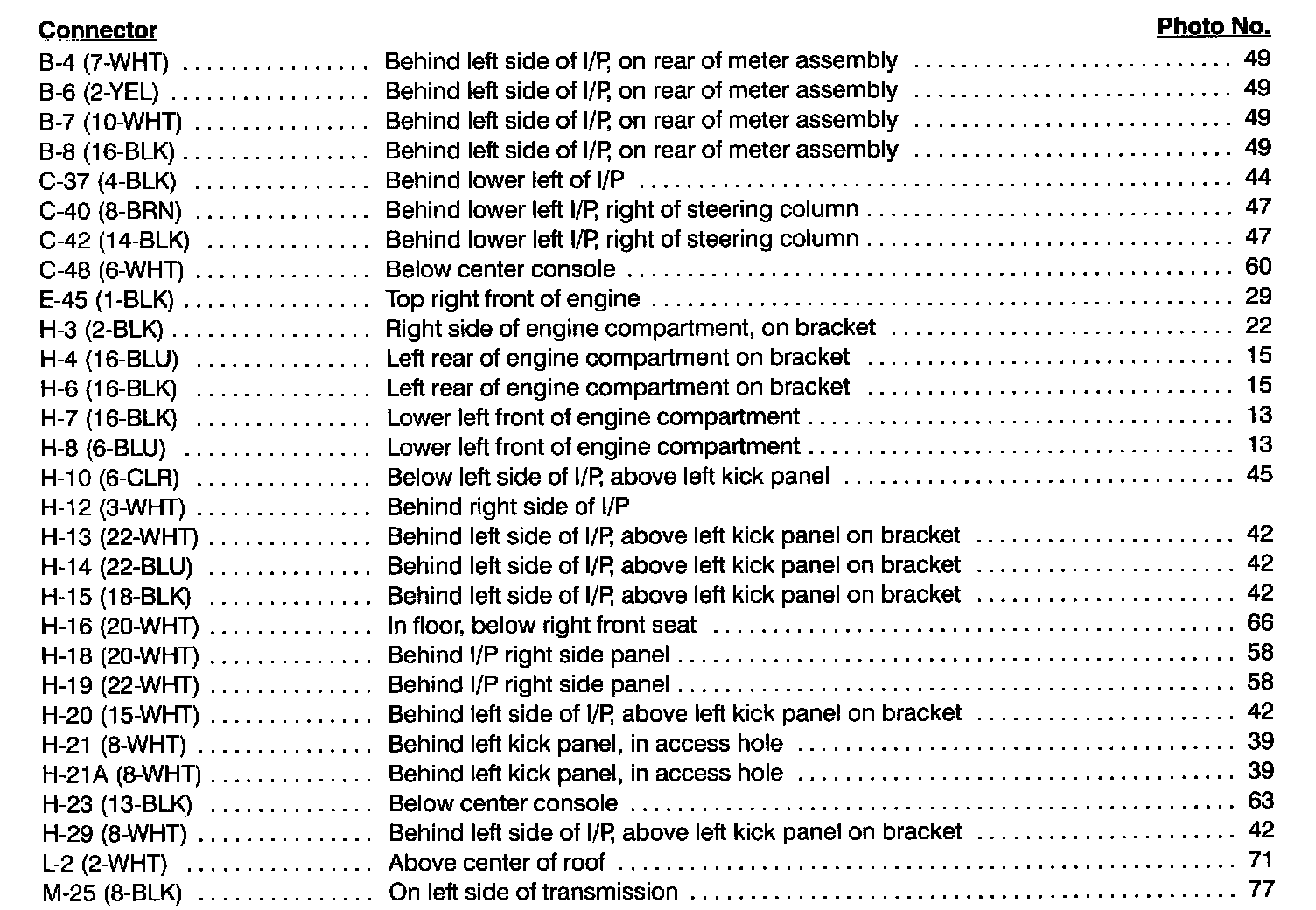

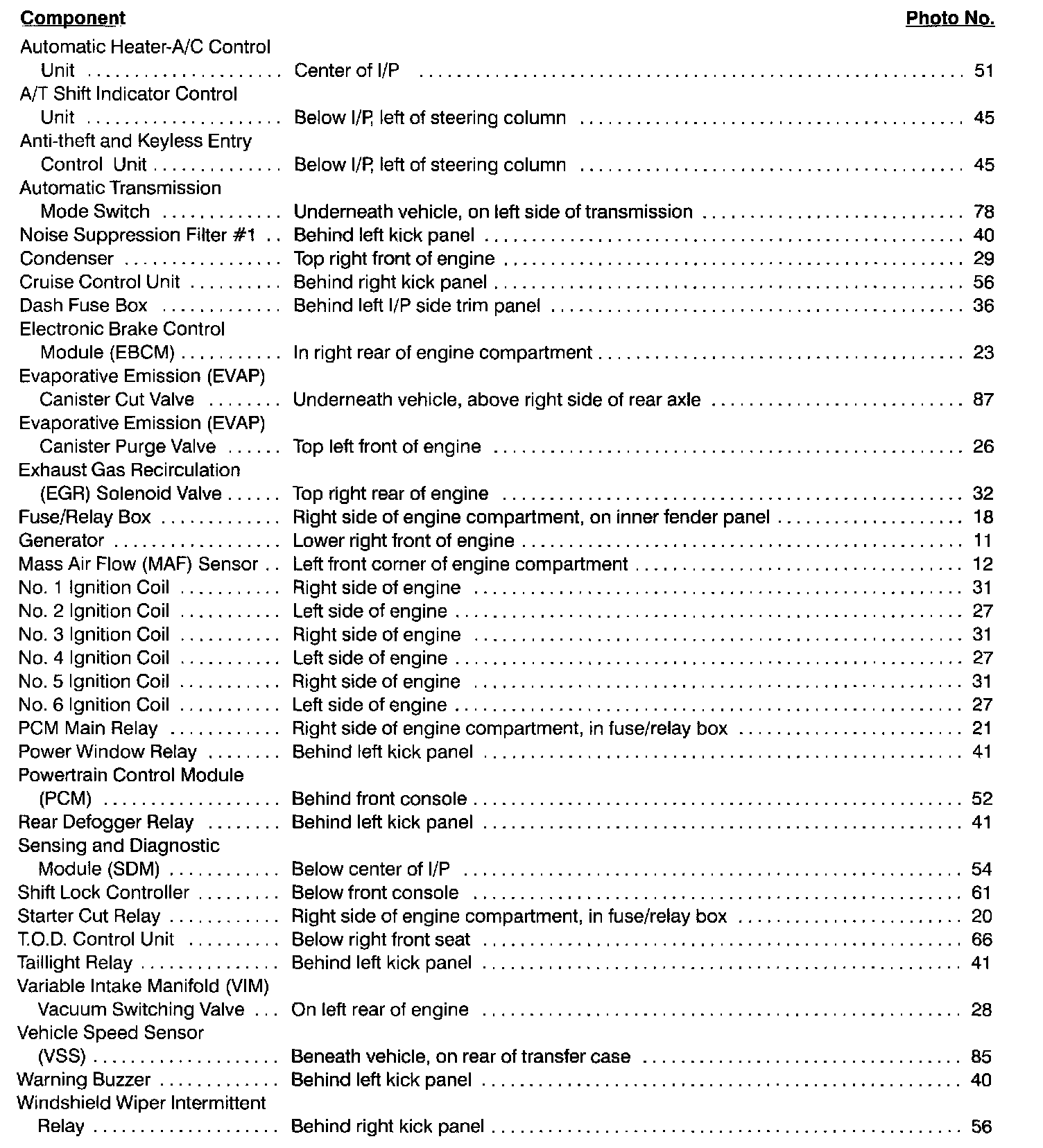

Component Location Index photographs can be found at Component Locations.
Locations
