Component Locations

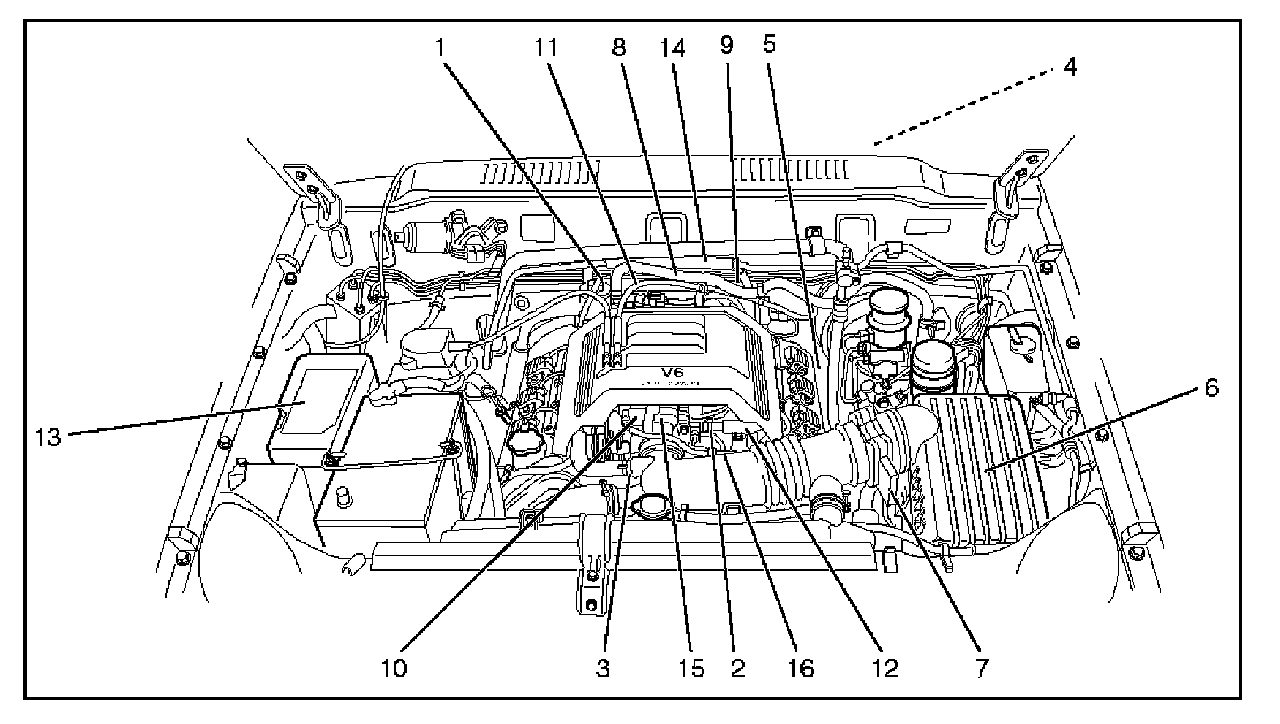

Engine Component Locator:

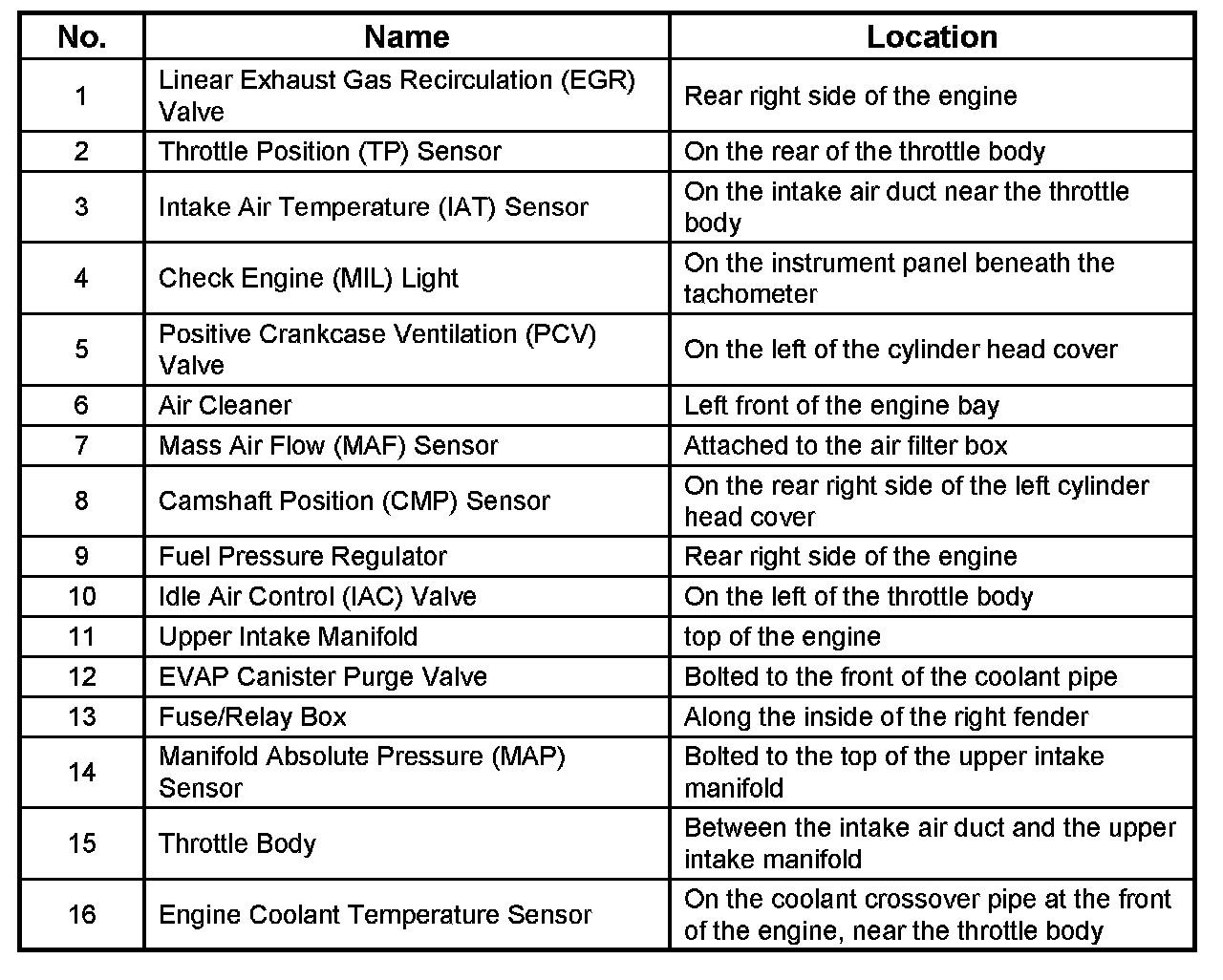

Engine Component Locator Table:

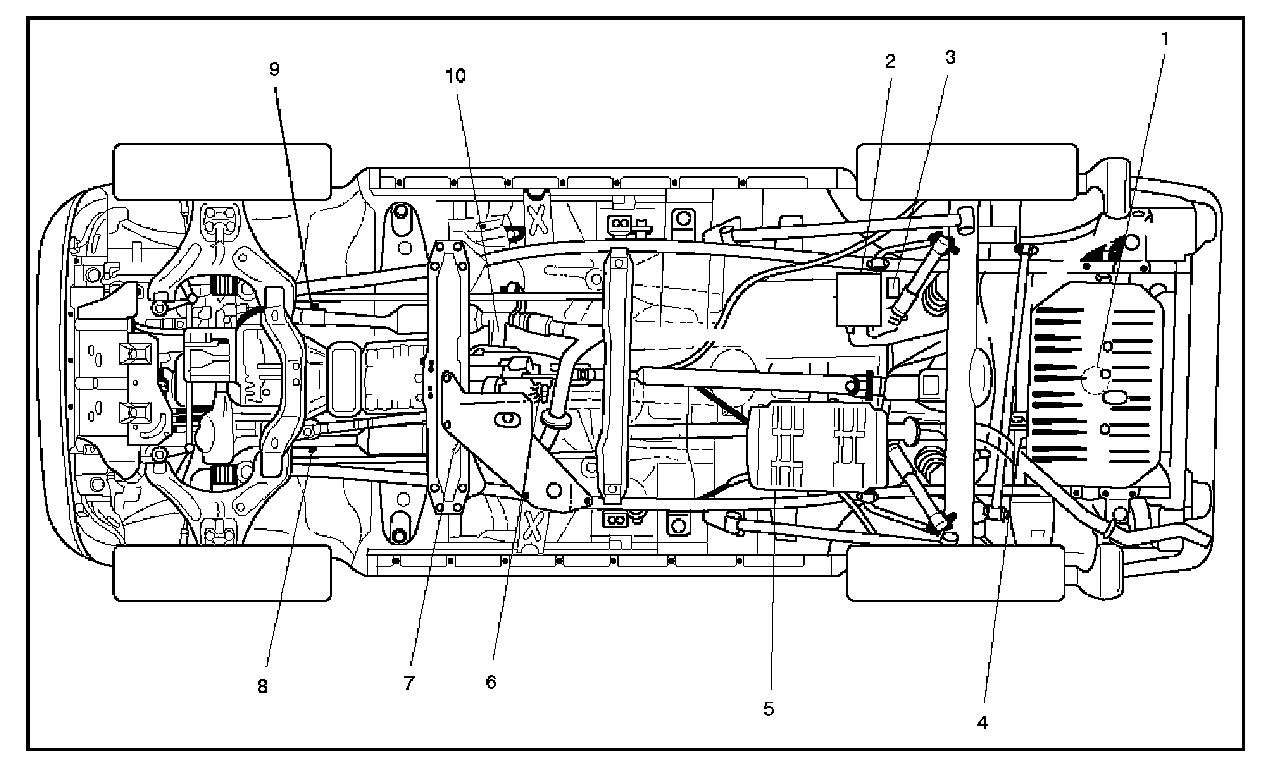

Undercarriage Component Locator:

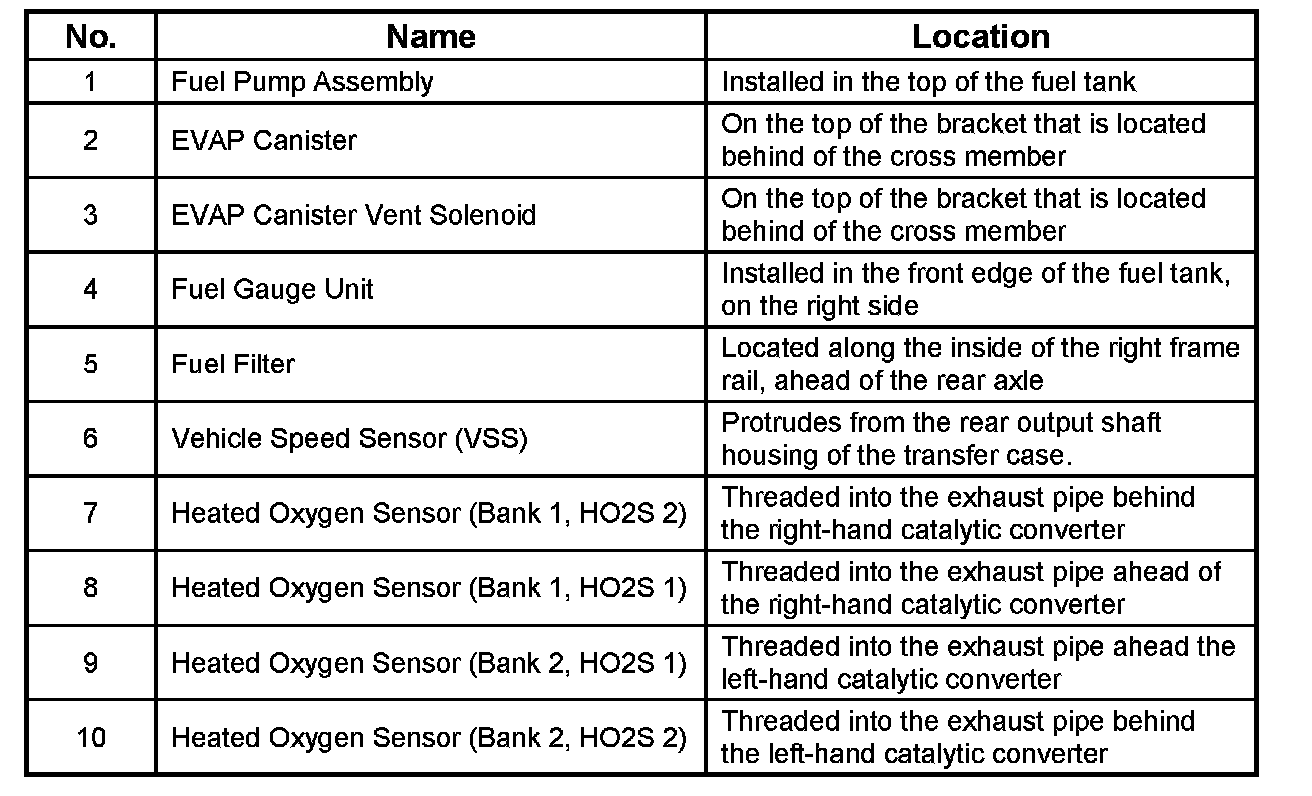

Undercarriage Component Locator Table:

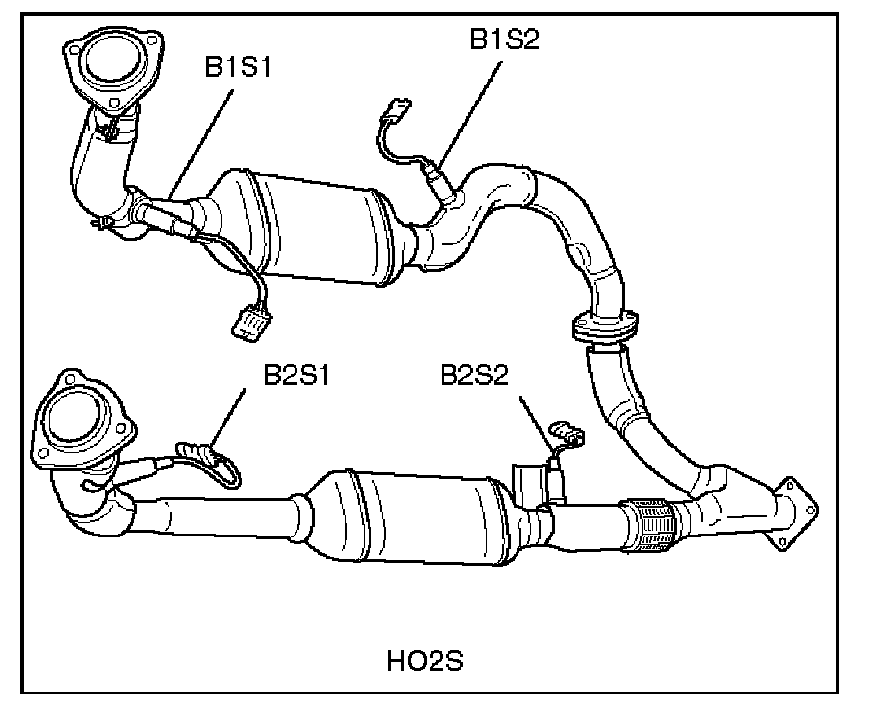

HO2S:

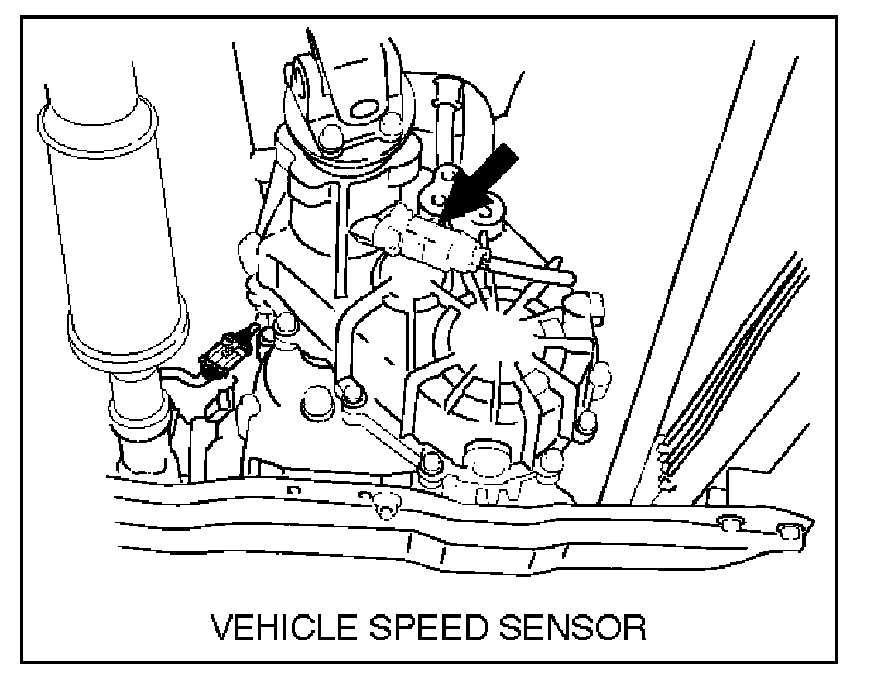

Vehicle Speed Sensor:

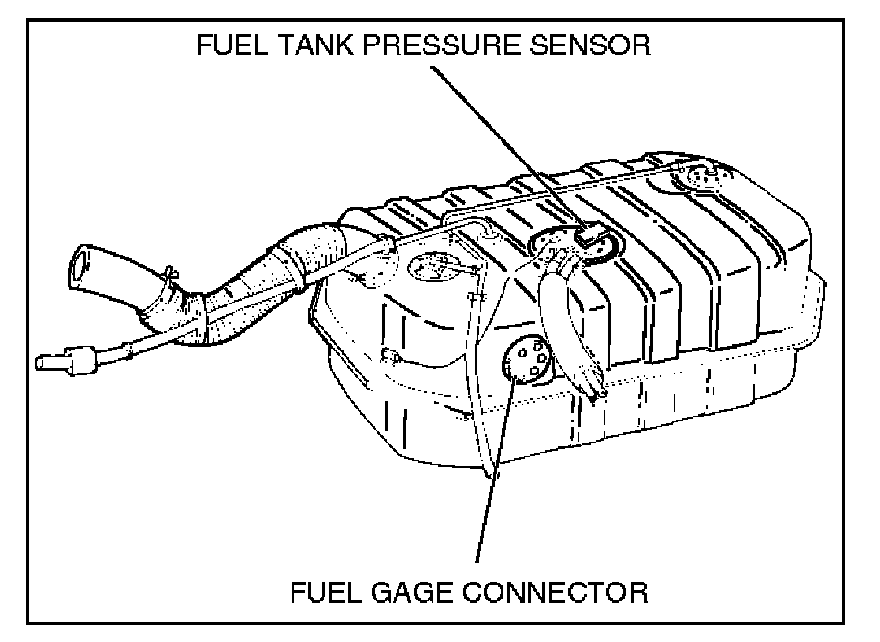

Fuel Tank Pressure Sensor, Fuel Gage Connector:

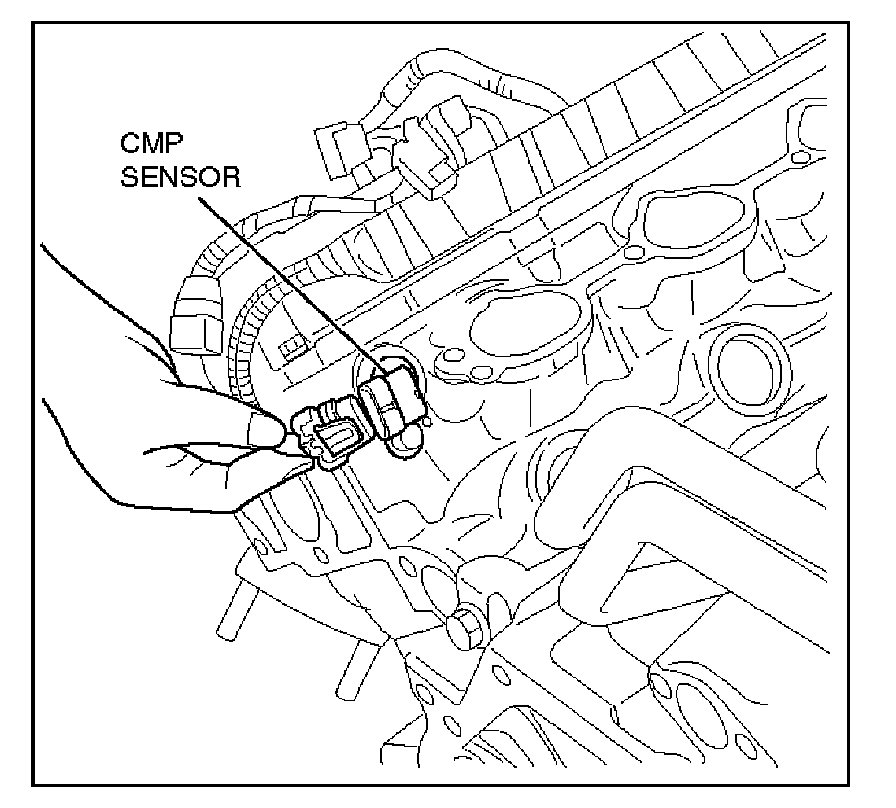

CMP Sensor:

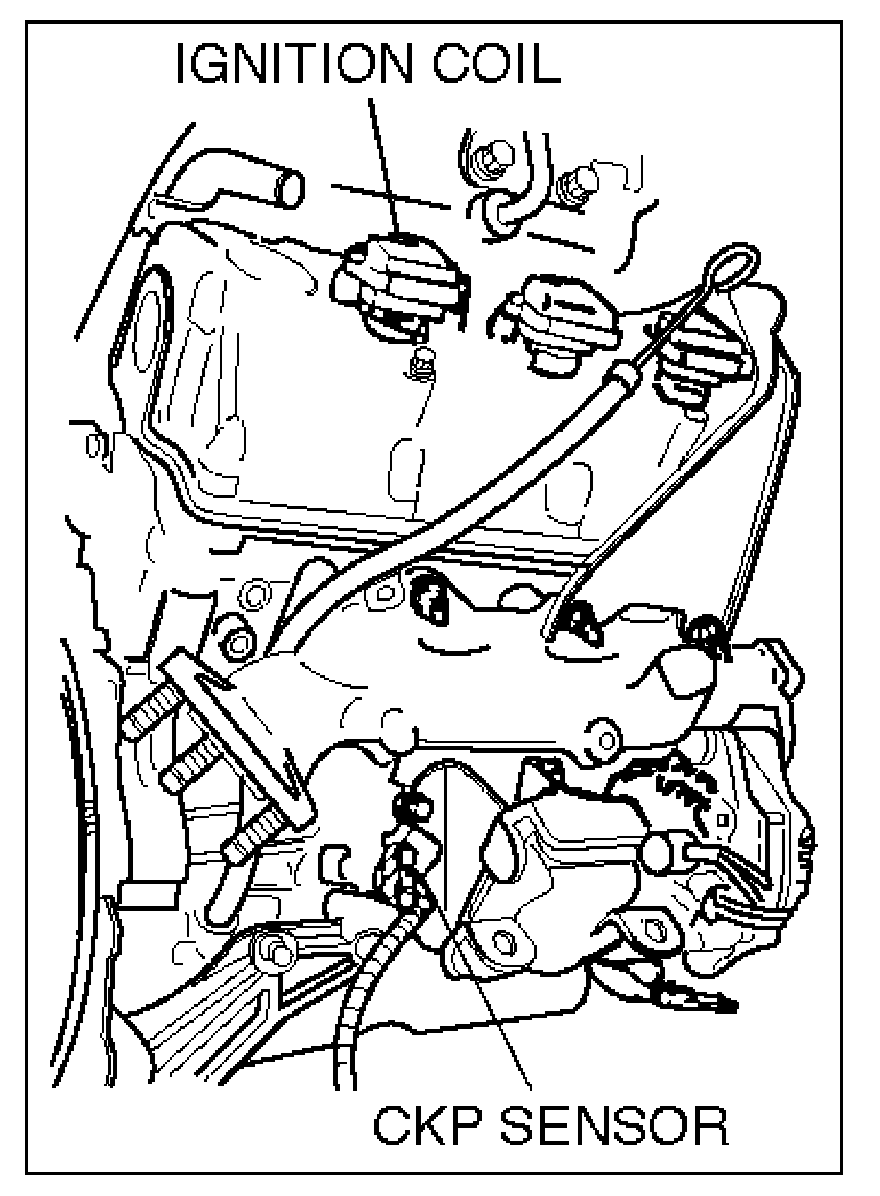

Ignition Coil, CKP Sensor:

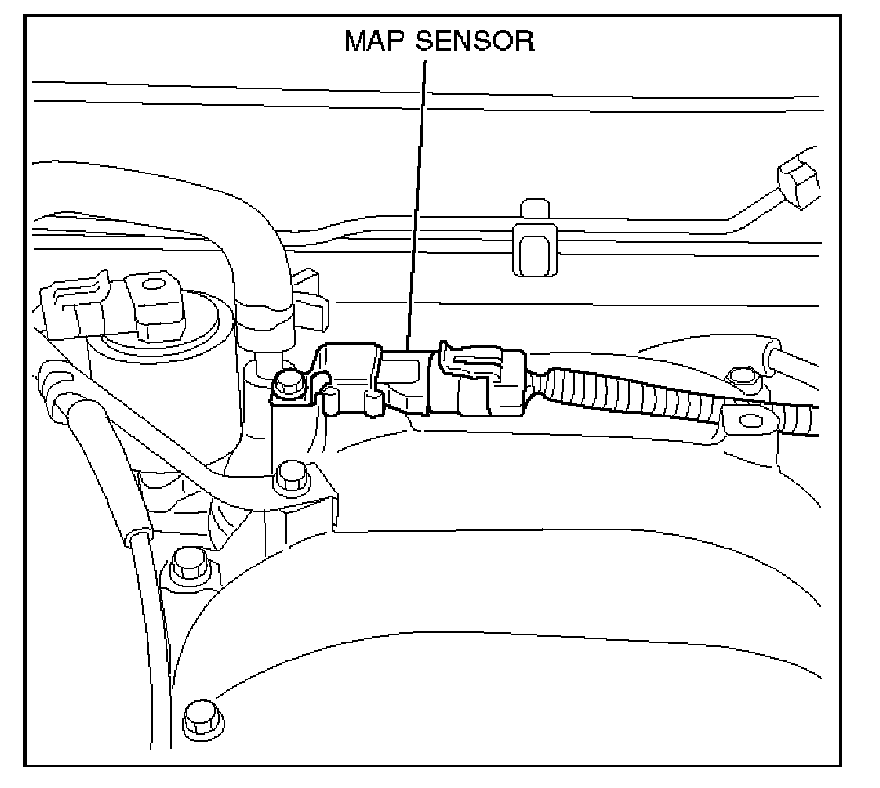

MAP Sensor:

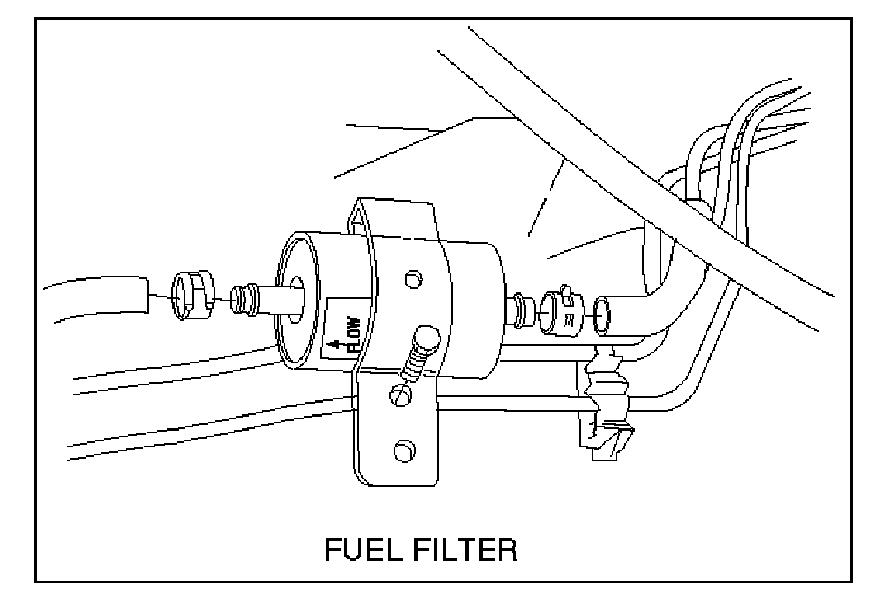

Fuel Filter:

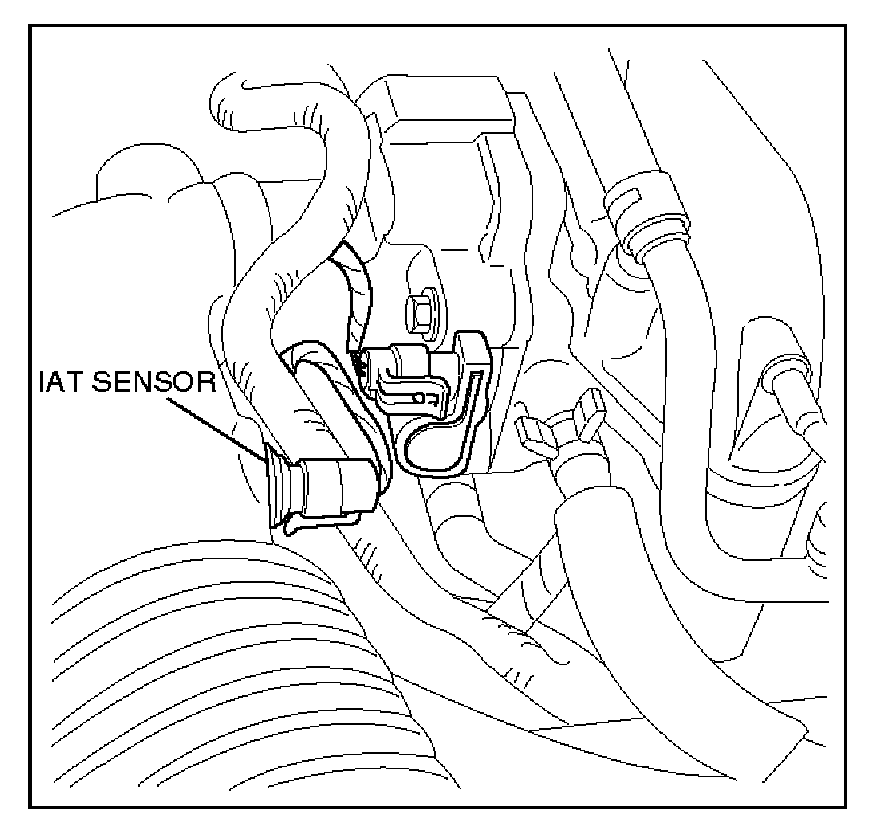

IAT Sensor:

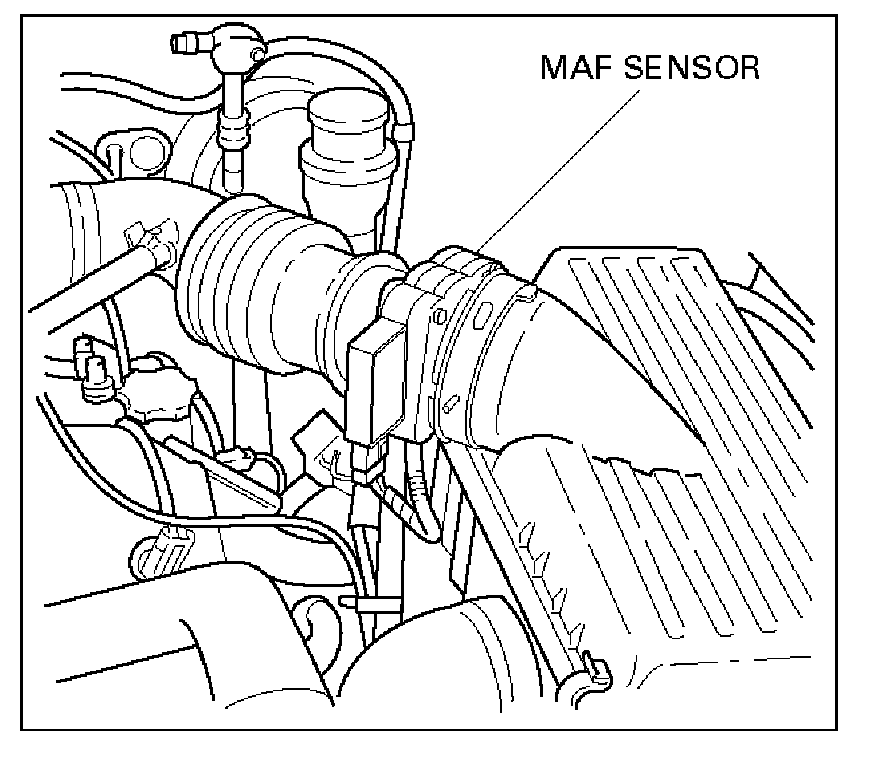

MAF Sensor:

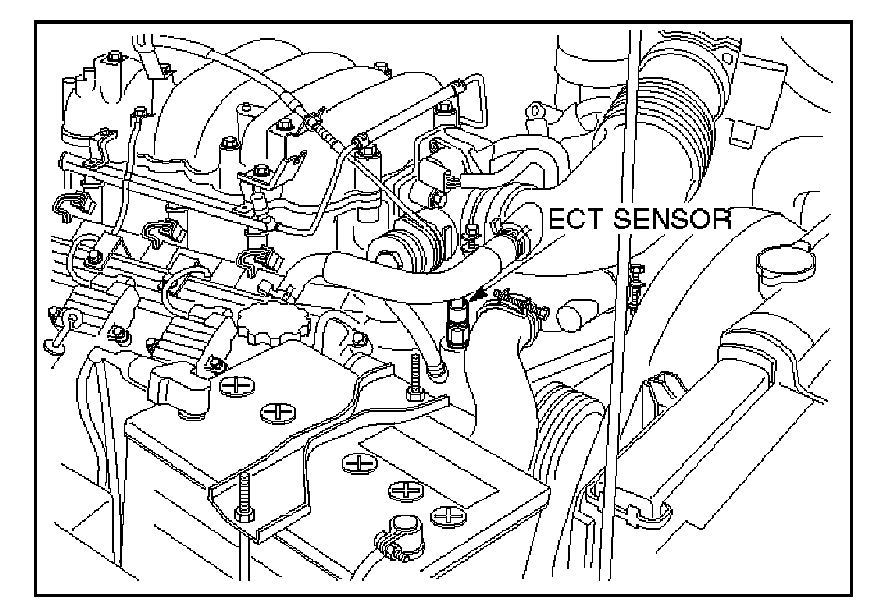

ECT Sensor:

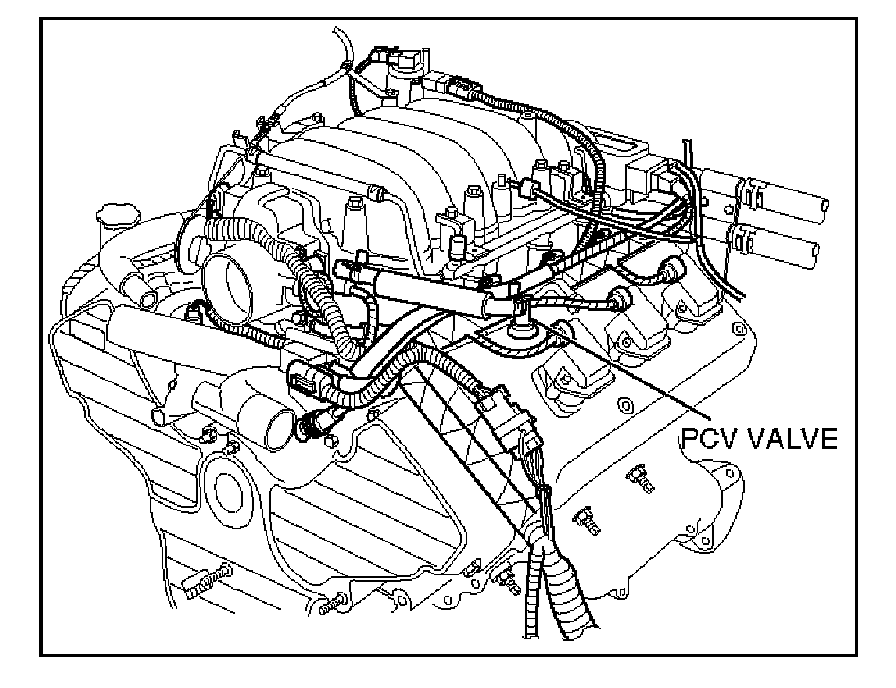

PCV Value:
