Variable Intake Manifold Solenoid Test

This test is conducted check VIM Solenoid for proper operation.

Tech 2 must be used for this test.

Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Ignition SW is "On".

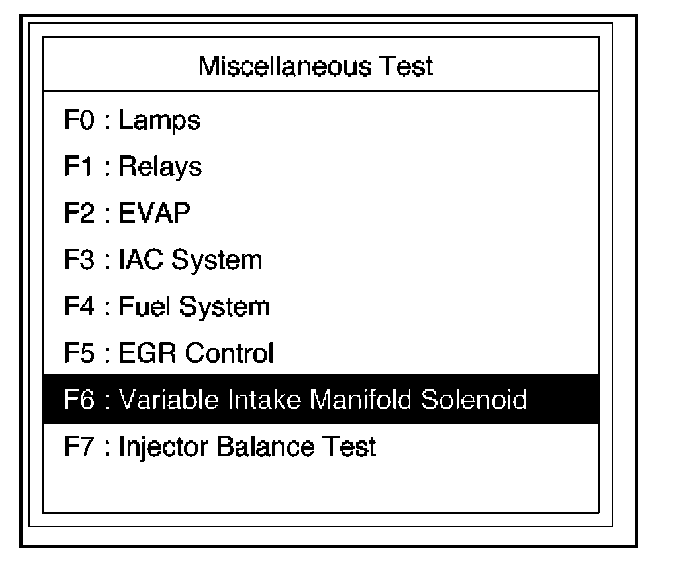

3. Select F3: Miscellaneous Test in the Application Menu.

4. Select F6: Variable Intake Manifold (VIM) Solenoid Test.

5. Push "On" or "Off" of soft key.
6. Control VIM Solenoid check data list. If data list changes, the VIM Solenoid is normal.
