Removal and Installation

REMOVAL

Ignition Coil:




1. Disconnect battery ground cable.

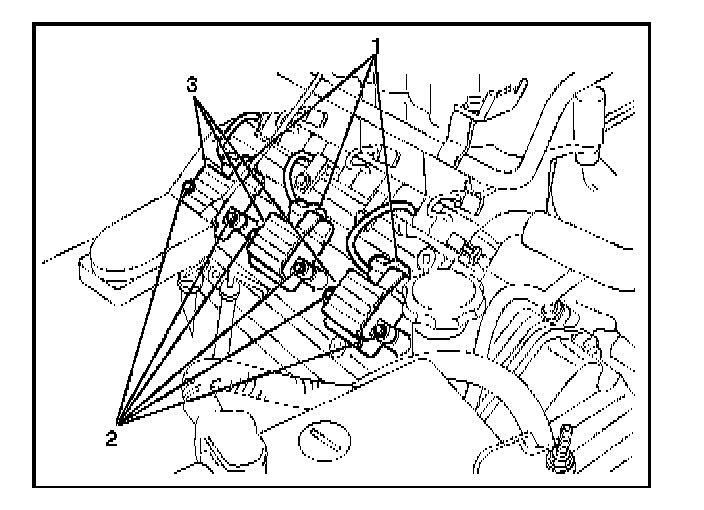

2. Remove ignition coil connector and ignition coil.
- Disconnect the connector from ignition coil.
- Remove harness bracket bolt on cylinder head covers.
- Remove fixing bolts on ignition coil.

INSTALLATION

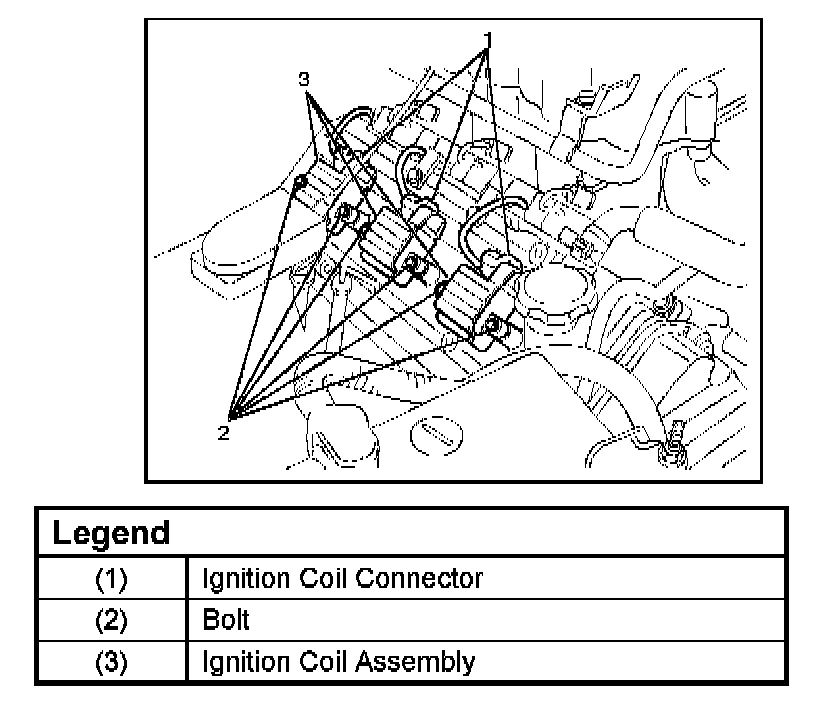

1. Install the ignition coil assembly (3).

Connect ignition coil connector (1) and ignition coil (3), then tighten bolt (2) to the specified torque.

Torque: 4 N.m (35 lb. in.)

2. Connect battery ground cable.
