Ignition Coil: Testing and Inspection

Check the ignition coil assembly for insulation. Check terminals for corrosion or damage, and replace as necessary.

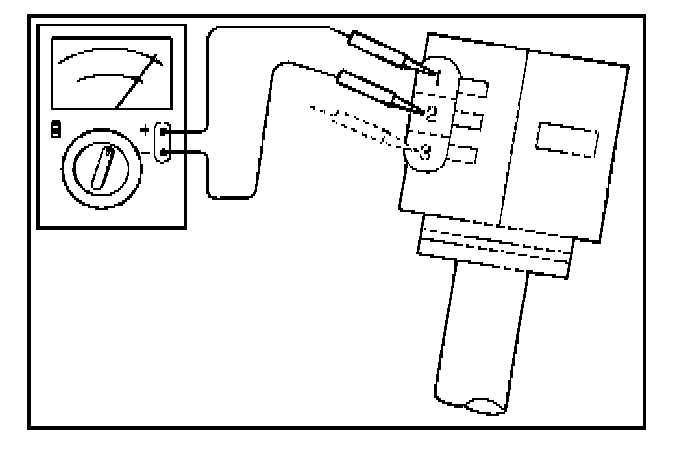

Measuring resistance of ignition coil assembly.

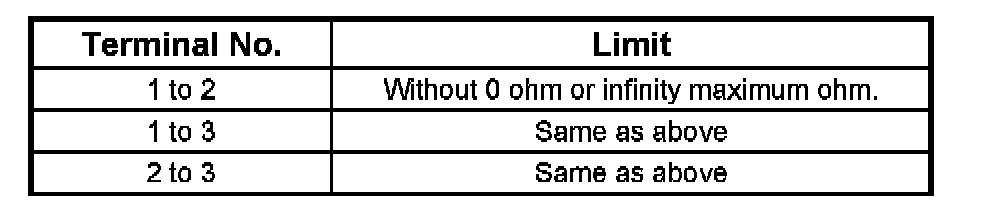

Measure resistance of ignition coil assembly, and replace the ignition coil assembly if its value exceeds the standard.
