Powertrain Management: Locations
Engine Controls Index (1 Of 2):
Engine Controls Index (2 Of 2):

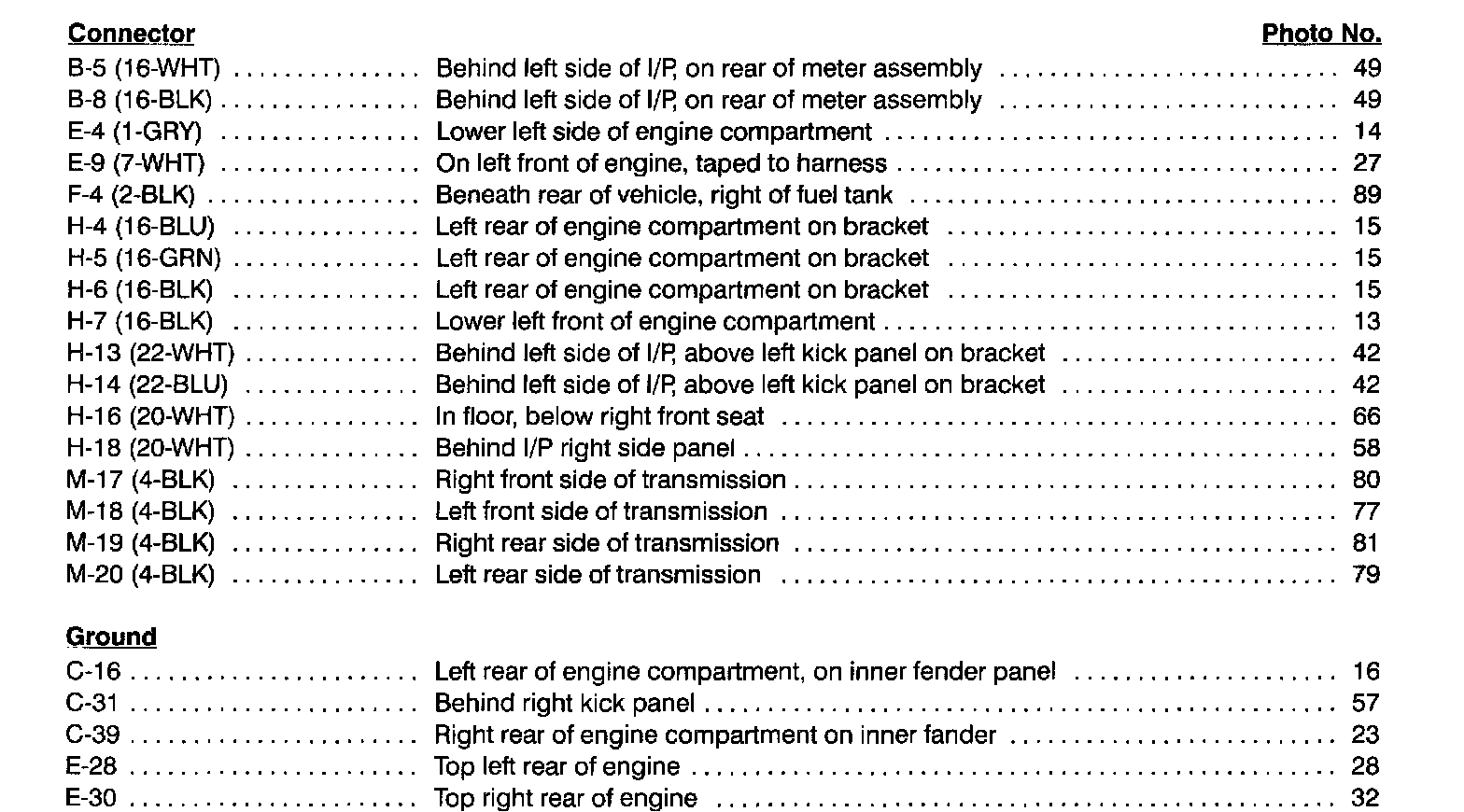

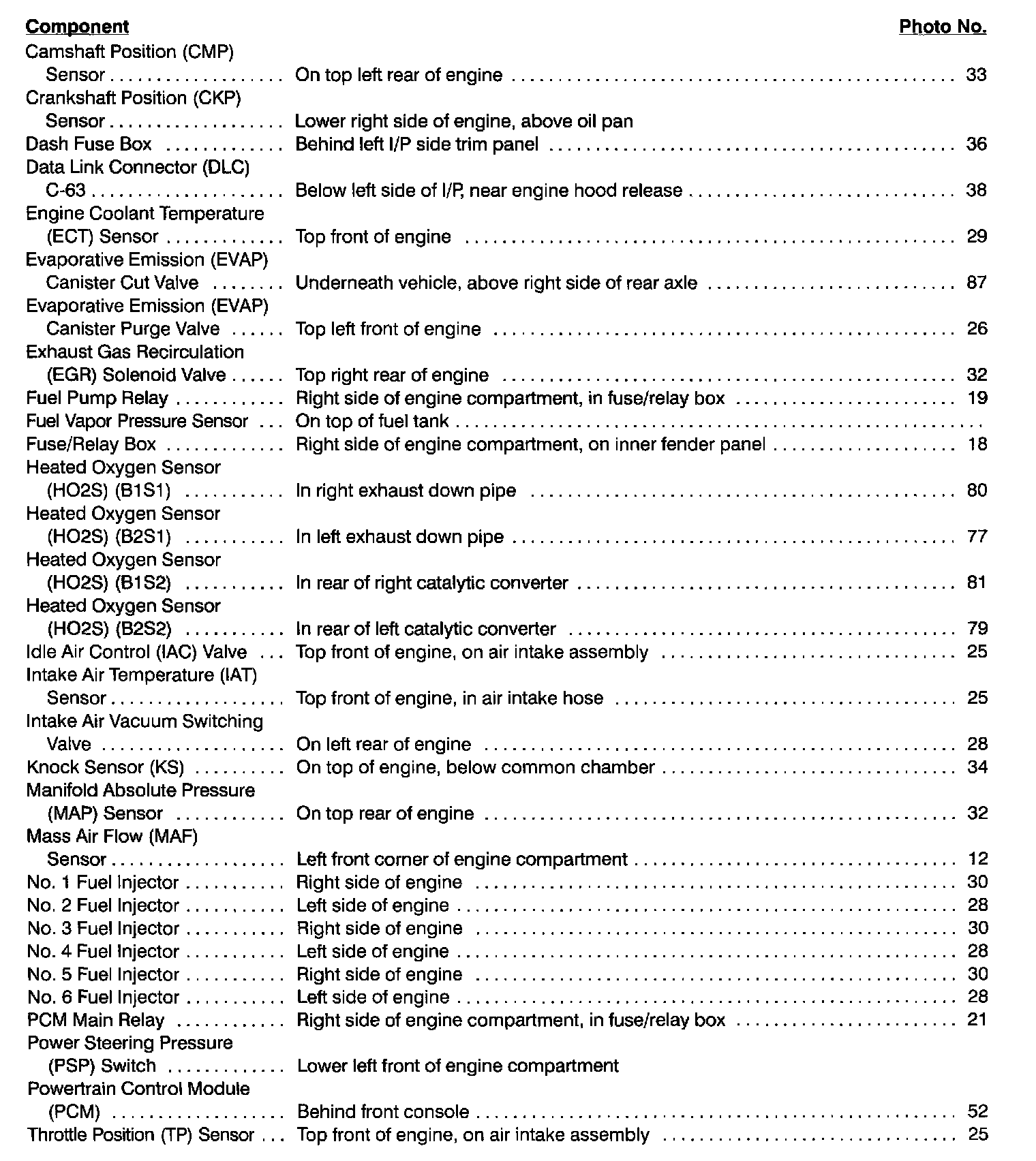

Component Location Index photographs can be found at Component Locations.
Locations
