Control Module: Service and Repair

REMOVAL
1. Disconnect the battery ground cable
2. Remove the passenger seat.
3. Disconnect the connector from the ECU.
4. Remove the set bolts and detach the ECU from the bracket.

INSTALLATION
Perform the removal steps in reverse order.

INSPECTION

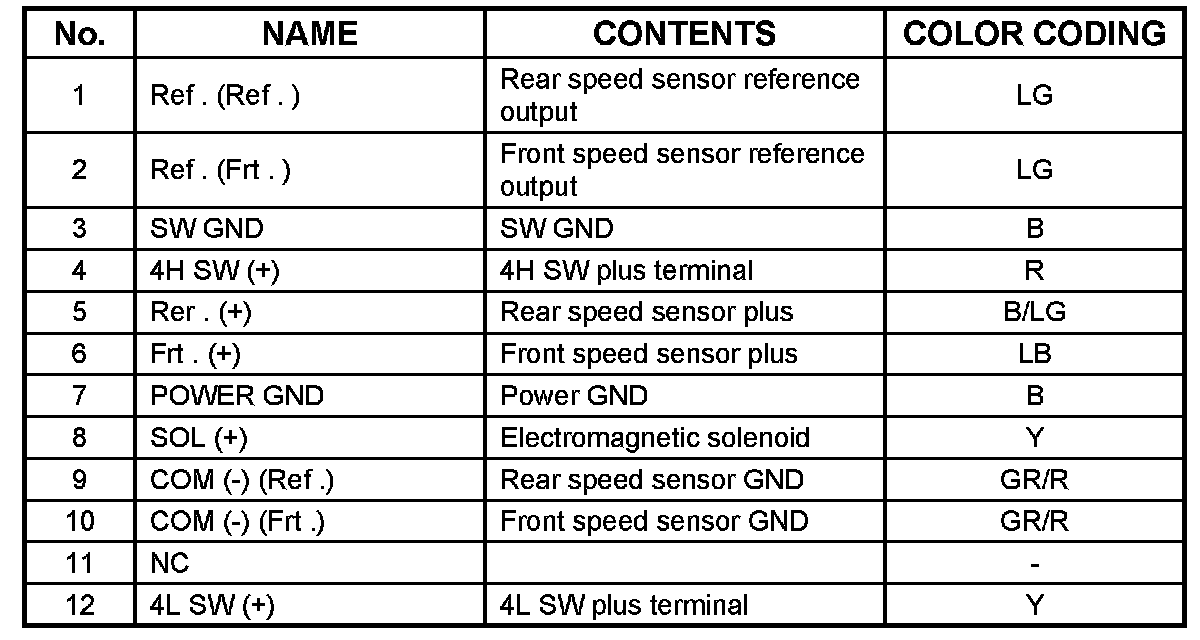

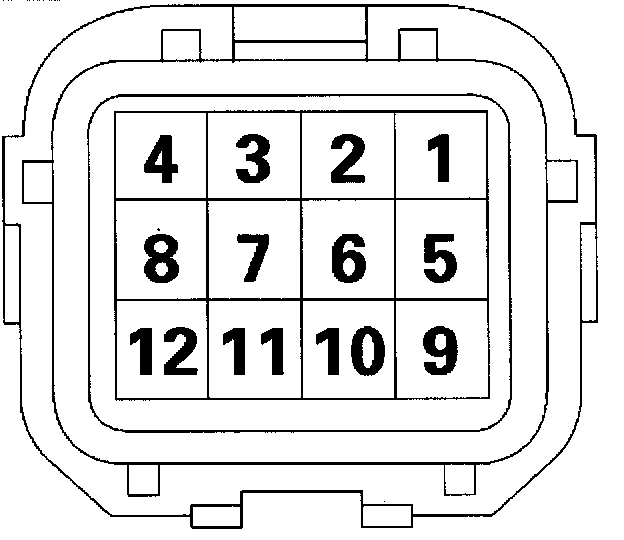

Before disassembling and after assembling, check the following items on the transfer connector terminals.
