Wiper Relay: Service and Repair
INTERMITTENT RELAYREMOVAL 1.
Disconnect the battery ground cable.
2.

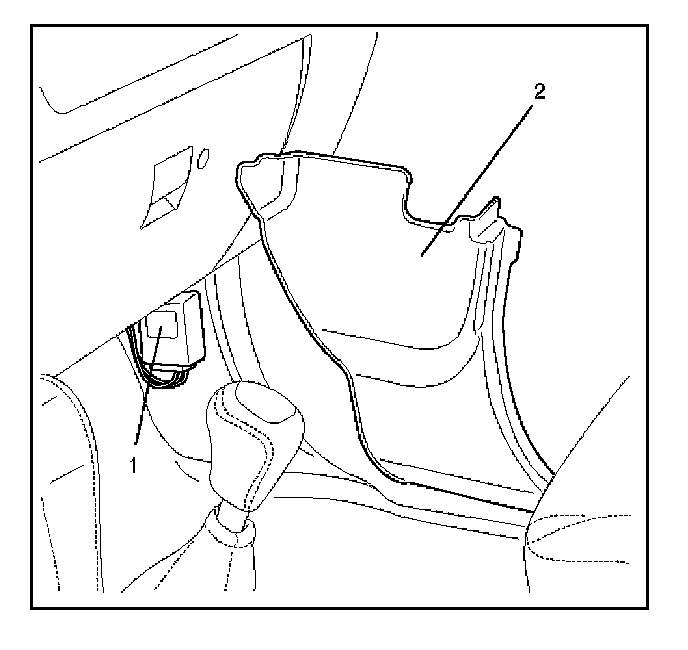

Remove the dash side trim panel (RH) (2).
3.
Disconnect the connector.
4.
Remove a fixing nut to remove the intermittent relay (1).
INSTALLATIONTo install, follow the removal steps in the reverse order.
