Antenna: Service and Repair

Rod Type Antenna

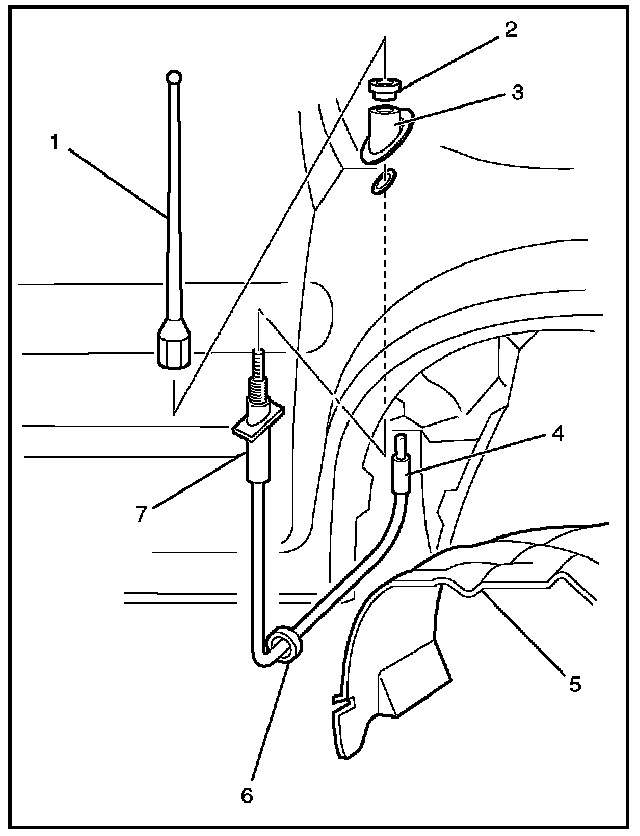

Removal

1. Disconnect the battery ground cable.




2. Turn the antenna rod (1) counterclockwise to remove it.
3. Remove three screws and nine clips to remove the fender inner liner (5).
4. Disconnect the feeder cable connector (4) at the inside of the vehicle.
5. Turning the lock nut (2) counterclockwise removes it together with the base mold (3).
6. Pull down and remove the housing (7) from the panel.
7. Pull and remove the cable with the grommet (6).

Installation

To install, follow the removal steps in the reverse order.
