Heating and Air Conditioning: Locations

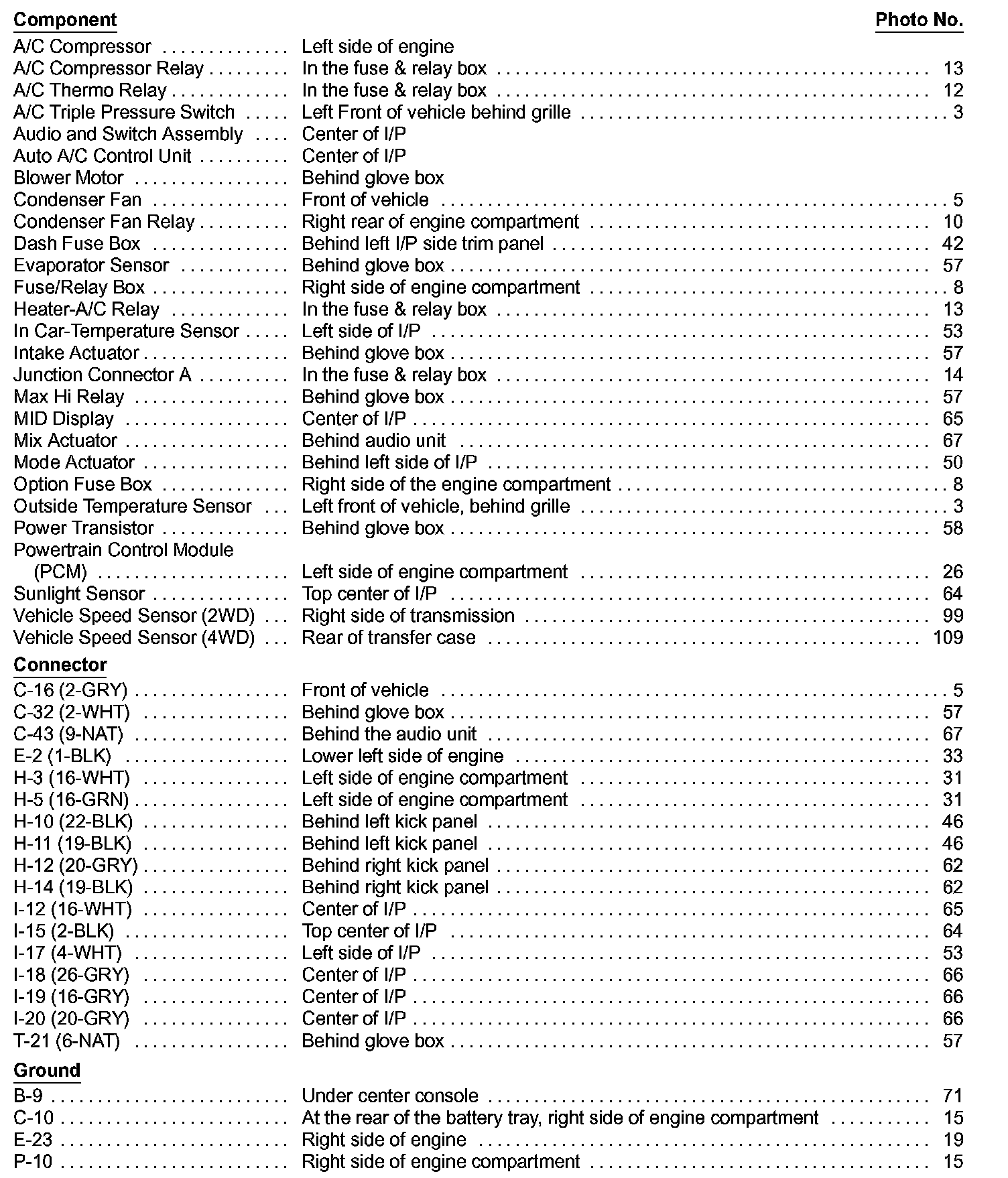

Automatic A/C Component Location Index Image 65-6:
12. Fuse/Relay Box (Cover Removed):
Component Location Index photographs can be found at Diagnosis and Repair/Location/Components
Component Locations
