Performance Checklist For Automatic Air Conditioner

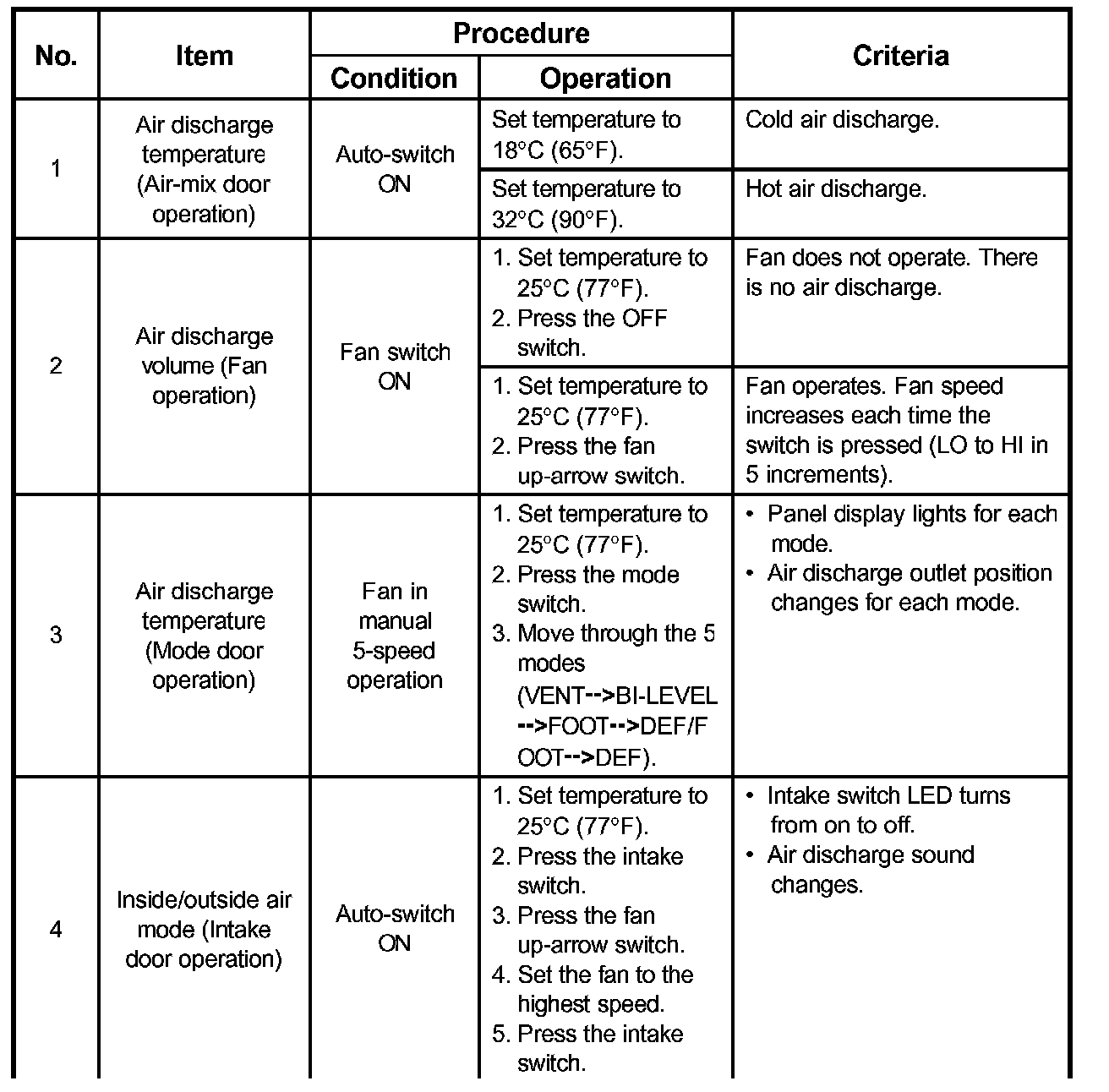

Performance Check Using The Manual Switch - Steps 1 - 4:

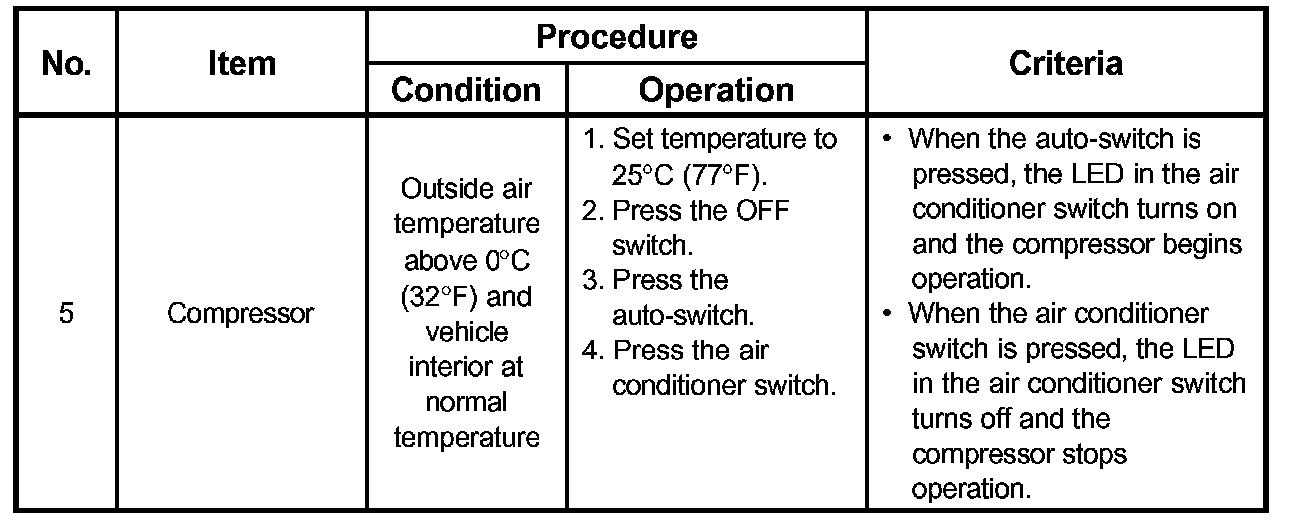

Performance Check Using The Manual Switch - Step 5:

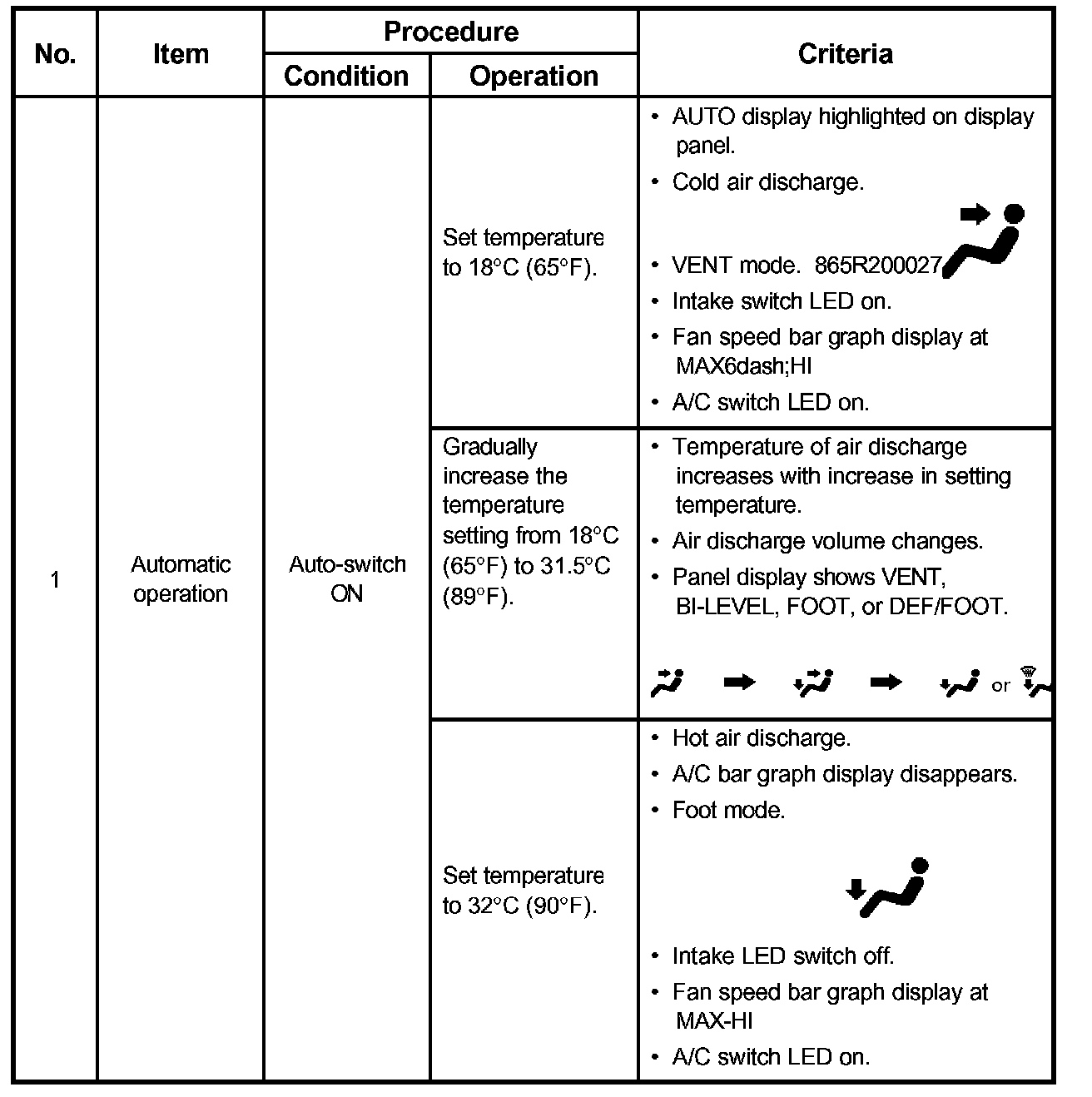

Check Of Auto Function:

Start the engine, and when the engine coolant reached 50 °C (122 °F) check performance and movement of the related parts according the following checklist.
