Transfer Case

Transfer Case
General Specification
Type
Electronically controlled torque split four wheel drive with two wheel drive.
2WD: Rear two wheel drive
TOD: Electronically controlled torque split four wheel drive.
4L: Low speed mechanical lockup four wheel drive.
Rear drive: Direct drive
Front drive: Chain drive
Low range deceleration: Planetary gear drive
Control system Switch control
Gear ratio High: 1.000
Low: 2.480
Lubrication system Built-in oil pump Forced lubrication
Type of lubricant ATF DEXRON-II or III
Oil capacity 1.35 liters 1.43 US. quart
Clutch discs number 13
Planetary gear teeth number
Sun gear: 58
Pinion gear: 15
Ring gear: 86

Torque Specifications

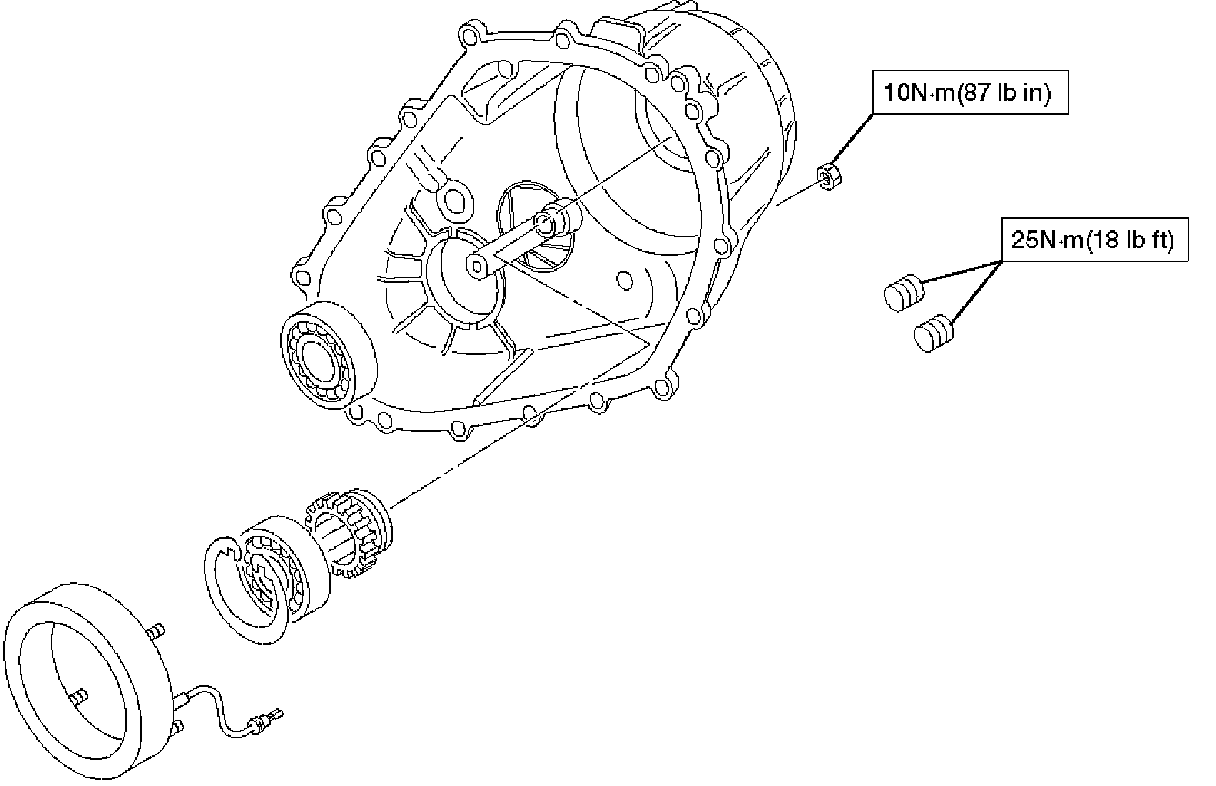

1 of 3

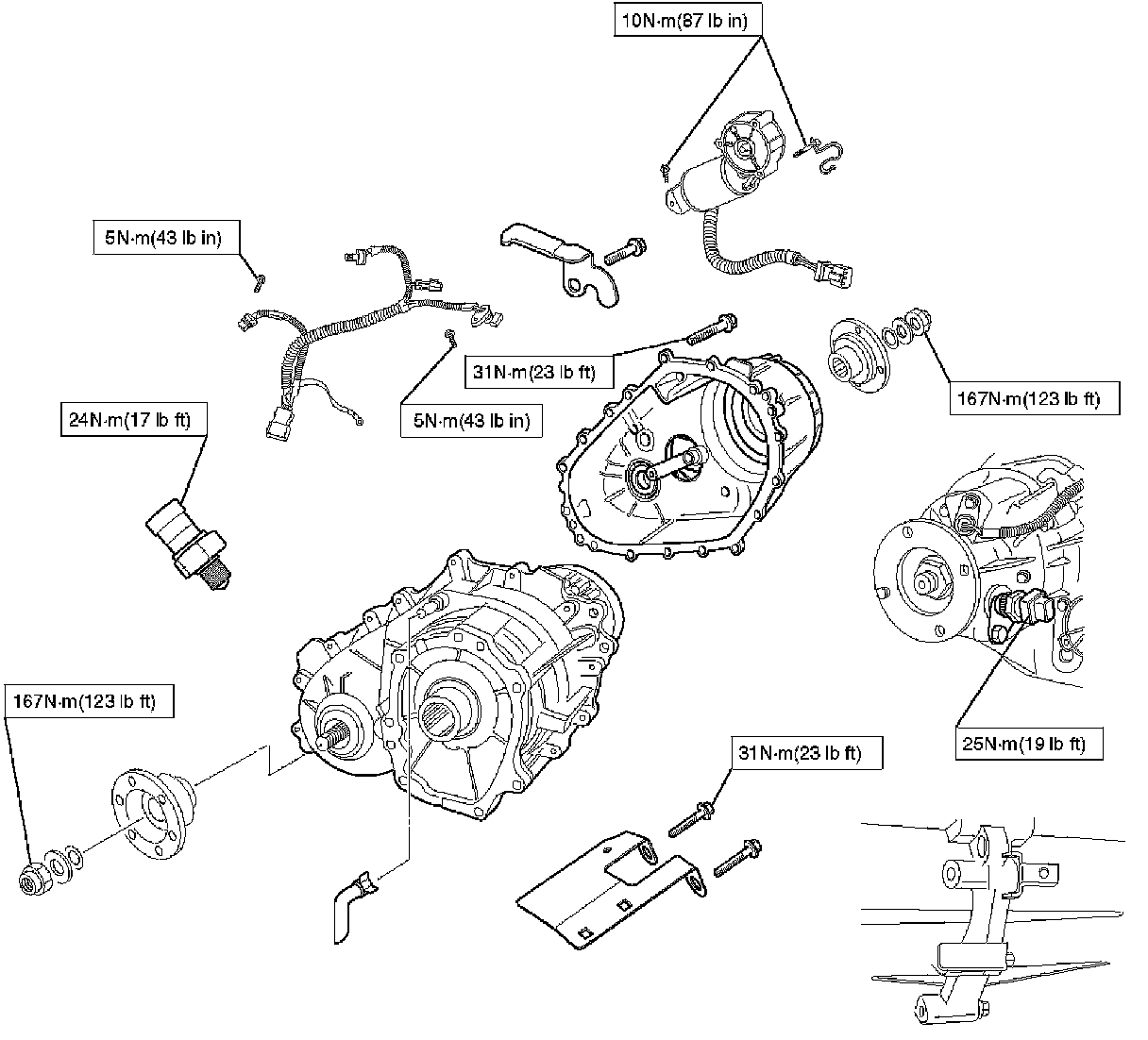

2 of 3

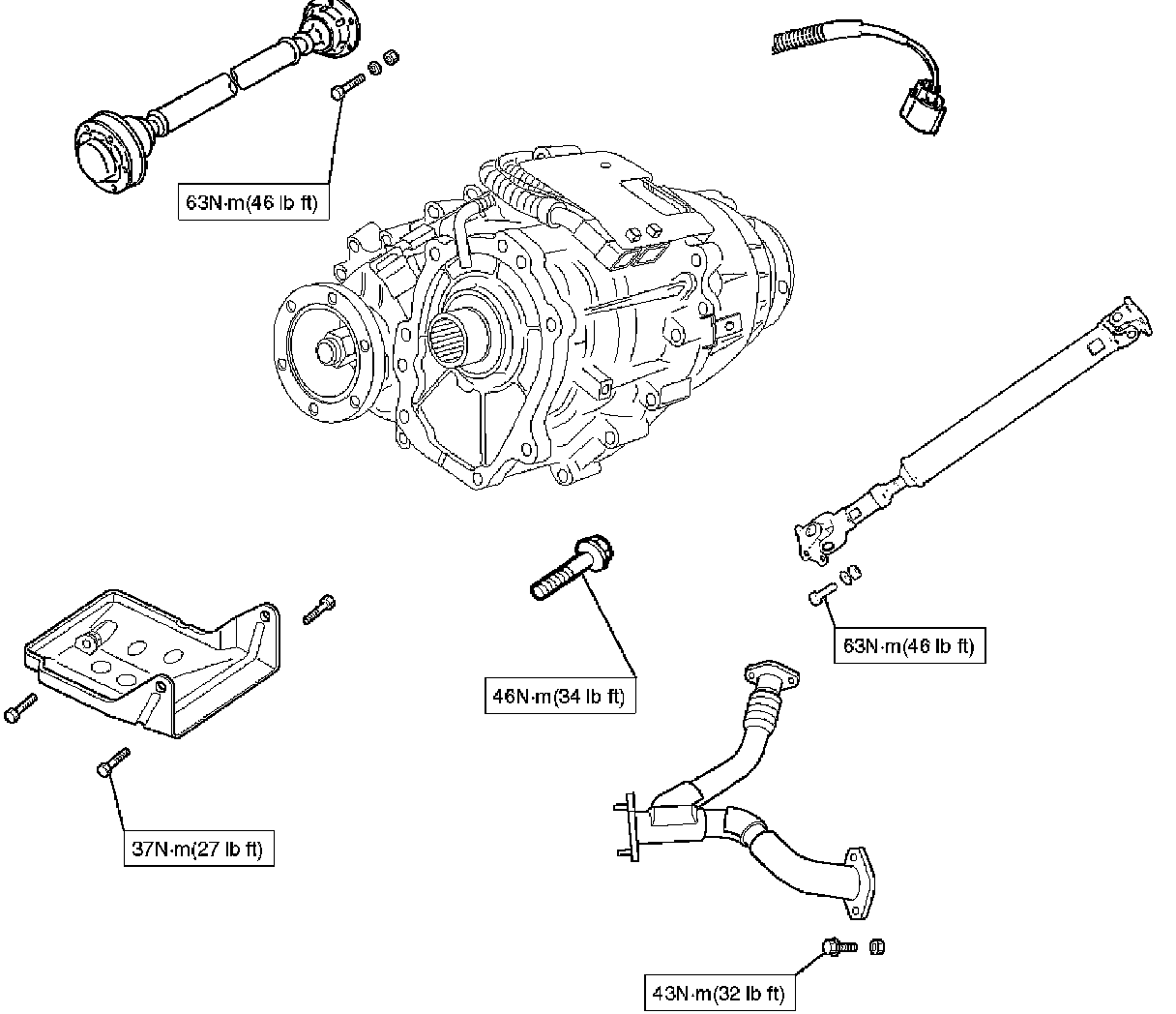

3 of 3
