Functions of Indicator Lamp

Functions of Indicator Lamp

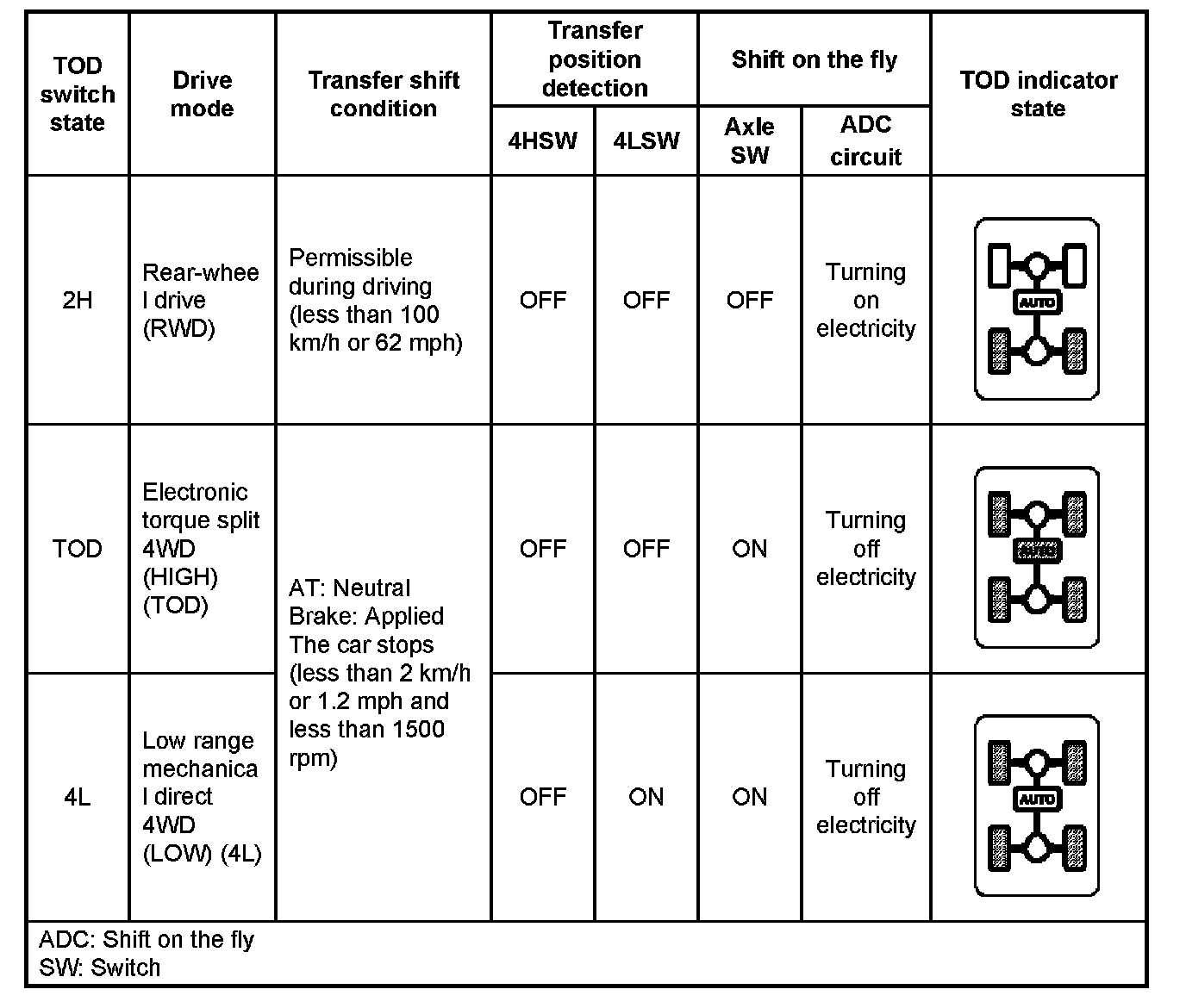

TOD Switch and Indication of Drive Mode

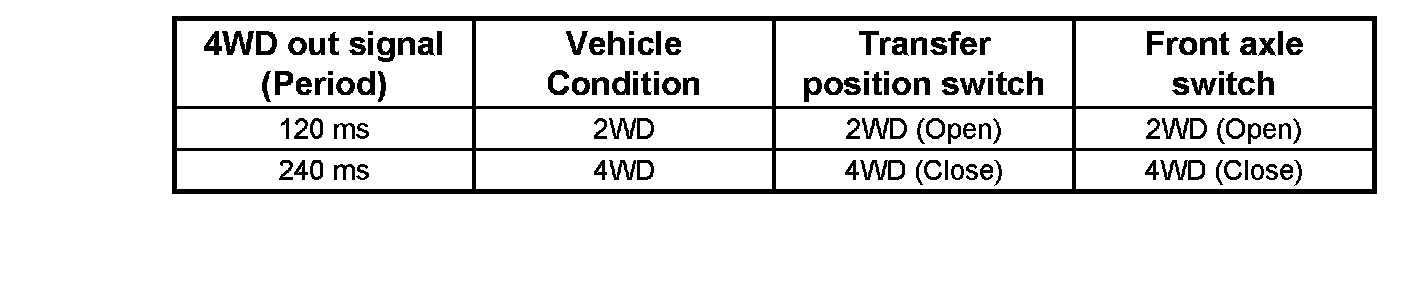

The TOD switch sends signals to the TOD control unit which selects drive modes and controls the shift on the fly system (axle disconnect: ADC).





Bulb check: The bulb of indicator lamp is checked for 2 seconds when ignition key is turned on.

Bulb Check

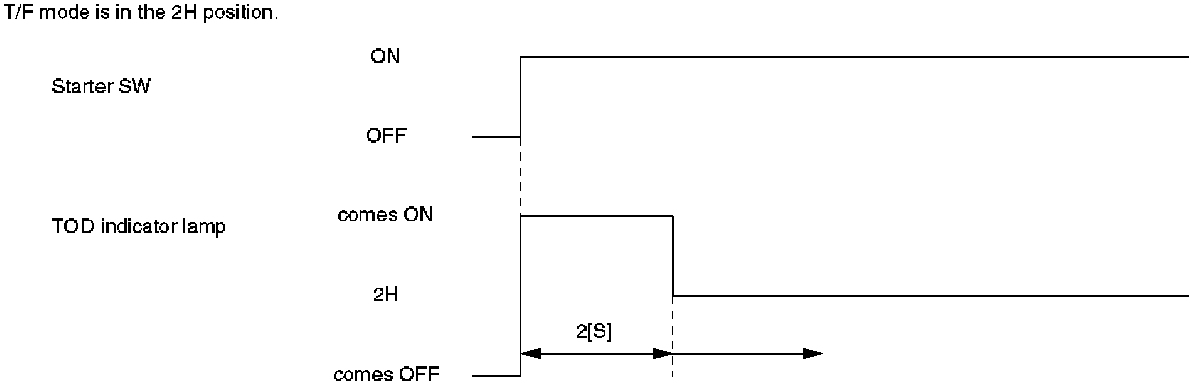

When the starter switch is turned on, the TOD indicator lamps comes on as shown below.





Note: Once the starter switch is turned on, all the TOD indicator lamps are lit for two seconds even if the transfer lever is in any position.
