Compressor HVAC

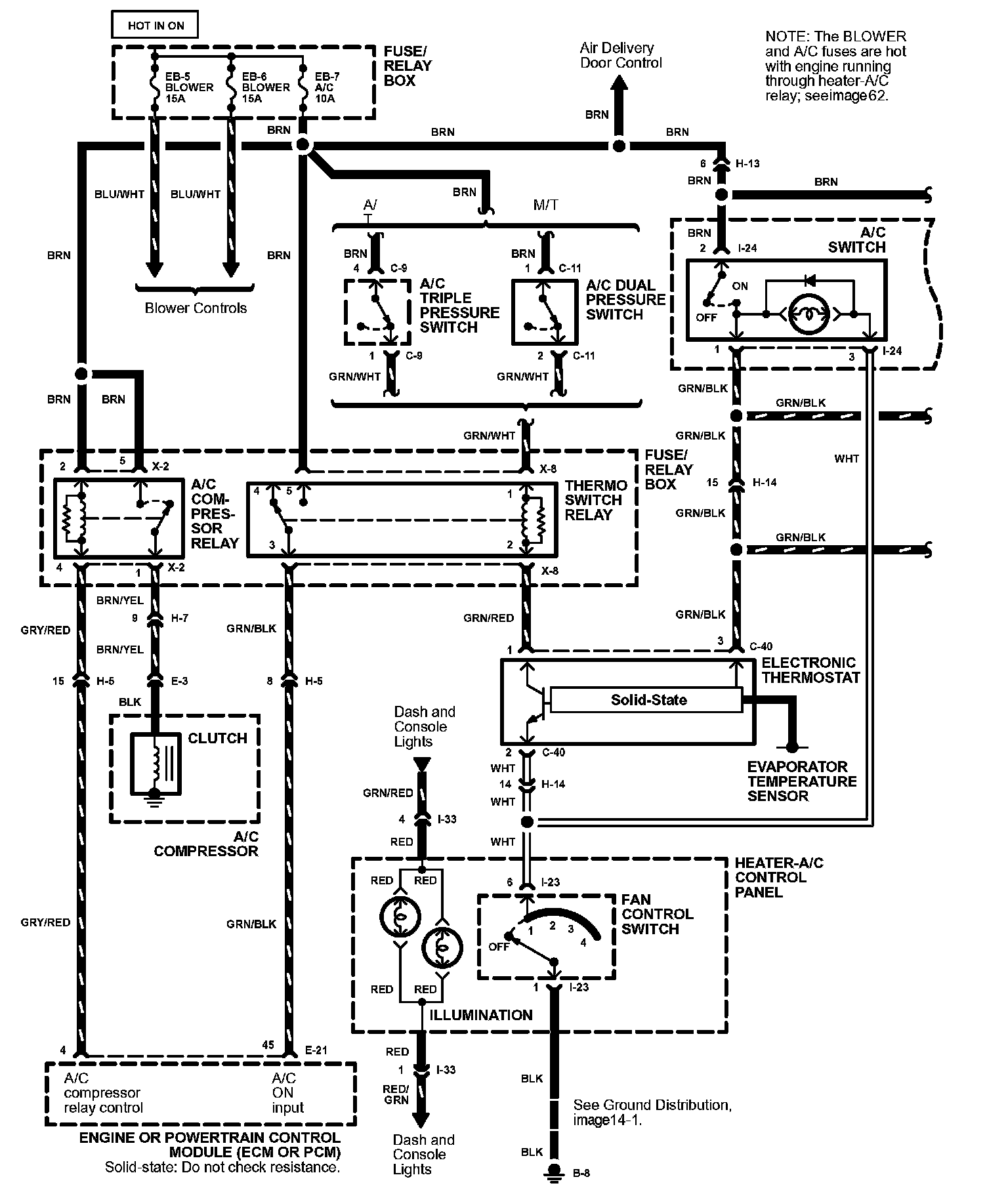

Air Conditioner Compressor Control Image 63-4:



Air Conditioner Compressor Control Image 63-5:
