Home >> Isuzu >> 2002 >> Rodeo LSE 2WD V6-3.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Turn Signals >> System Diagram

System Diagram

TURN, HAZARD, Stop, Back, Up, Horn And A/T Shift Lock:

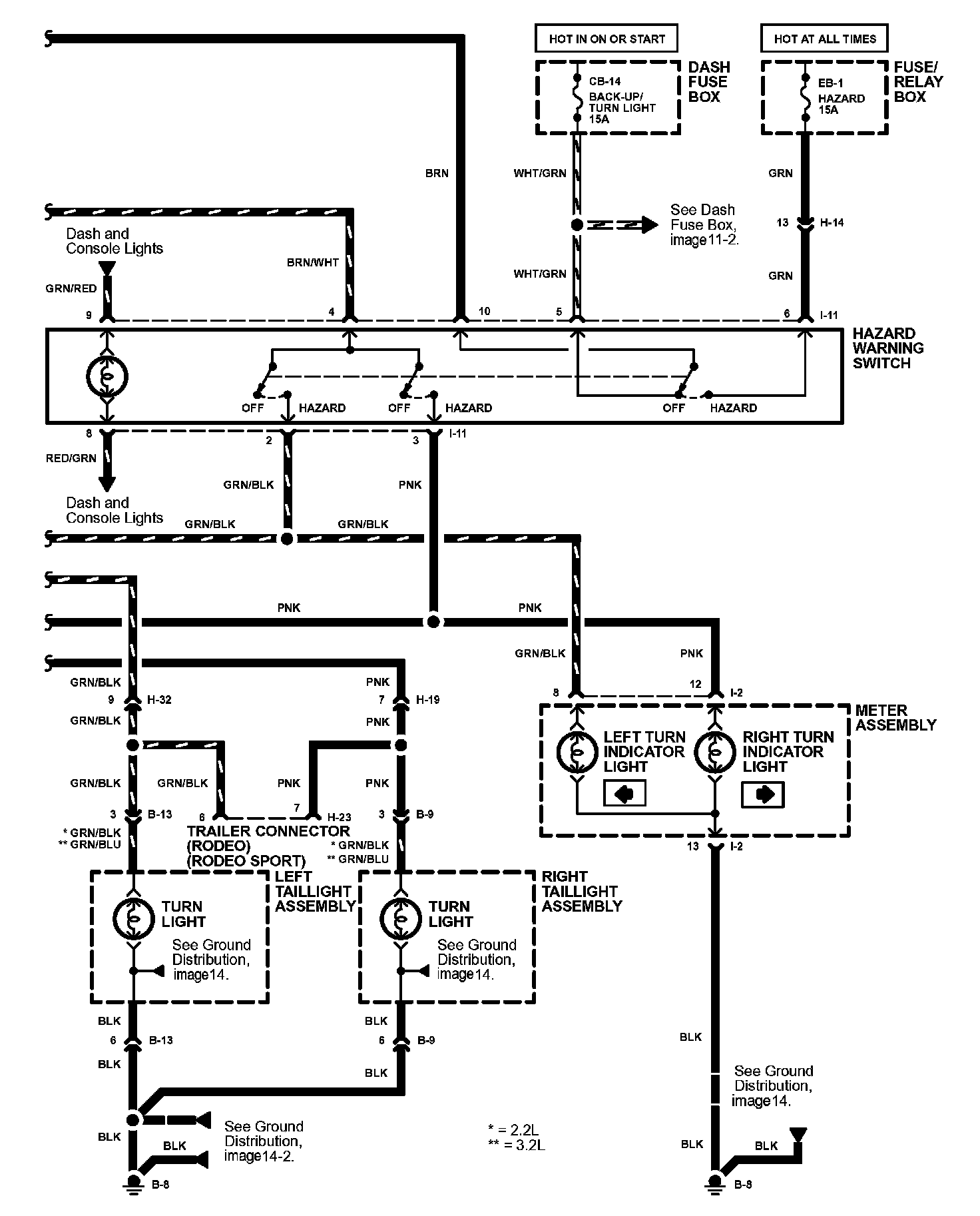

Turn And Hazard Lights Image 110:



Turn And Hazard Lights Image 110-5:
