License Plate Lamp
License Plate Lamp

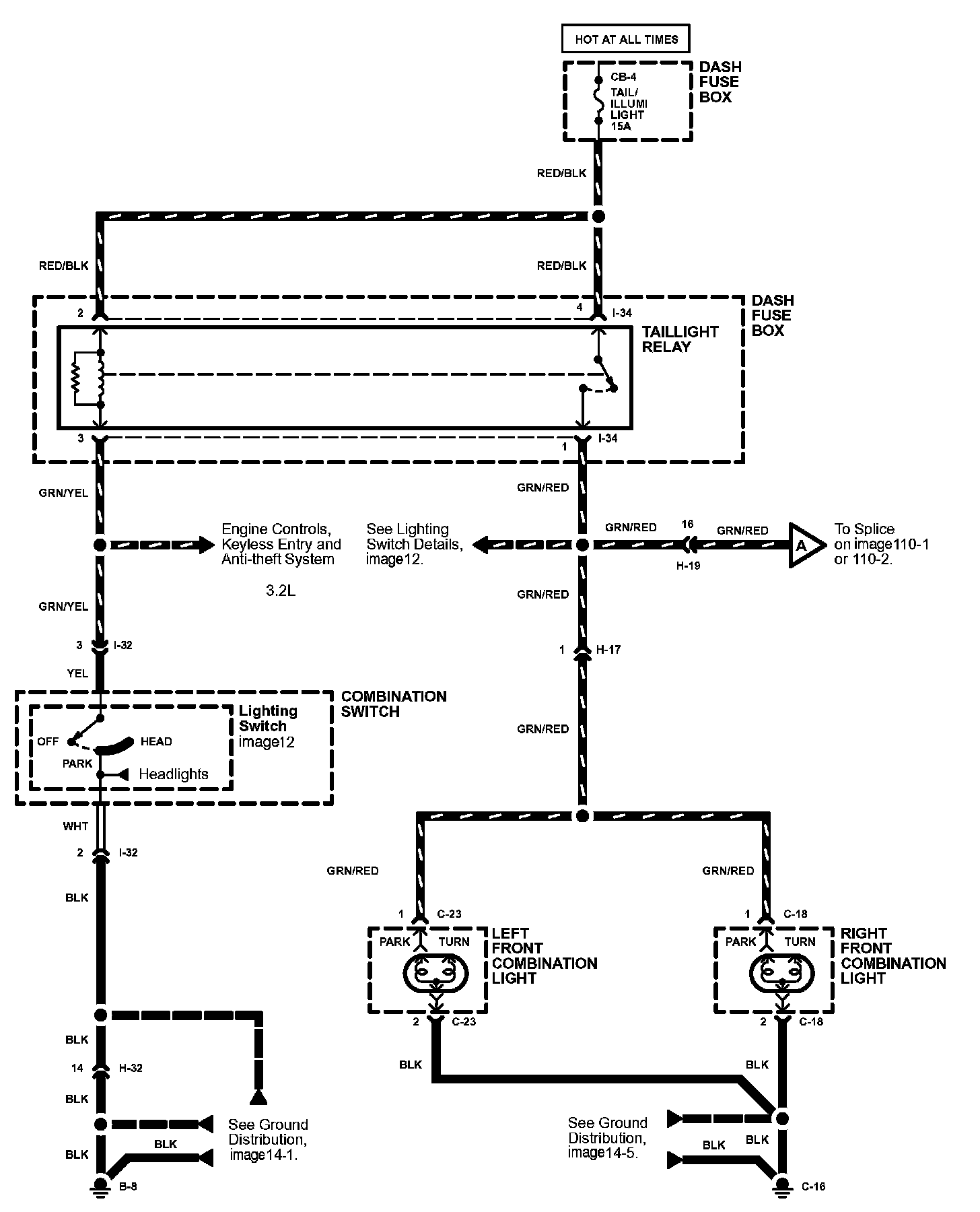

Park, Tail, And License Lights Image 110:

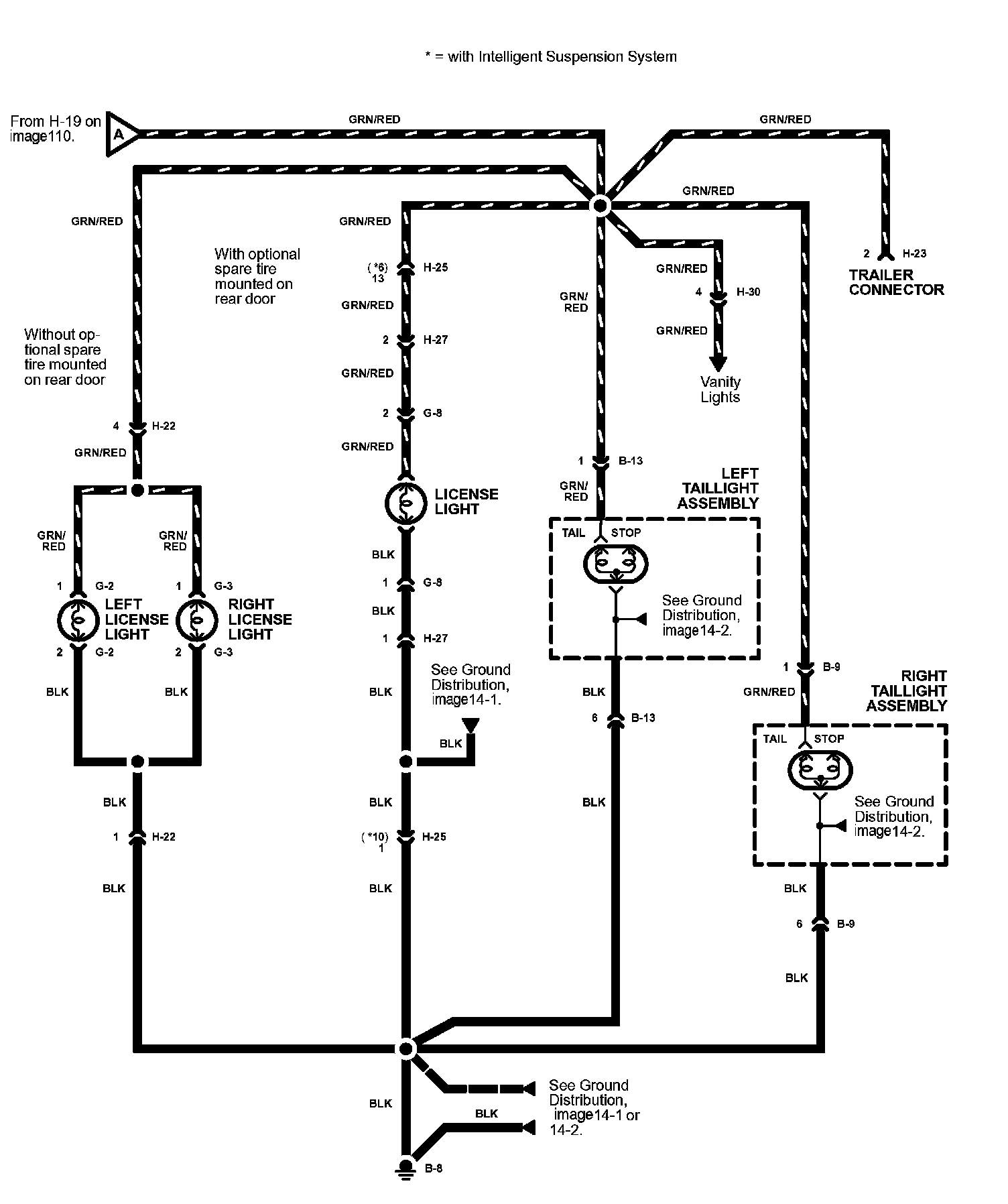

Park, Tail, And License Lights - Rodeo Image 110-1:

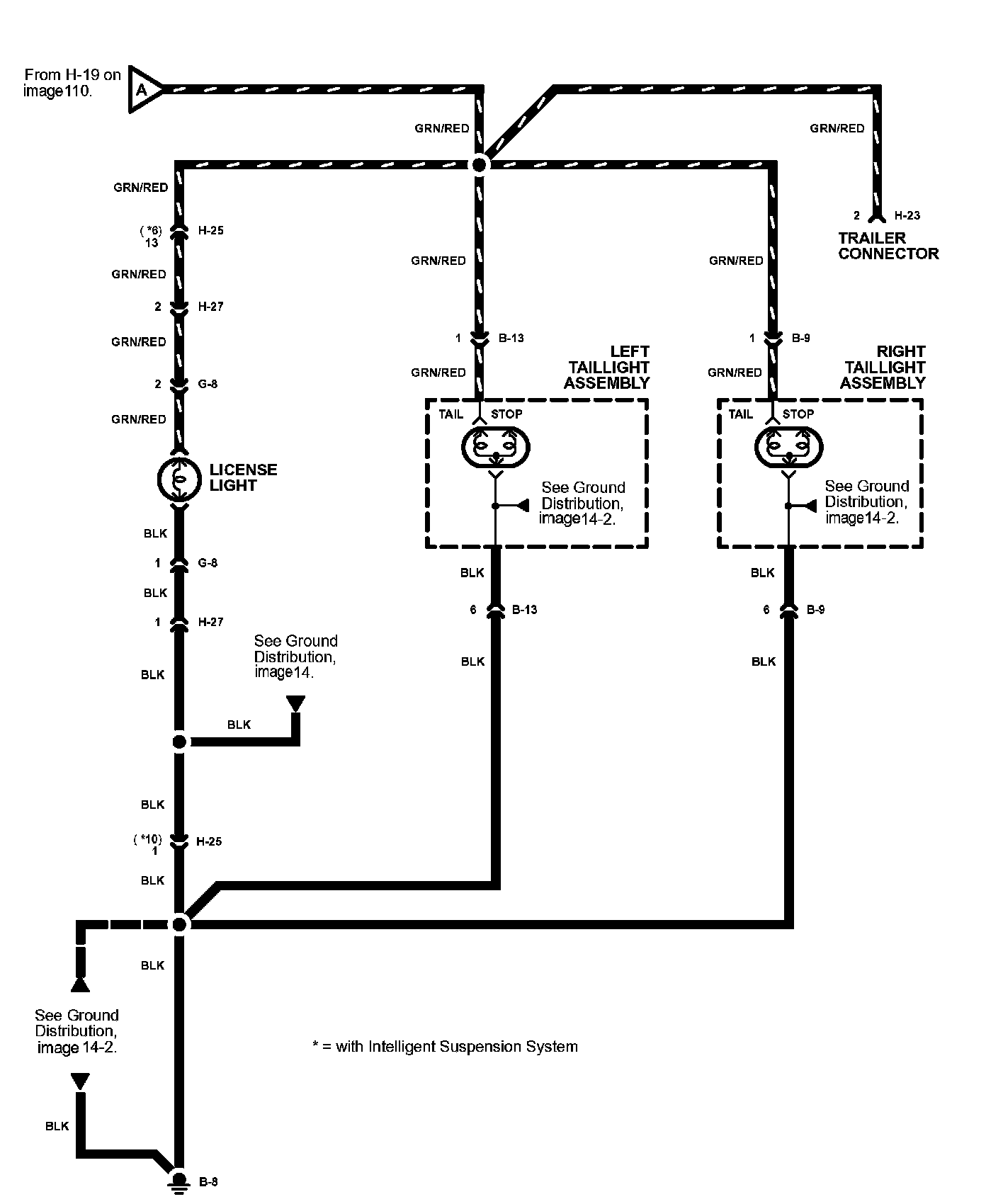

Park, Tail, And License Lights - Rodeo Sport Image 110-2:
