Electrical Diagrams

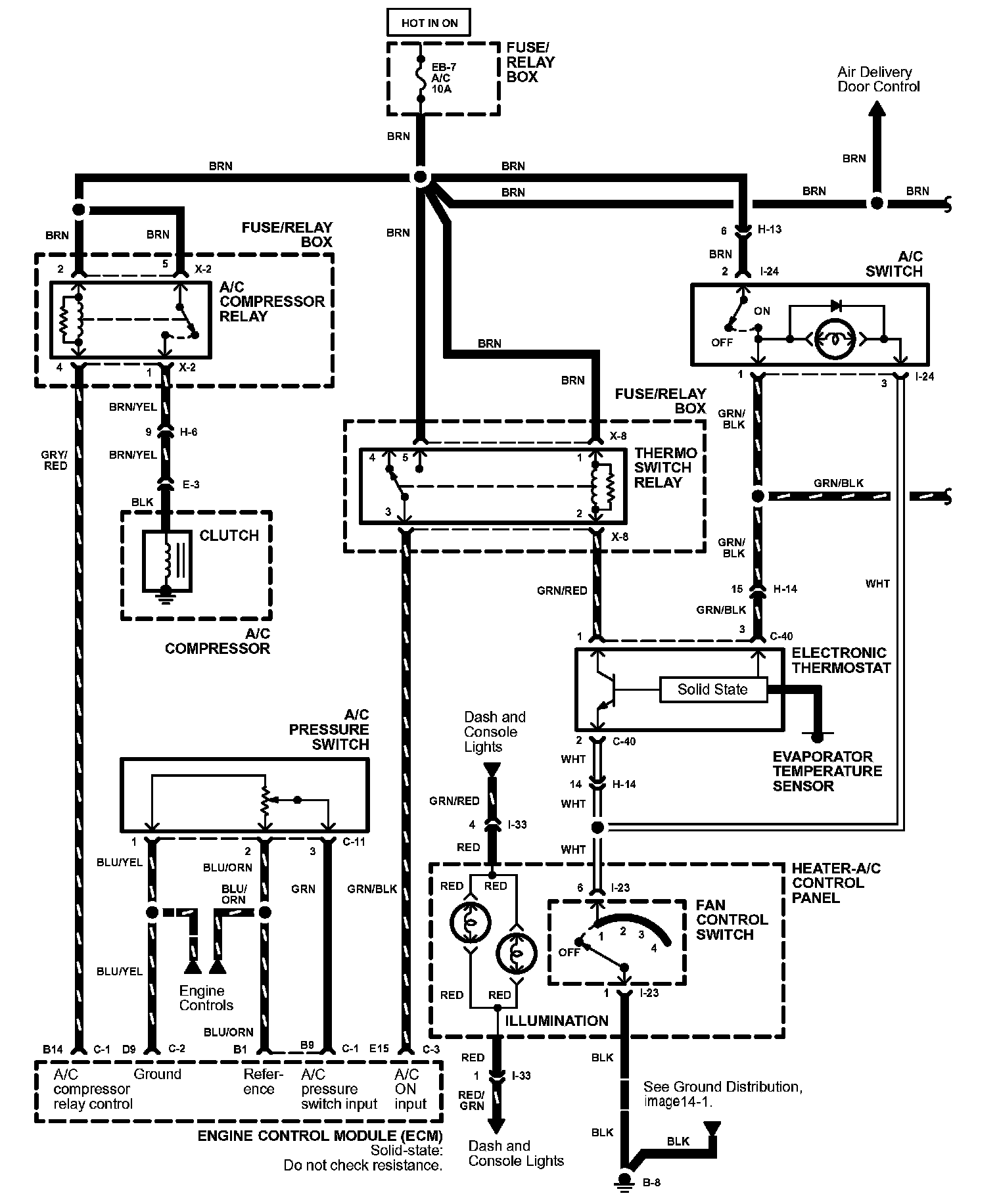

Air Conditioner Compressor Control A/T Image 63-1:

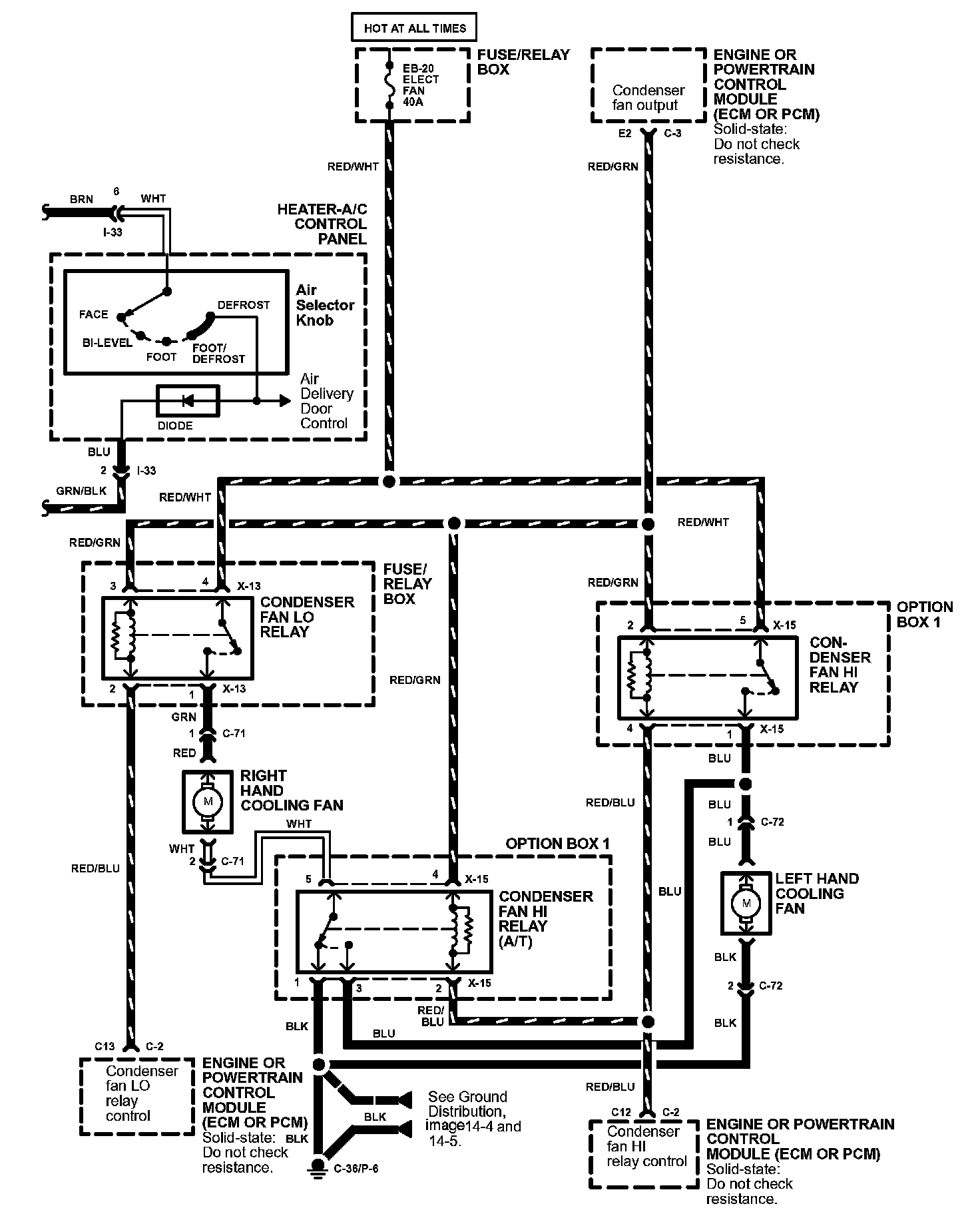

Air Conditioner Compressor Control M/T Image 63-2:

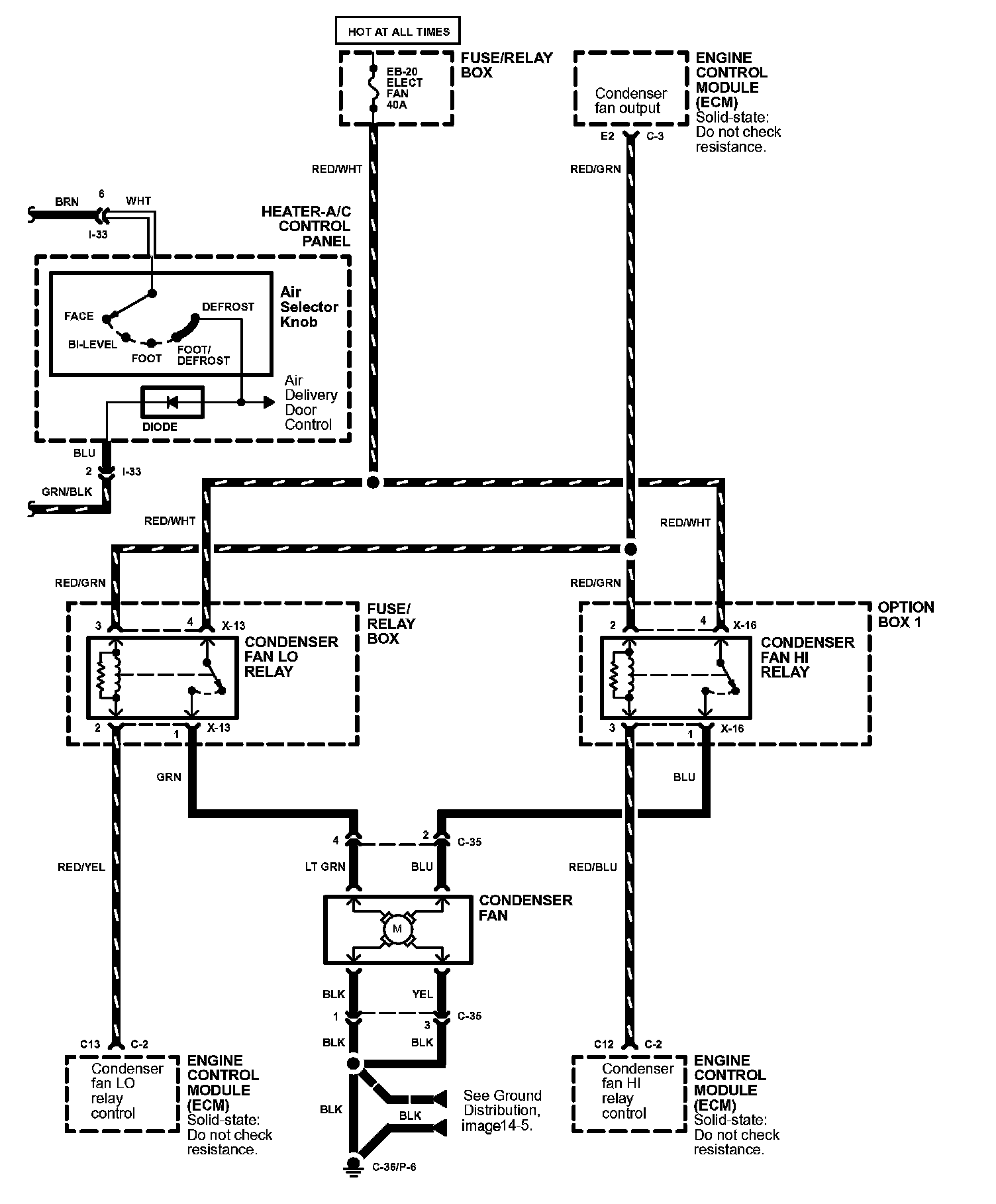

Air Conditioner Compressor Control M/T Image 63-3:
