Electrical Diagrams

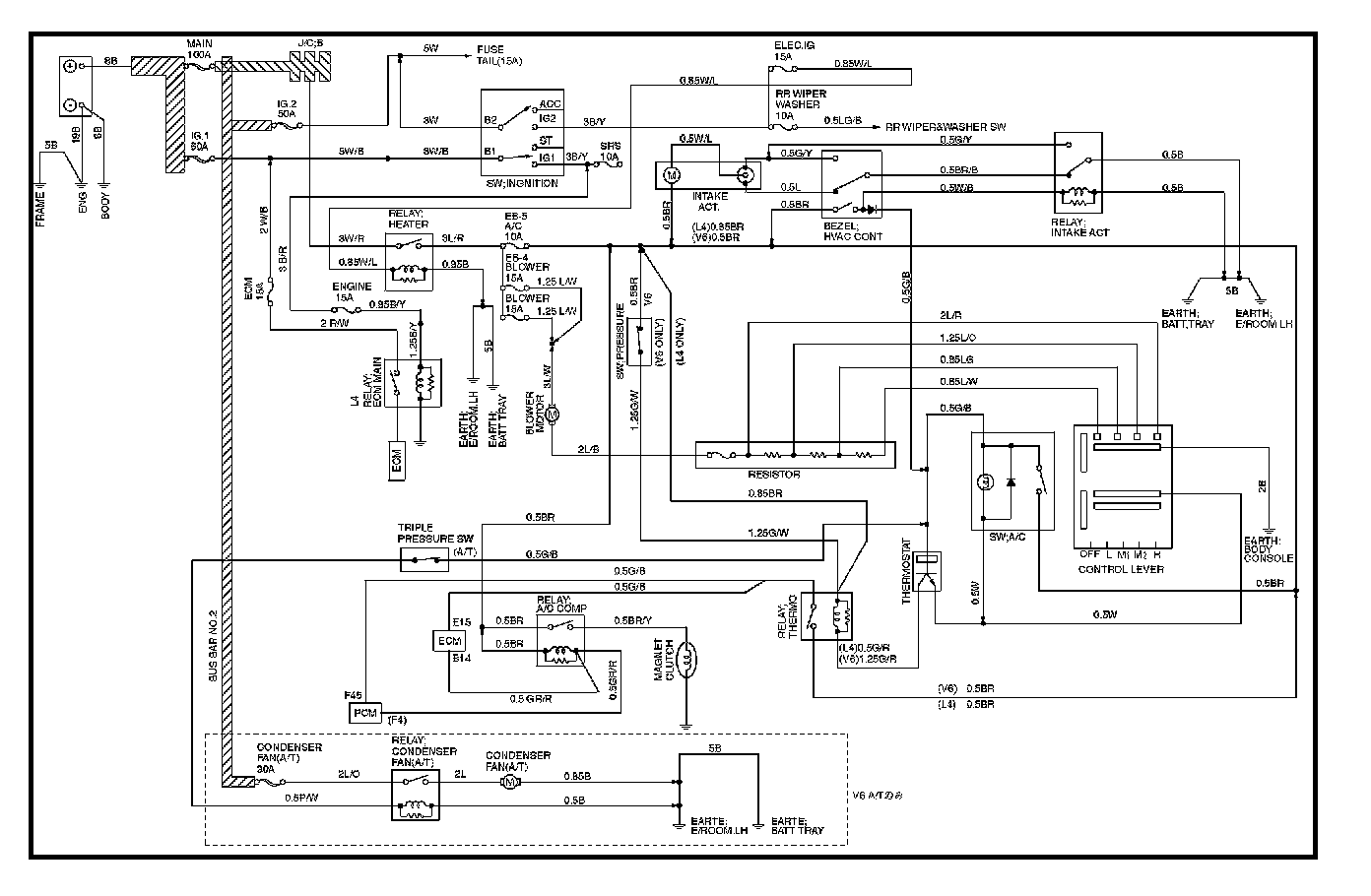

Wiring Diagram:

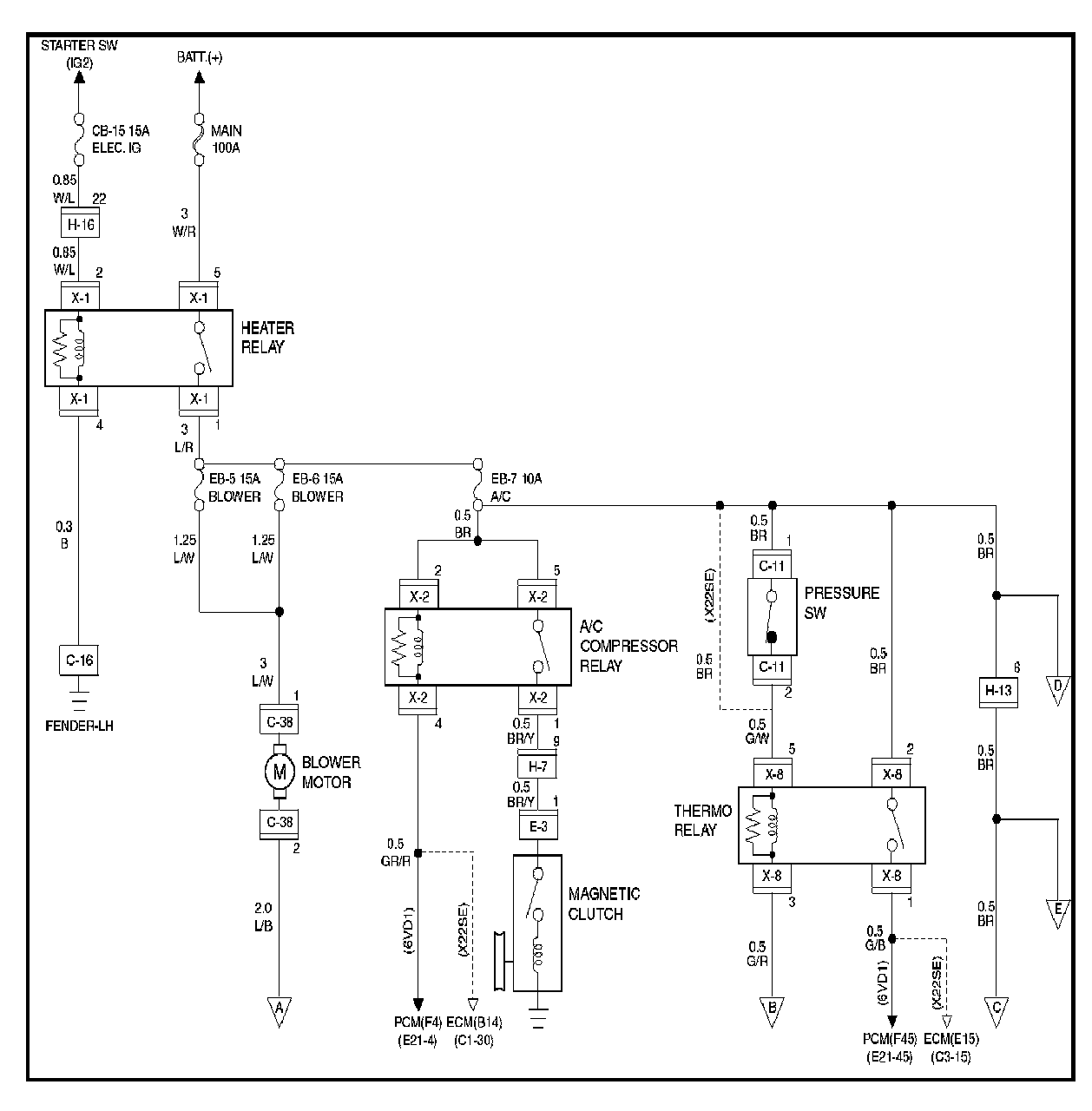

Wiring Diagram - Part 1:

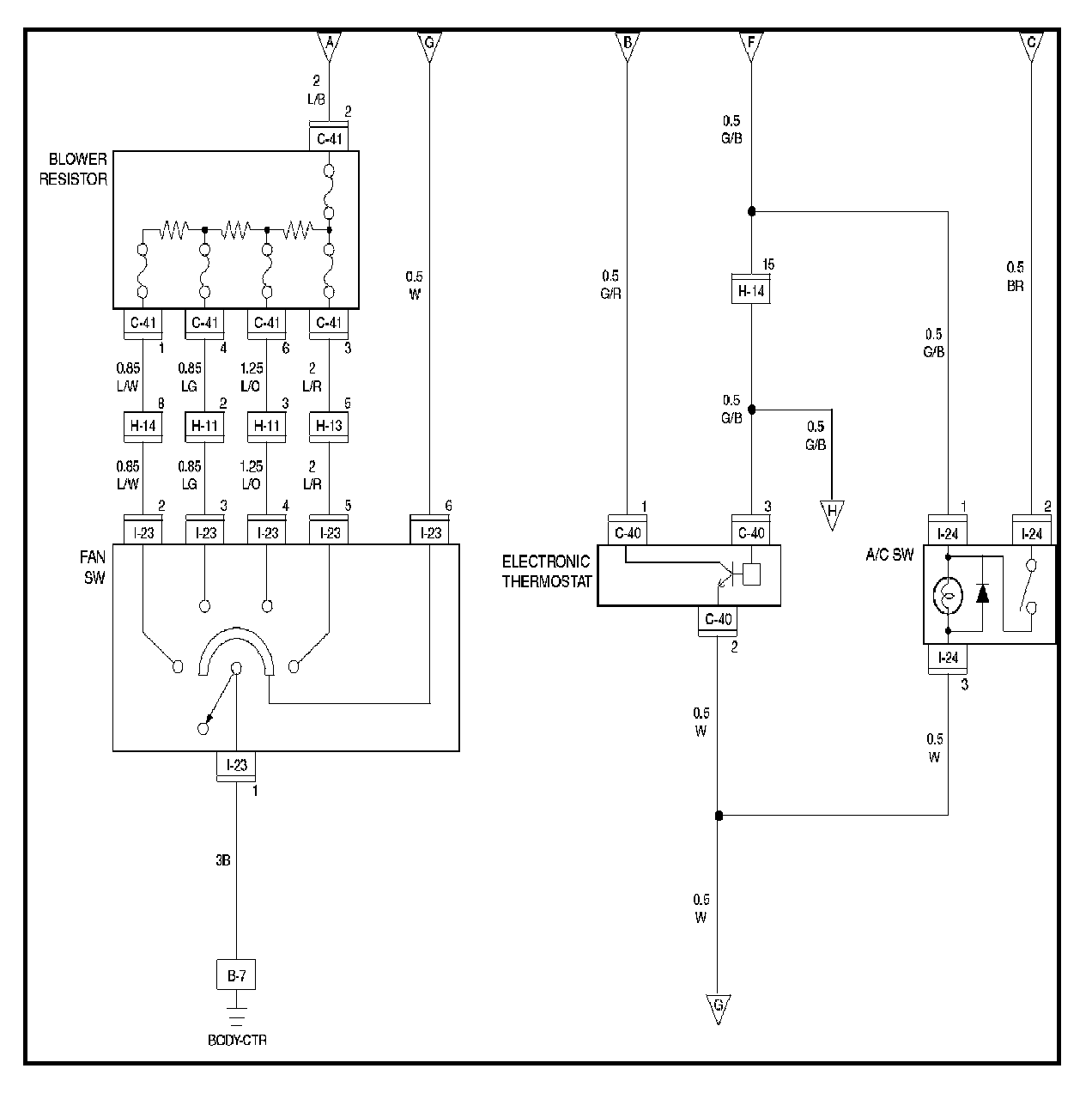

Wiring Diagram - Part 2:

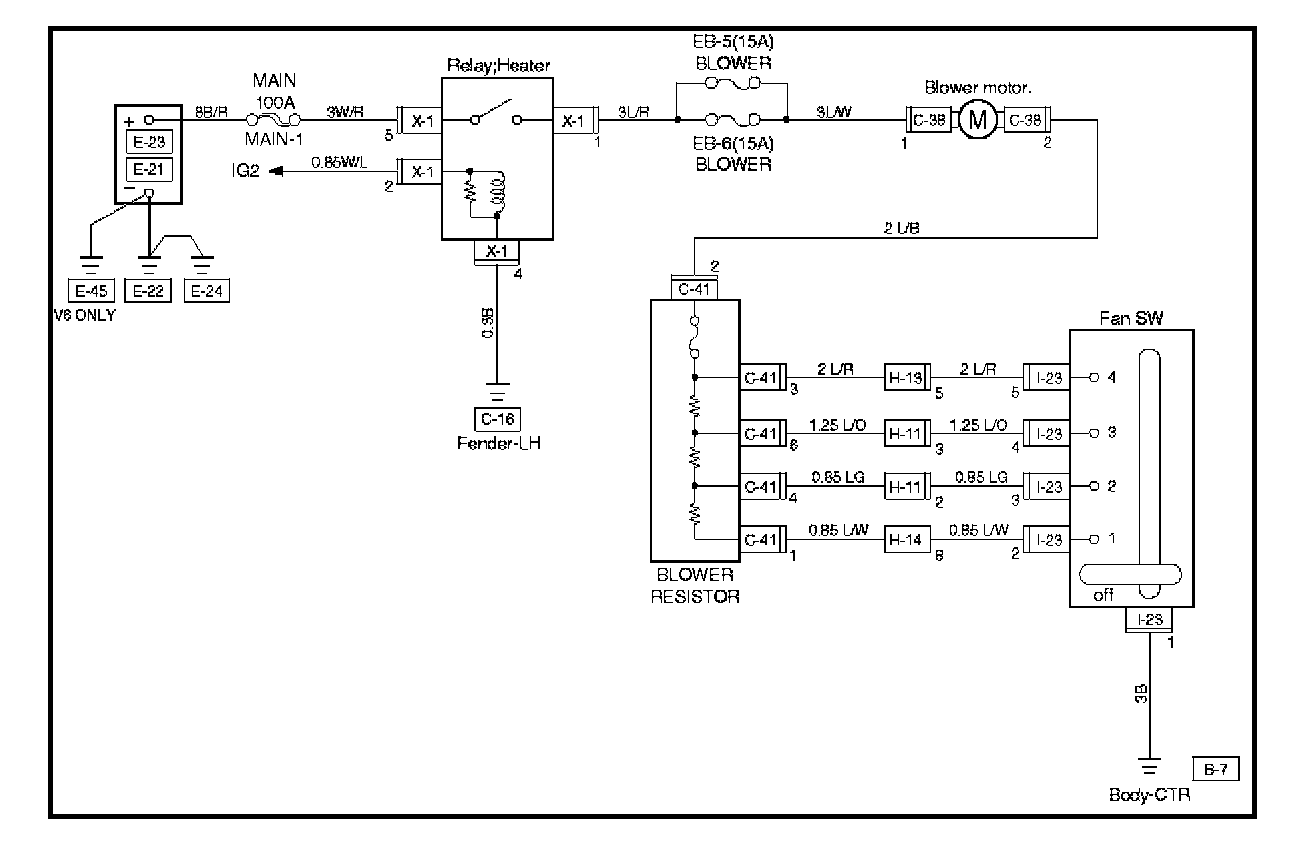

Wiring Diagram - Part 3:

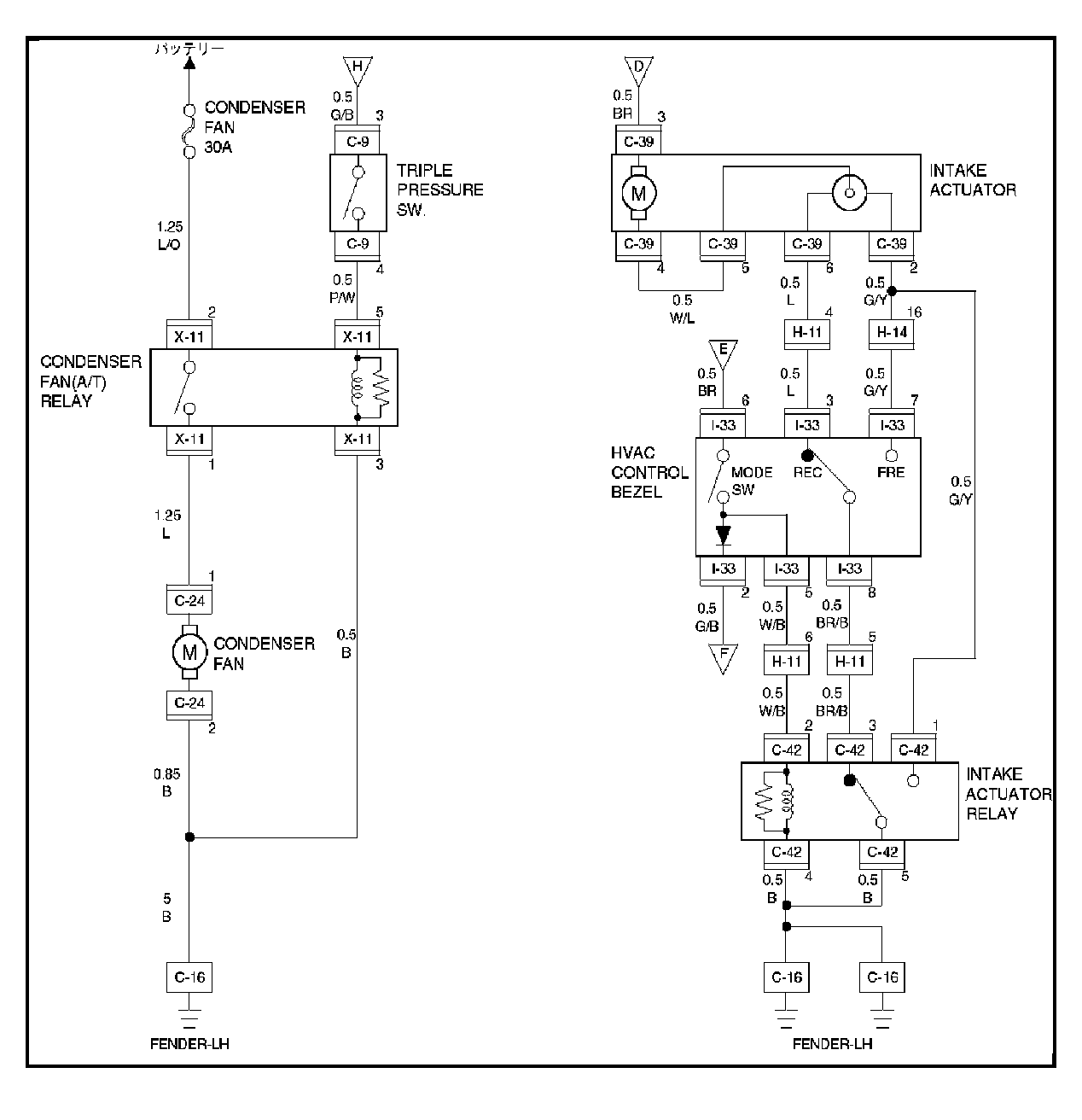

Air Conditioning:
