Home >> Isuzu >> 2002 >> Rodeo S 2WD L4-2.2L >> Repair and Diagnosis >> Locations >> Component Locations >> Component List >> Shift on the Fly

Shift on the Fly

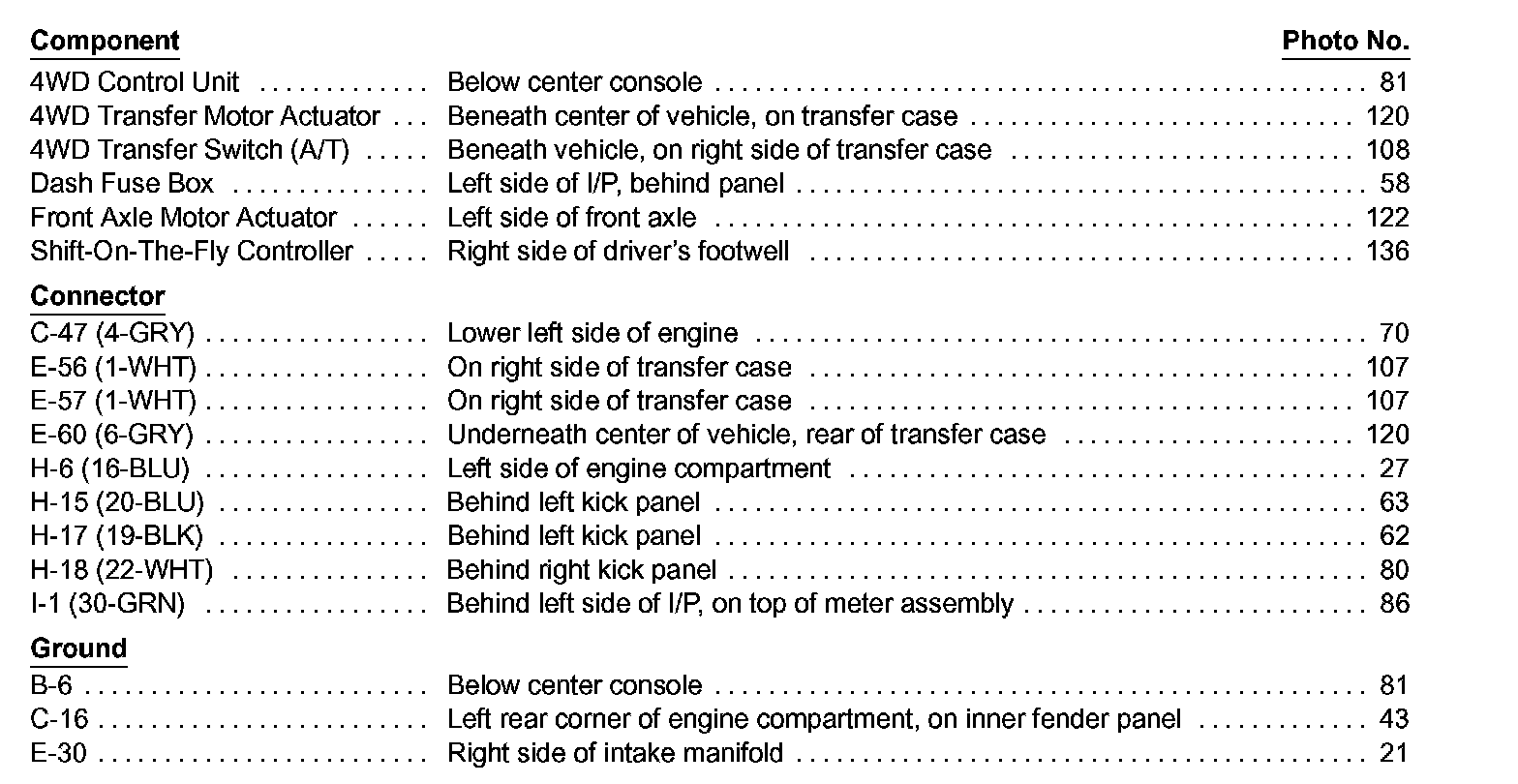

Shift-On-The-Fly System Index Image 36-3:
