ECM/PCM Circuit Diagrams

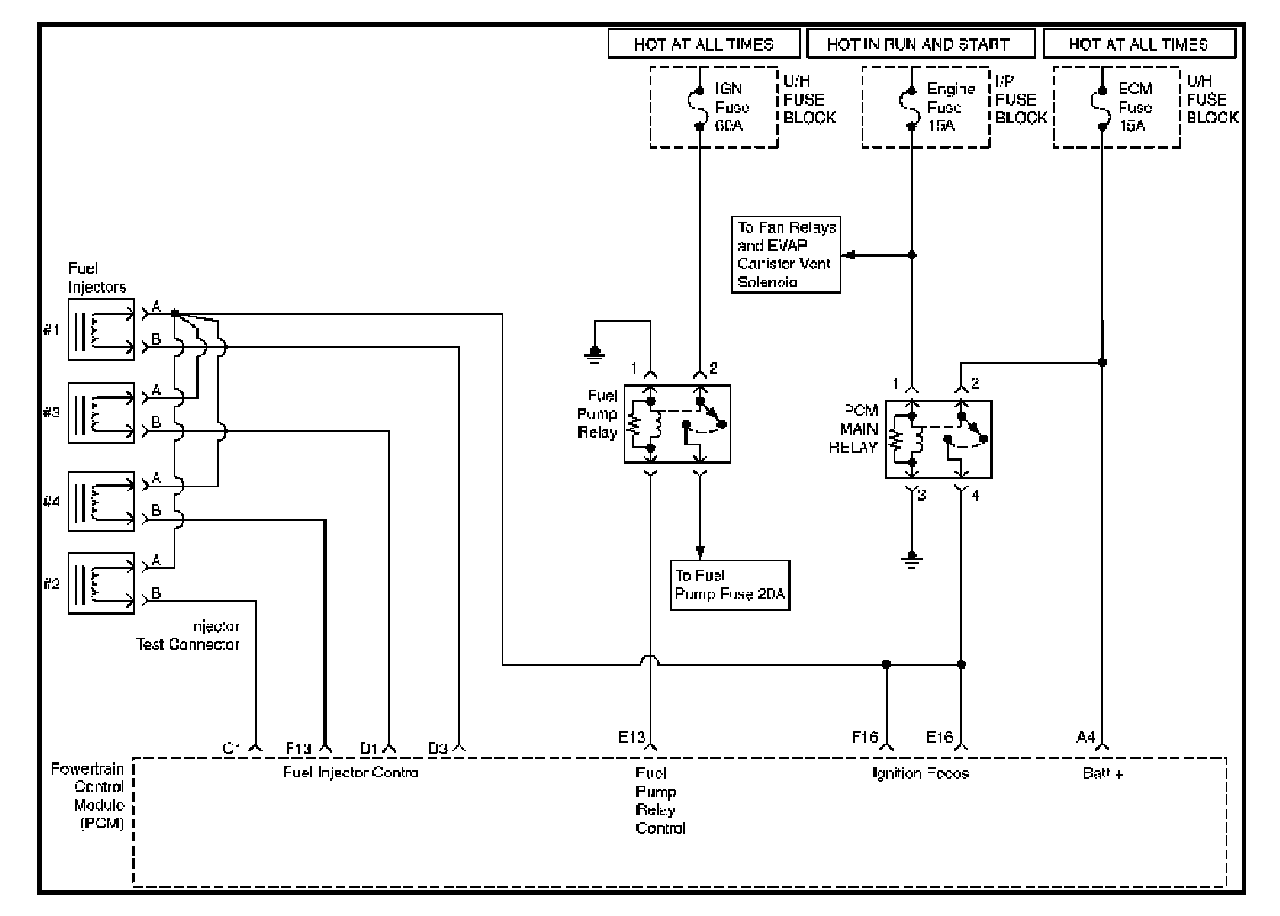

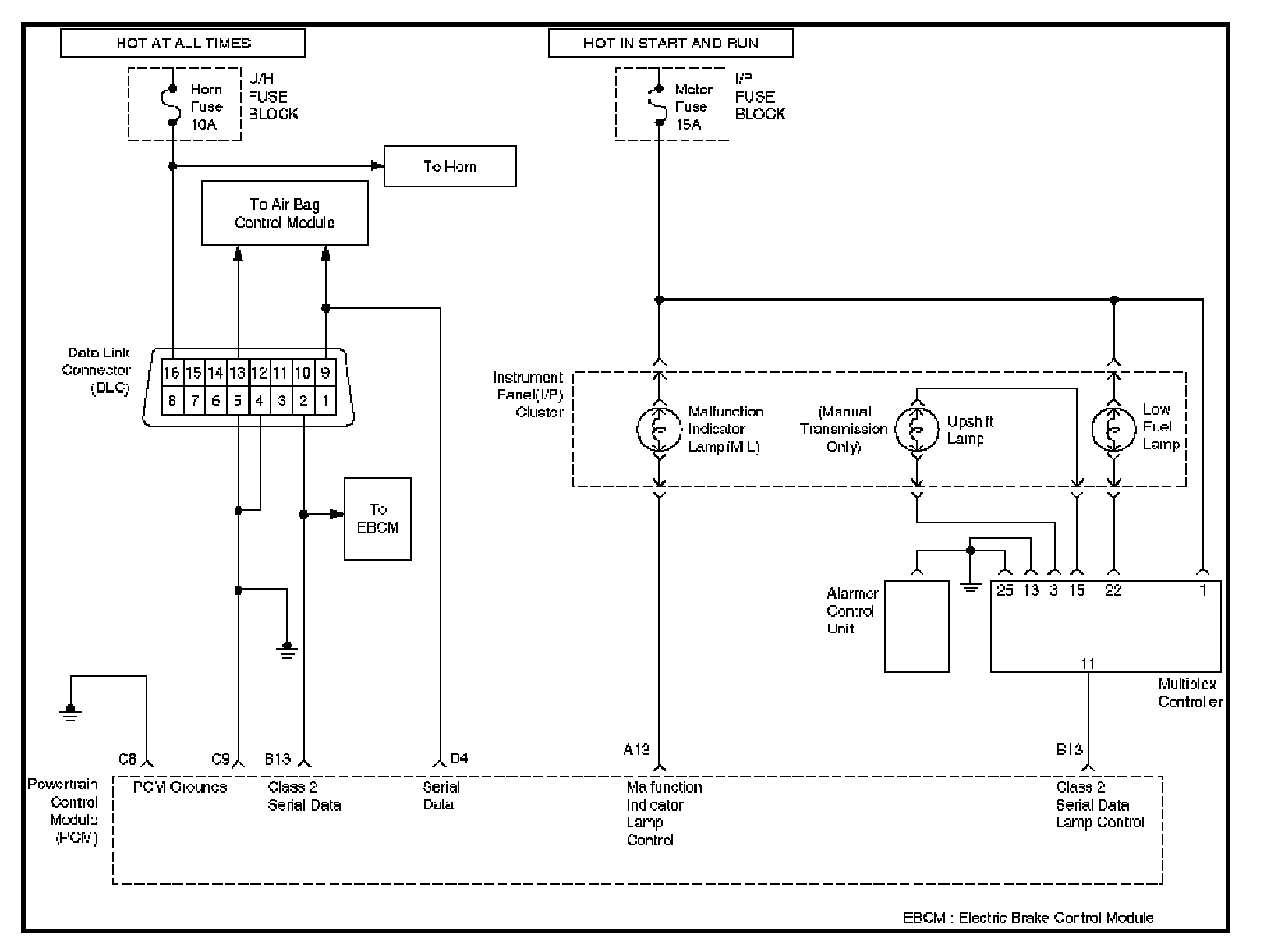

PCM Wiring Diagram Part 1:

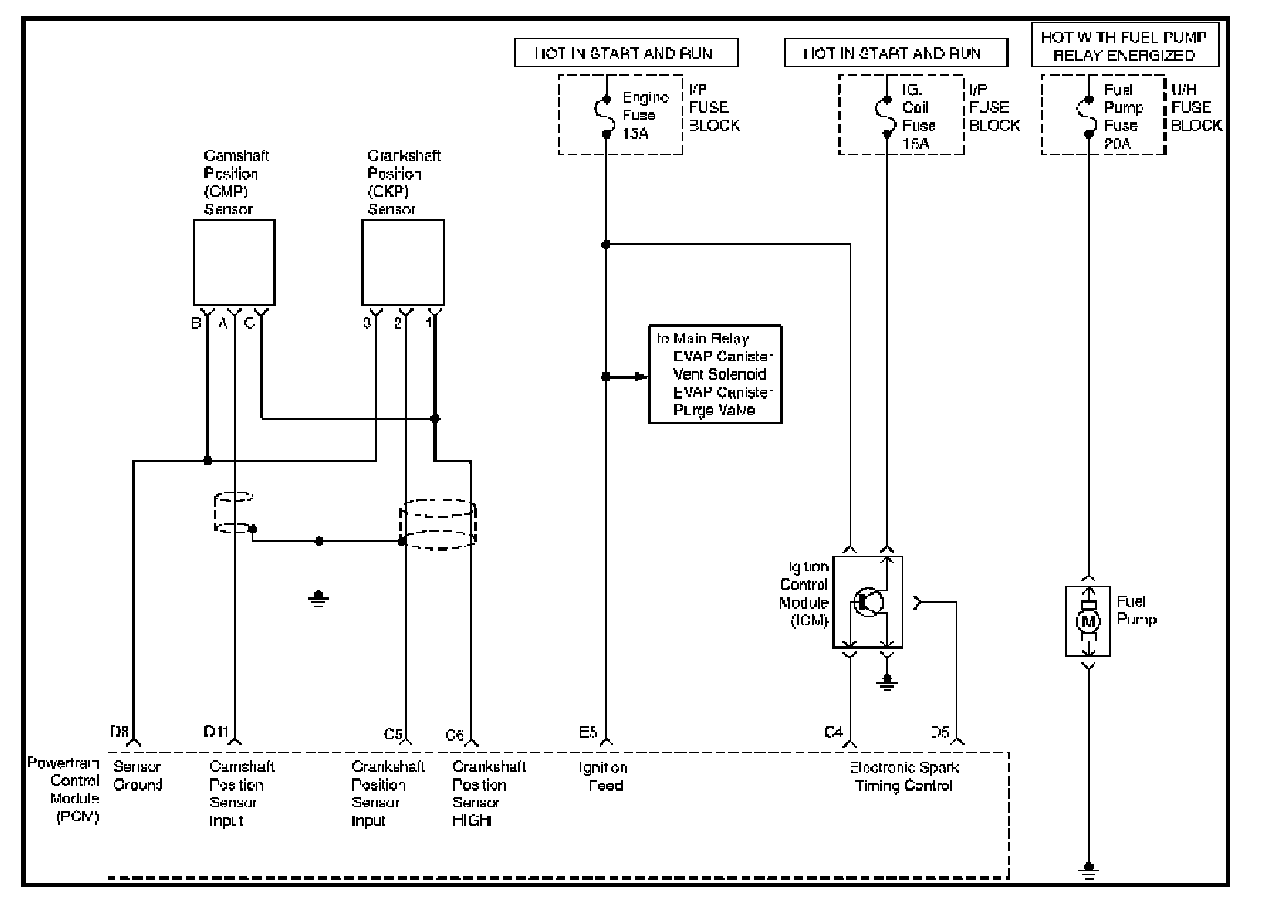

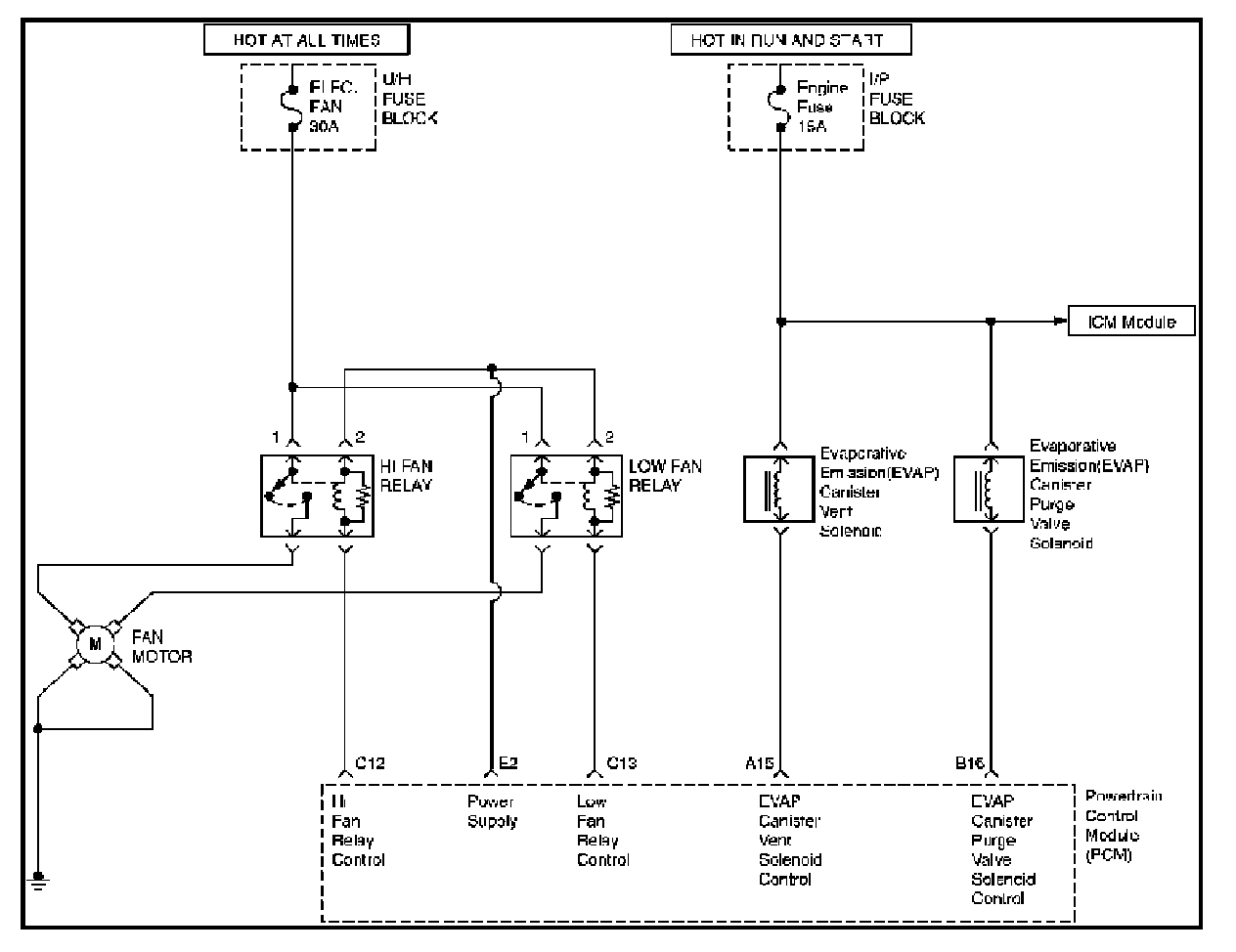

PCM Wiring Diagram Part 2:

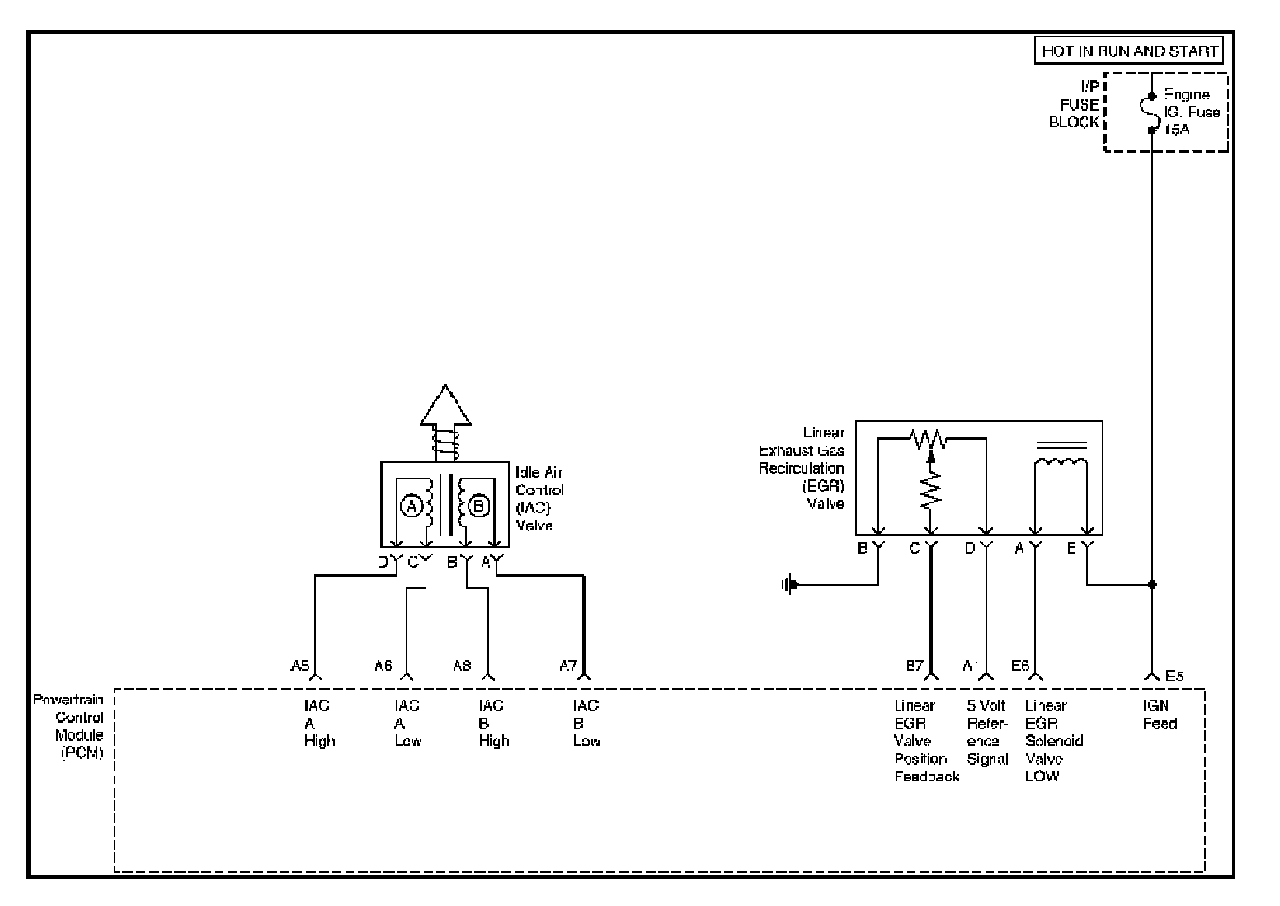

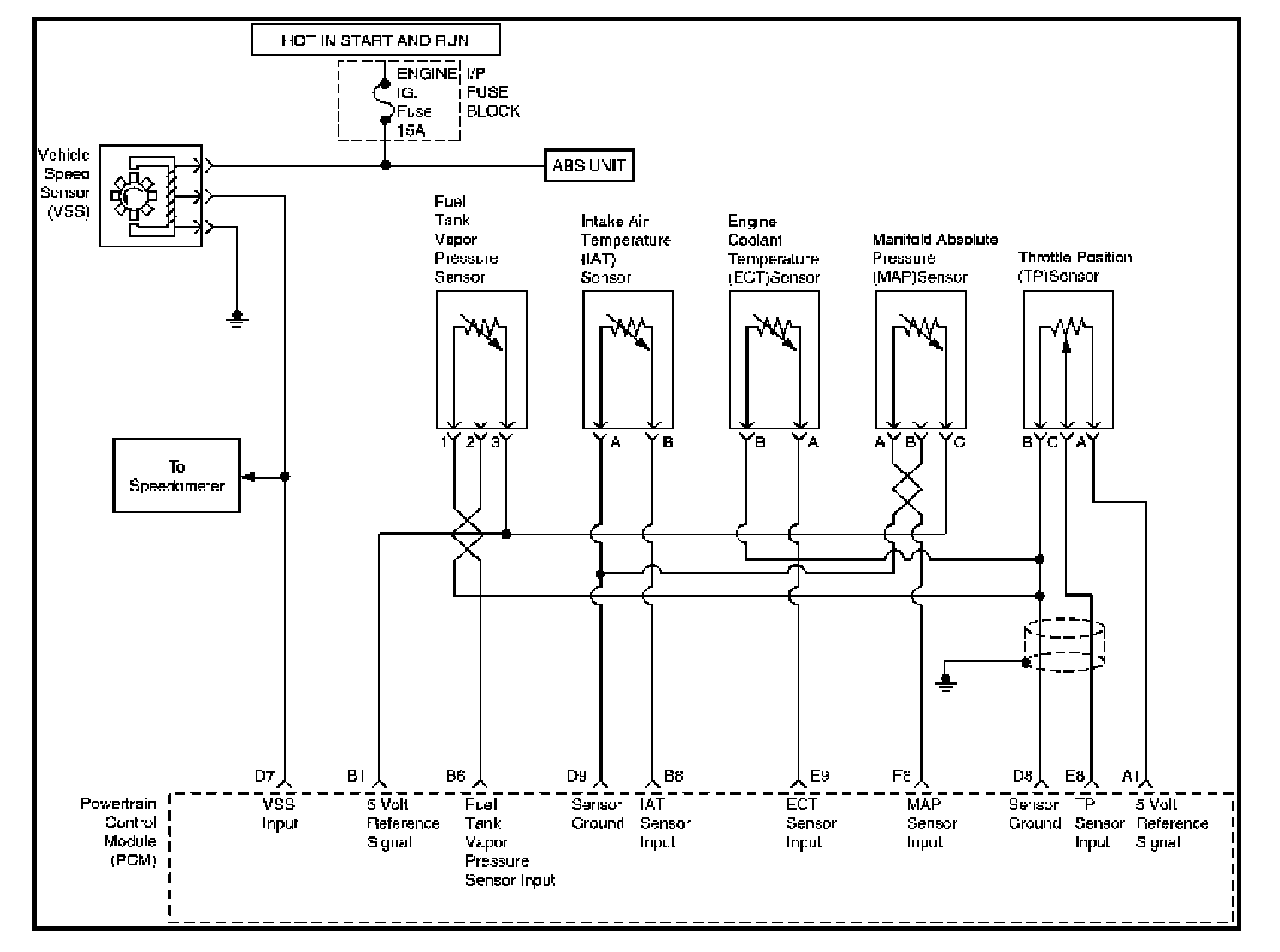

PCM Wiring Diagram Part 3:

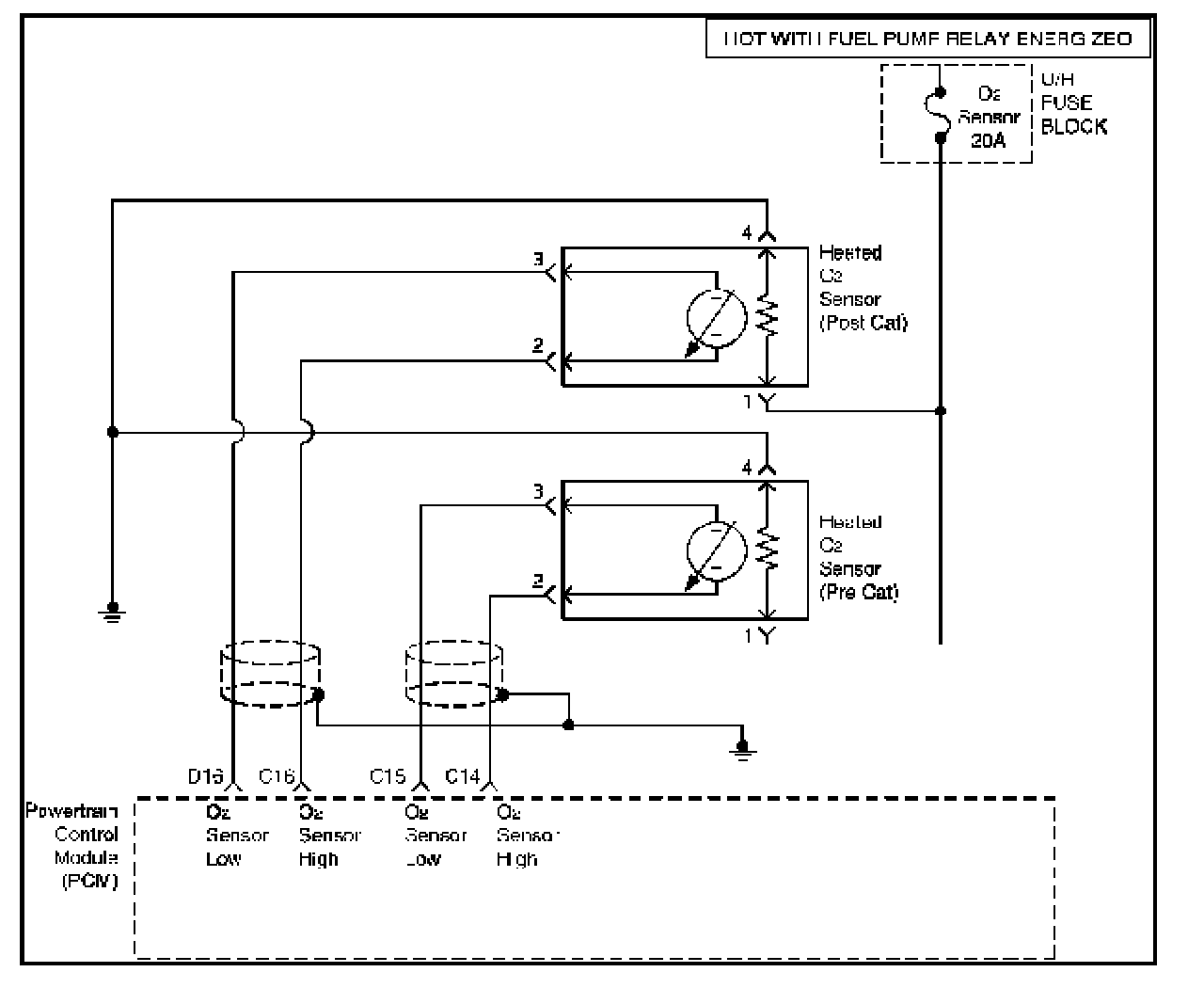

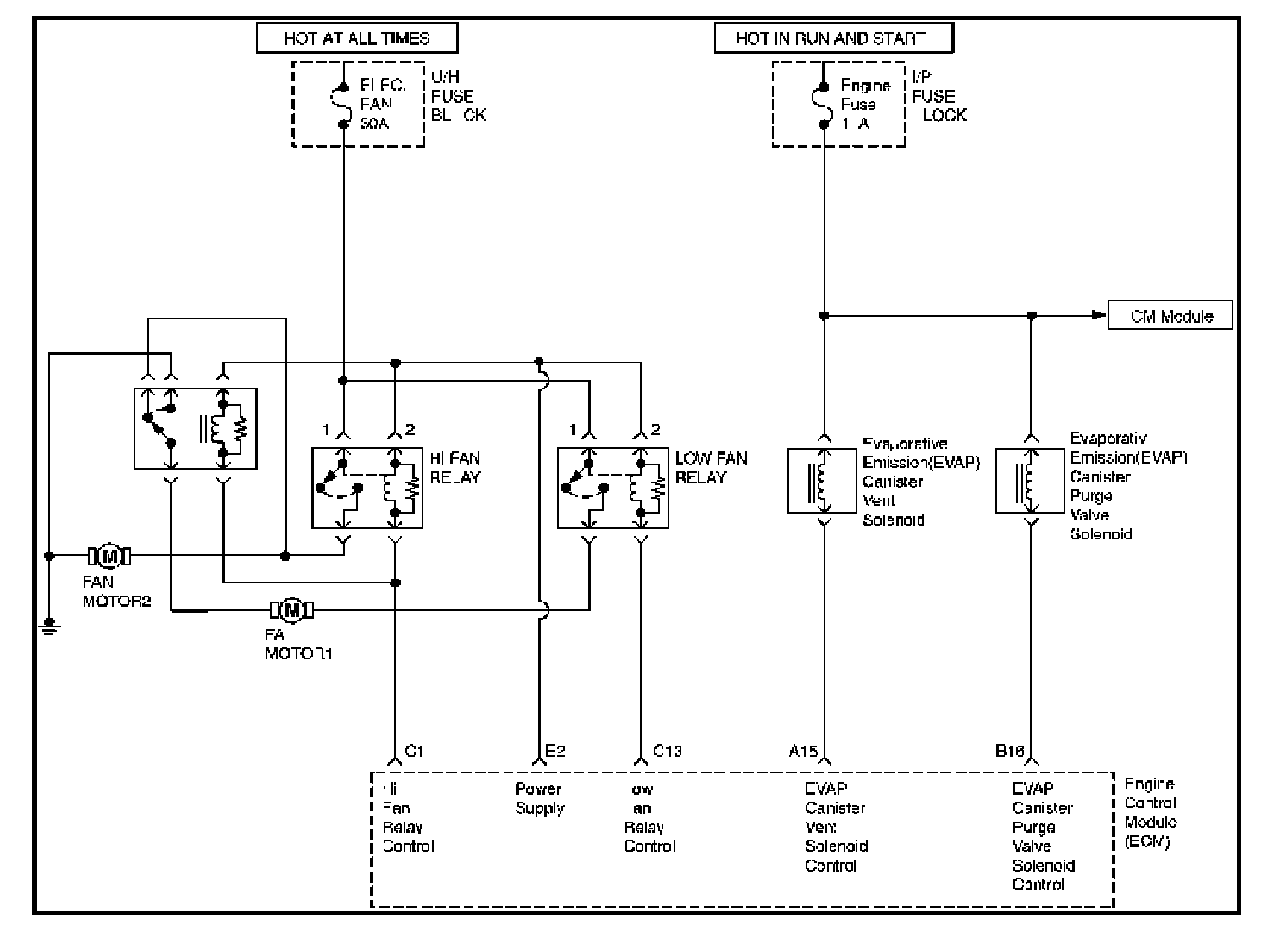

PCM Wiring Diagram Part 4:

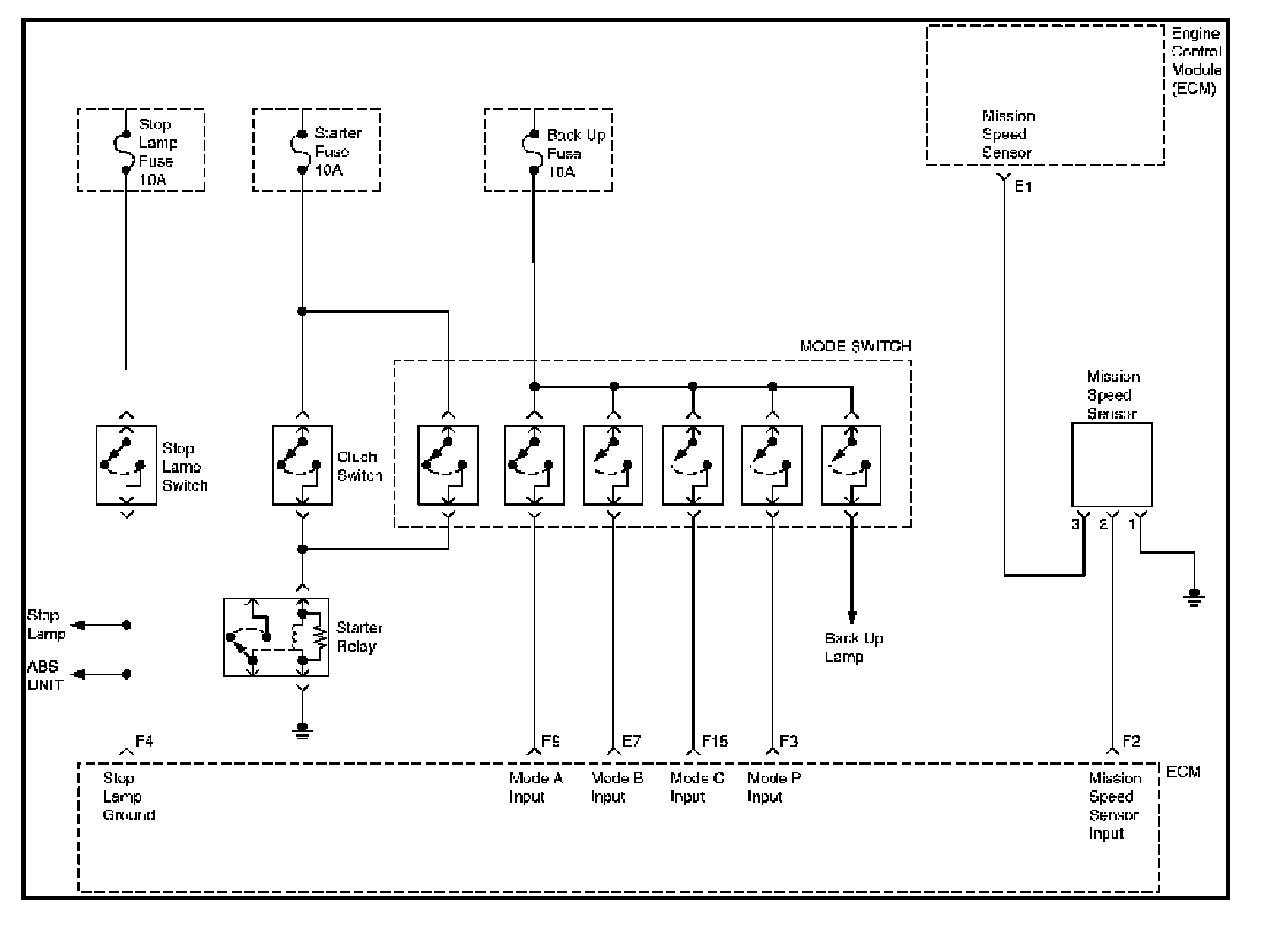

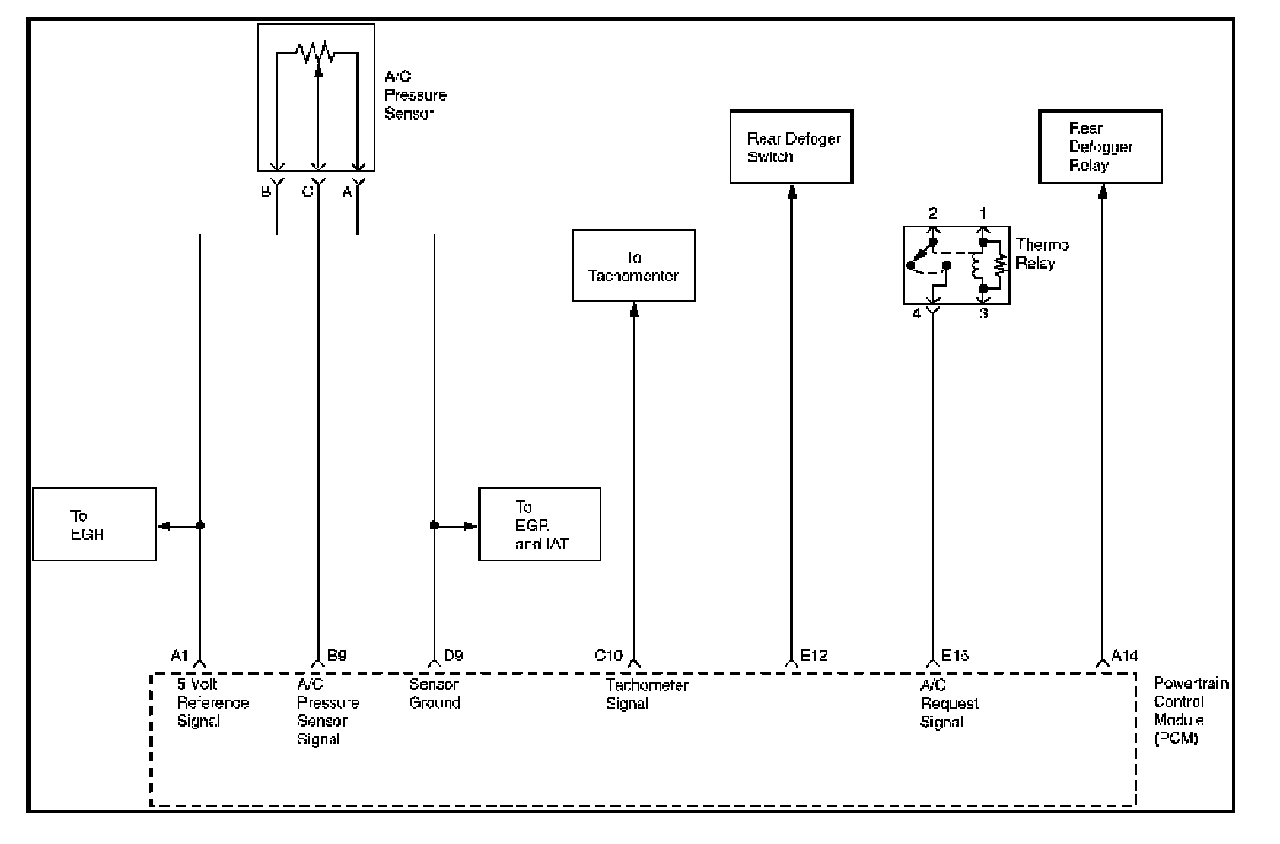

PCM Wiring Diagram Part 5:

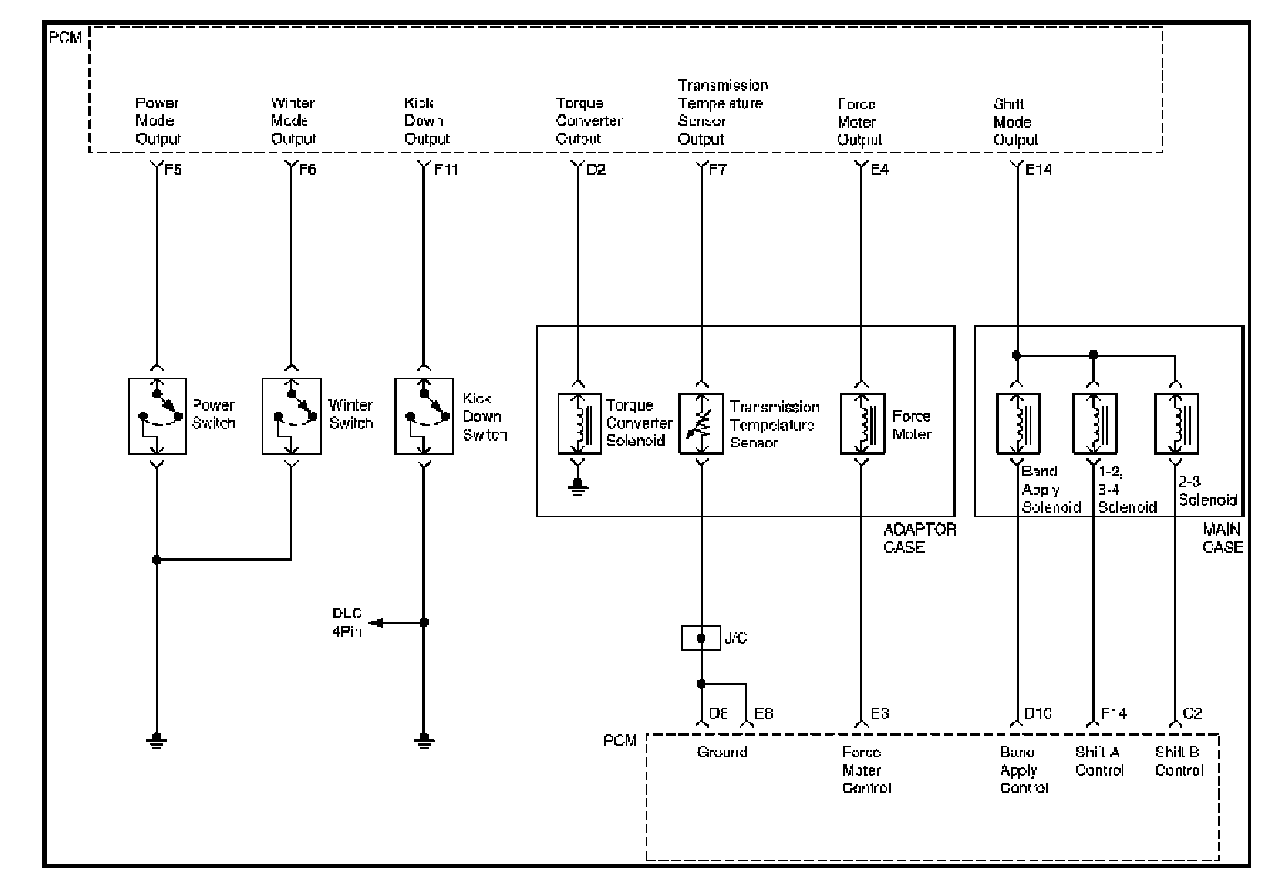

PCM Wiring Diagram Part 6:

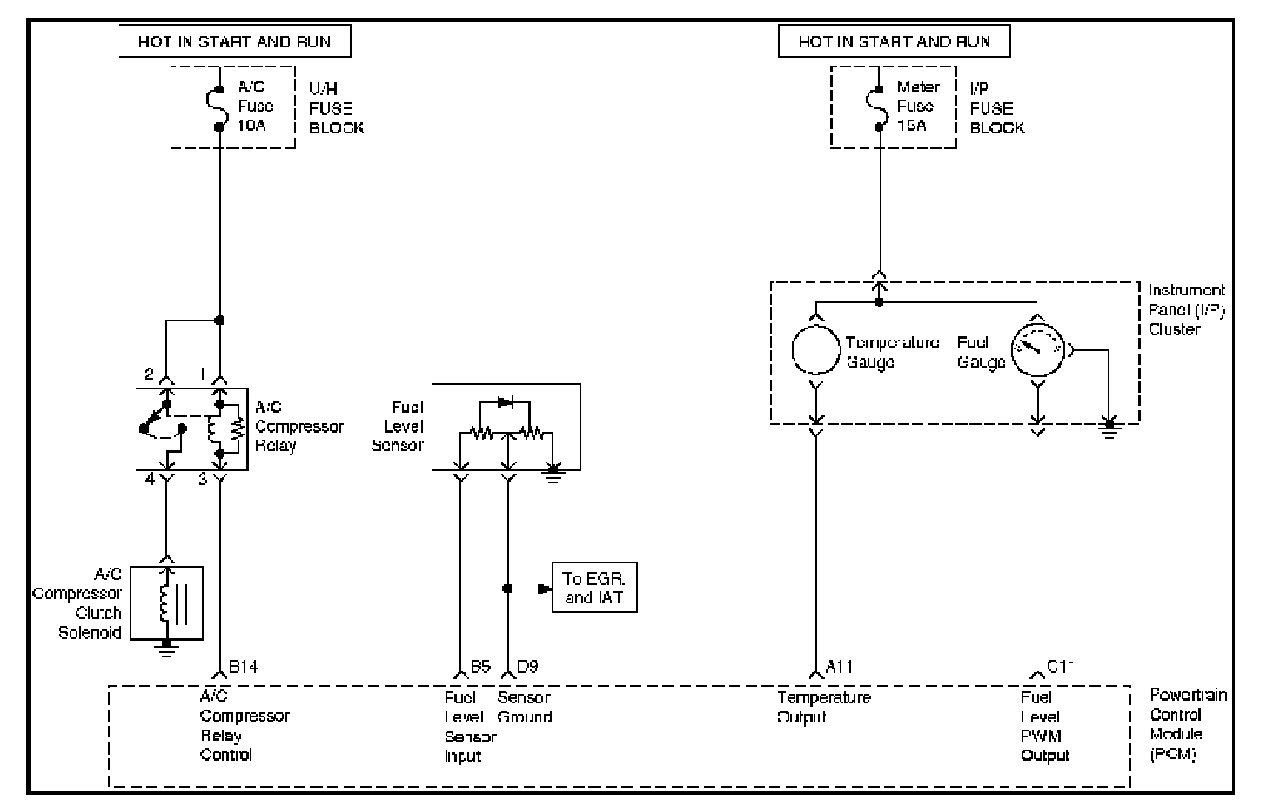

PCM Wiring Diagram Part 7:

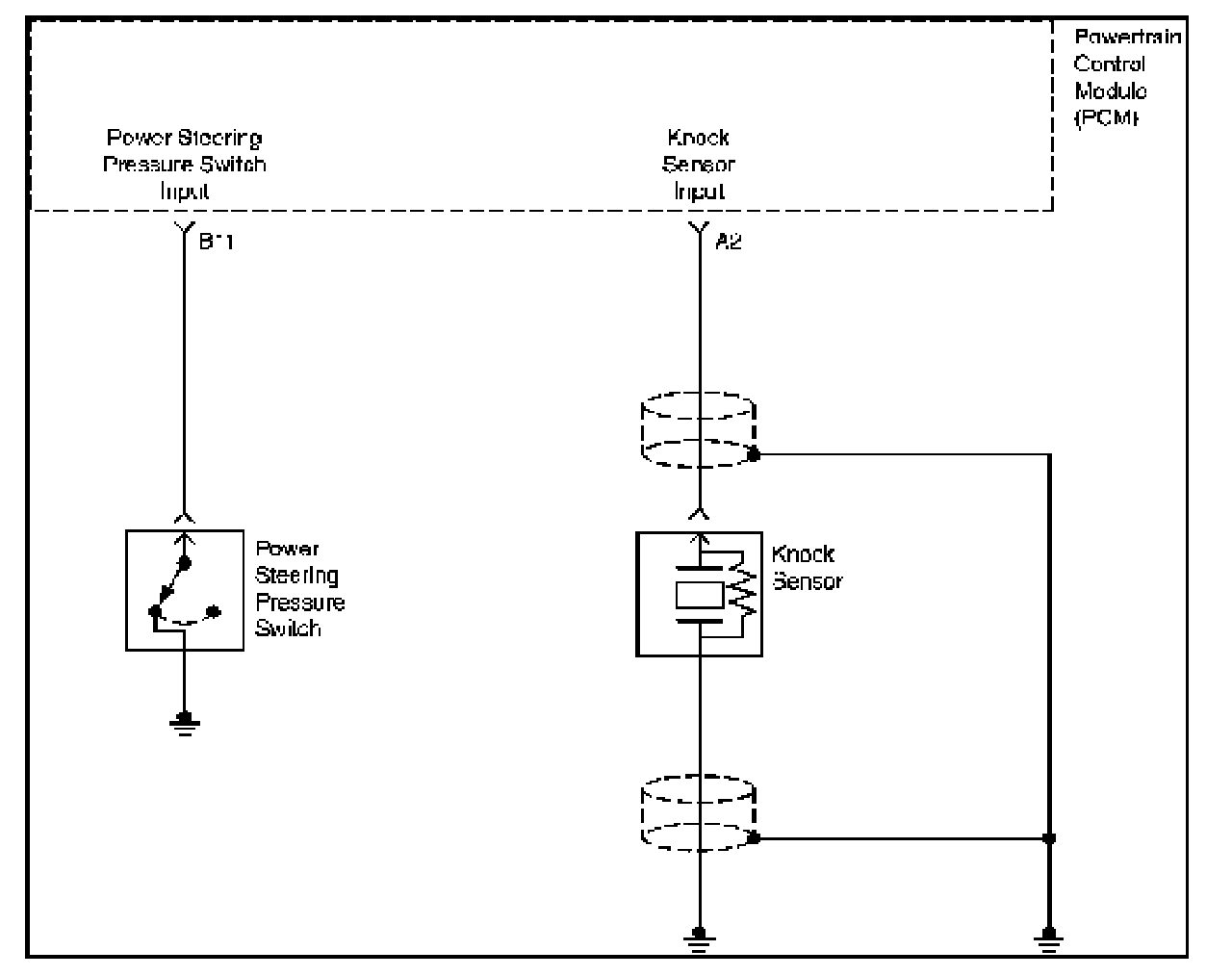

PCM Wiring Diagram Part 8:

PCM Wiring Diagram Part 9:

PCM Wiring Diagram Part 10:

PCM Wiring Diagram Part 11:

PCM Wiring Diagram Part 12:

PCM Wiring Diagram Part 13:
