Accelerator Pedal: Service and Repair

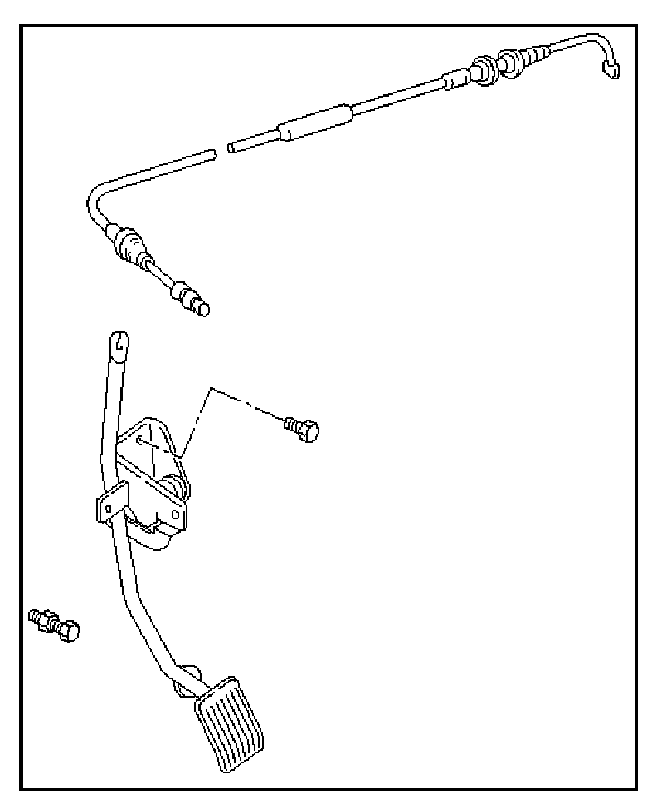

REMOVAL PROCEDURE # 1

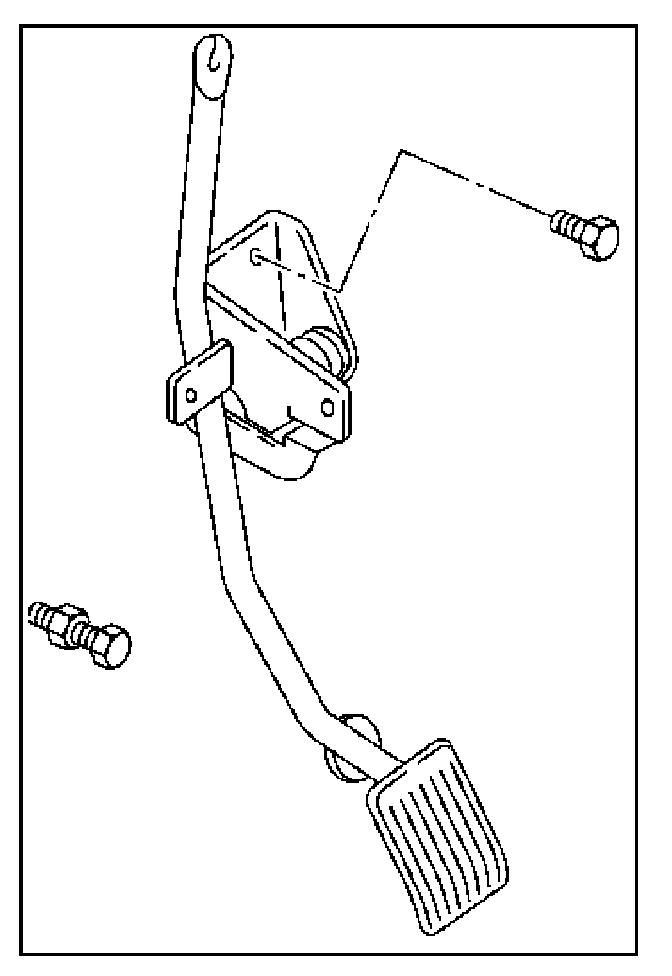

1. Disconnect the accelerator pedal control cable from the accelerator pedal assembly.
2. Remove the two screws retaining the accelerator pedal to the bulkhead.




3. Remove the accelerator pedal from the bulkhead.

INSTALLATION PROCEDURE # 1
1. Install the accelerator pedal assembly to the bulkhead with two screws.
2. Connect the accelerator control cable to the accelerator pedal assembly.




3. Adjust accelerator cable if necessary. Refer to Accelerator Cable Adjustment Section.

Accelerator Pedal and Associated Parts

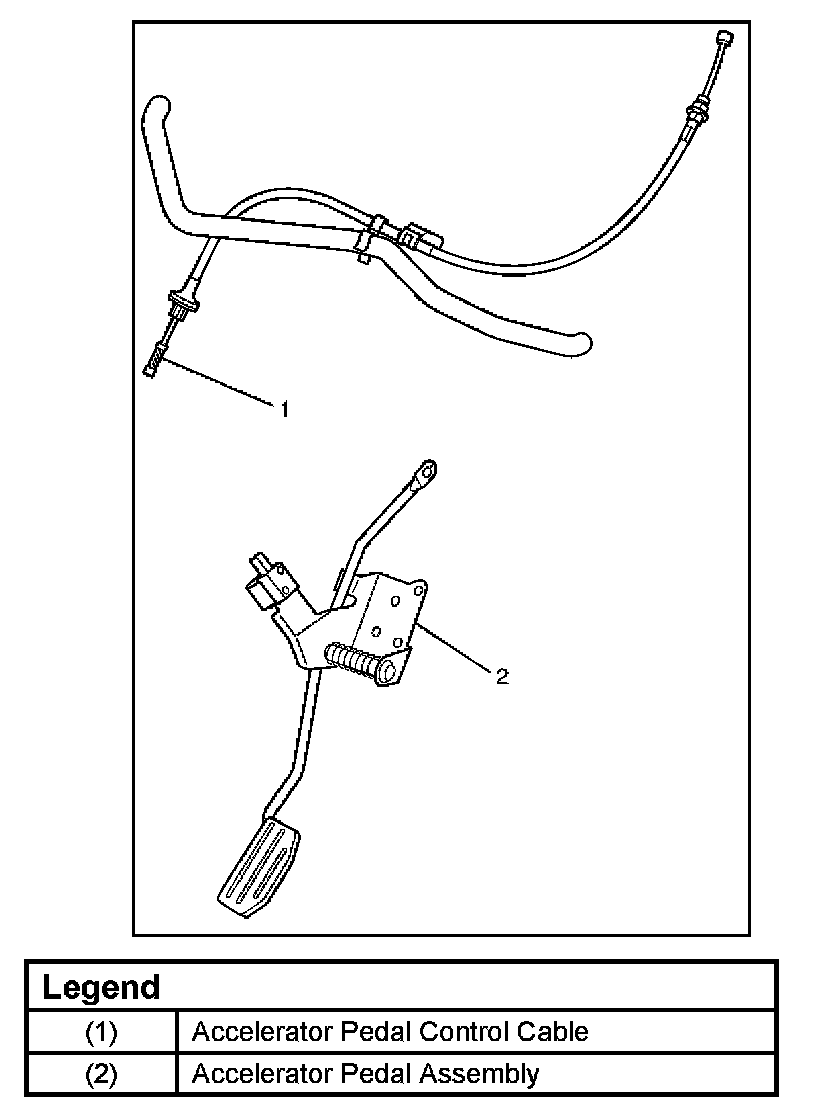

Accelerator Pedal Associated Parts:

REMOVAL PROCEDURE # 2
1. Accelerator pedal control cable (1).
2. Accelerator pedal assembly(2).

INSTALLATION PROCEDURE # 2
1. Accelerator pedal assembly (2).
2. Accelerator pedal control cable (1).
3. Adjust the accelerator pedal free play, refer to the AP control cable.
