Shift Speed Chart





Shift Speed Chart (HEC)

"Normal modes"

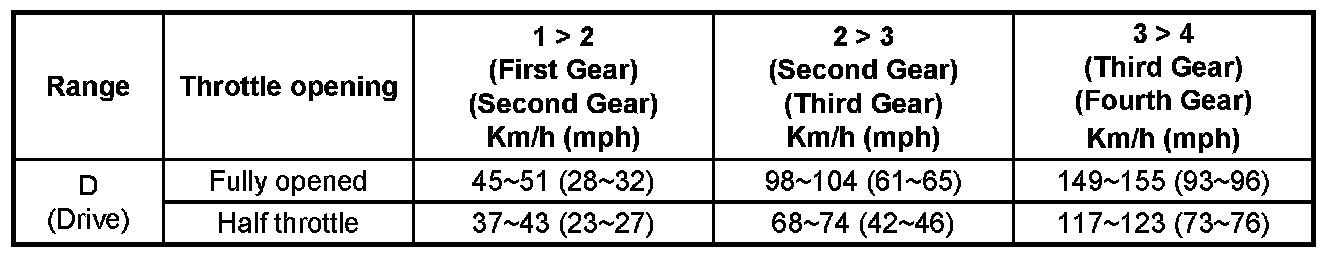

Upshift








Downshift

"Power mode"

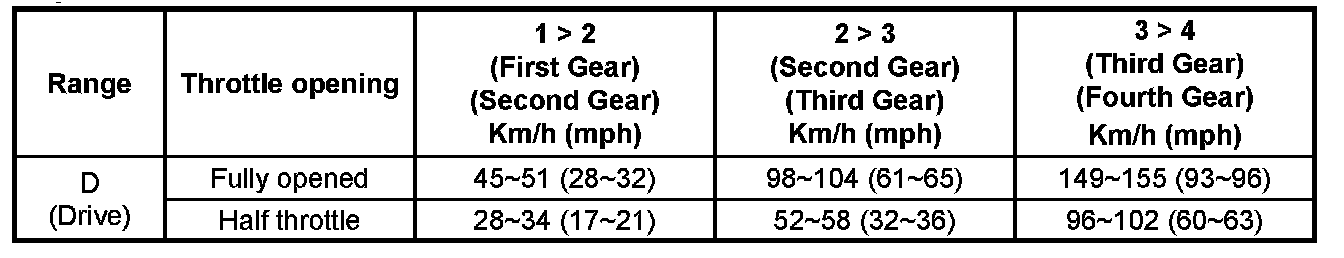

Upshift

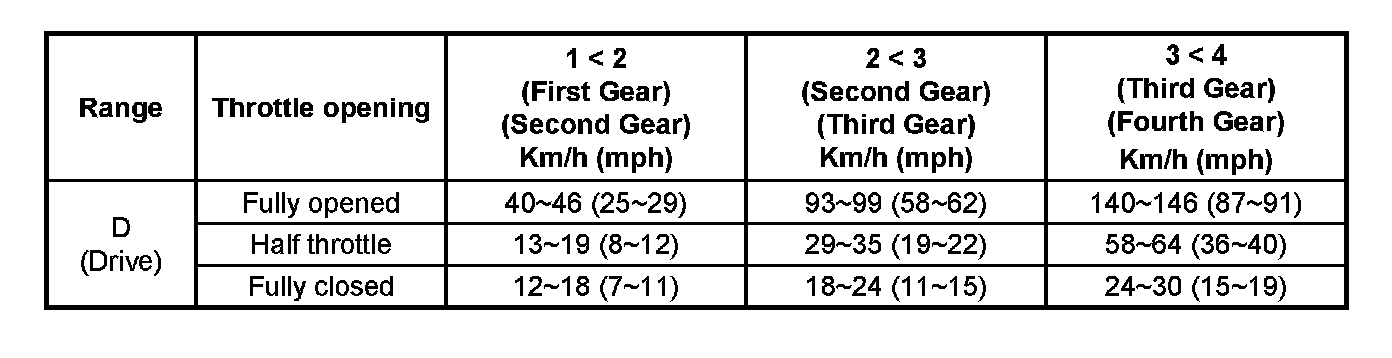

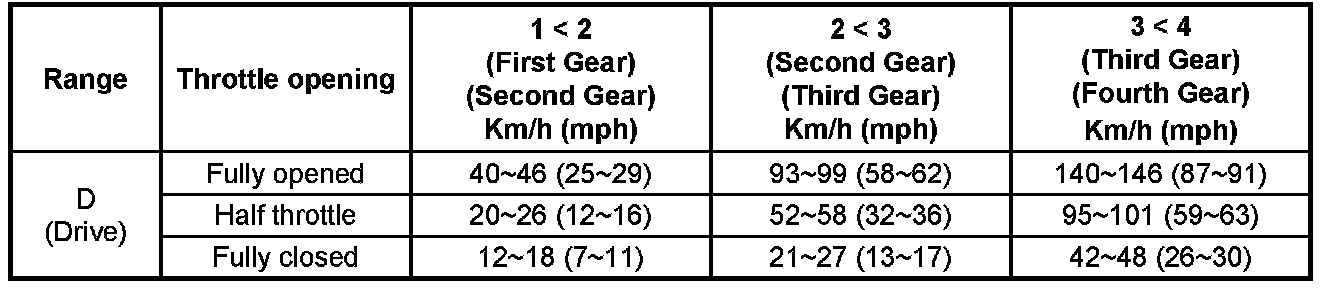

Downshift





"Winter mode"

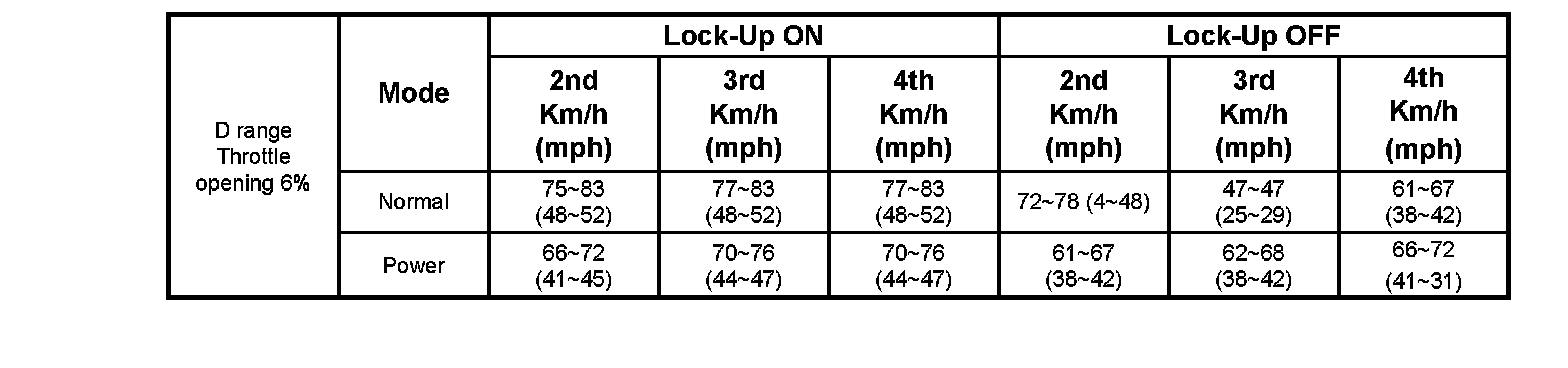

Lockup Speed Chart
