Shift Interlock: Diagrams

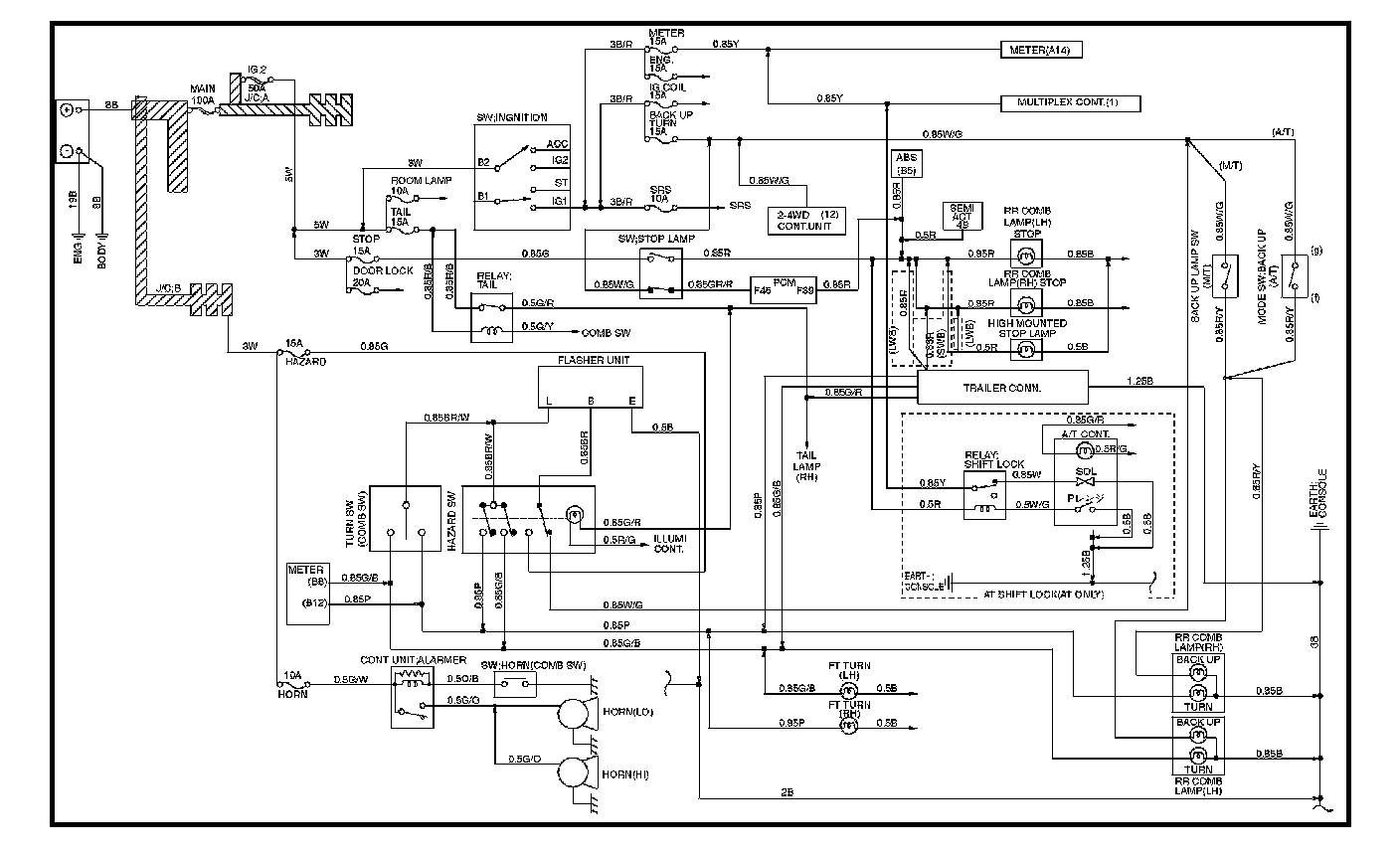

TURN, HAZARD, Stop, Back, Up, Horn And A/T Shift Lock:

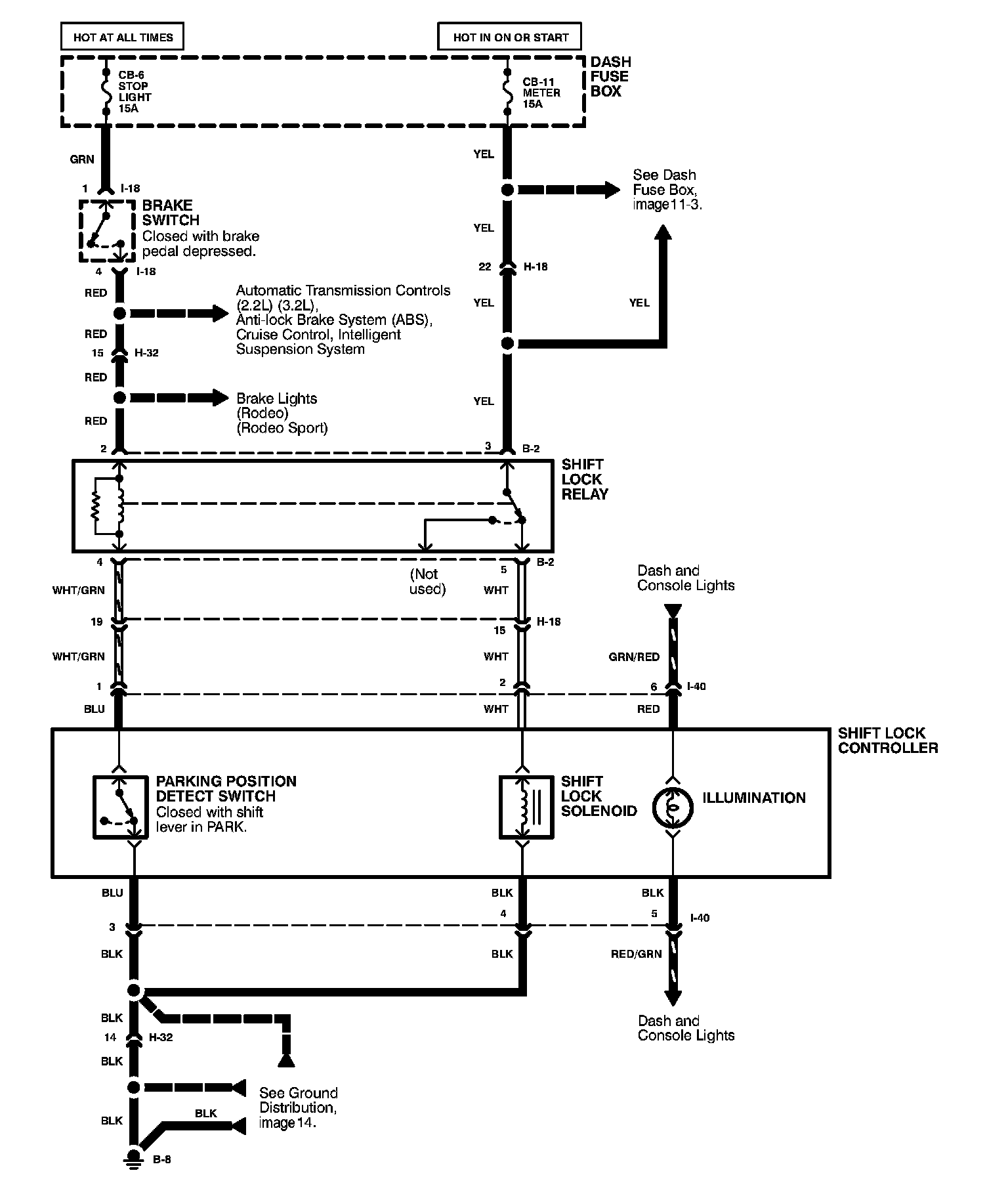

Shift Interlock System Image 138:
