Home >> Isuzu >> 2002 >> Rodeo S 2WD L4-2.2L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Locations

Transmission Control Systems: Locations

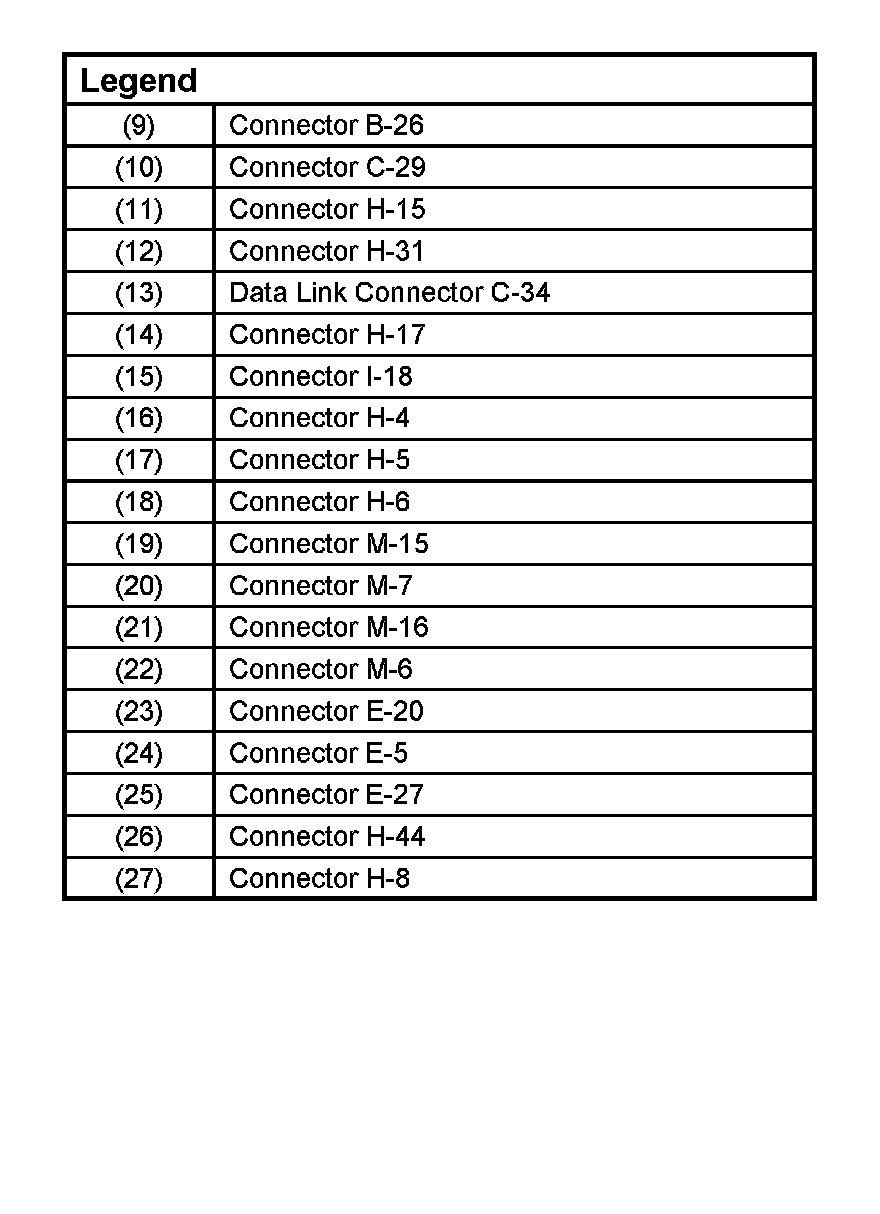

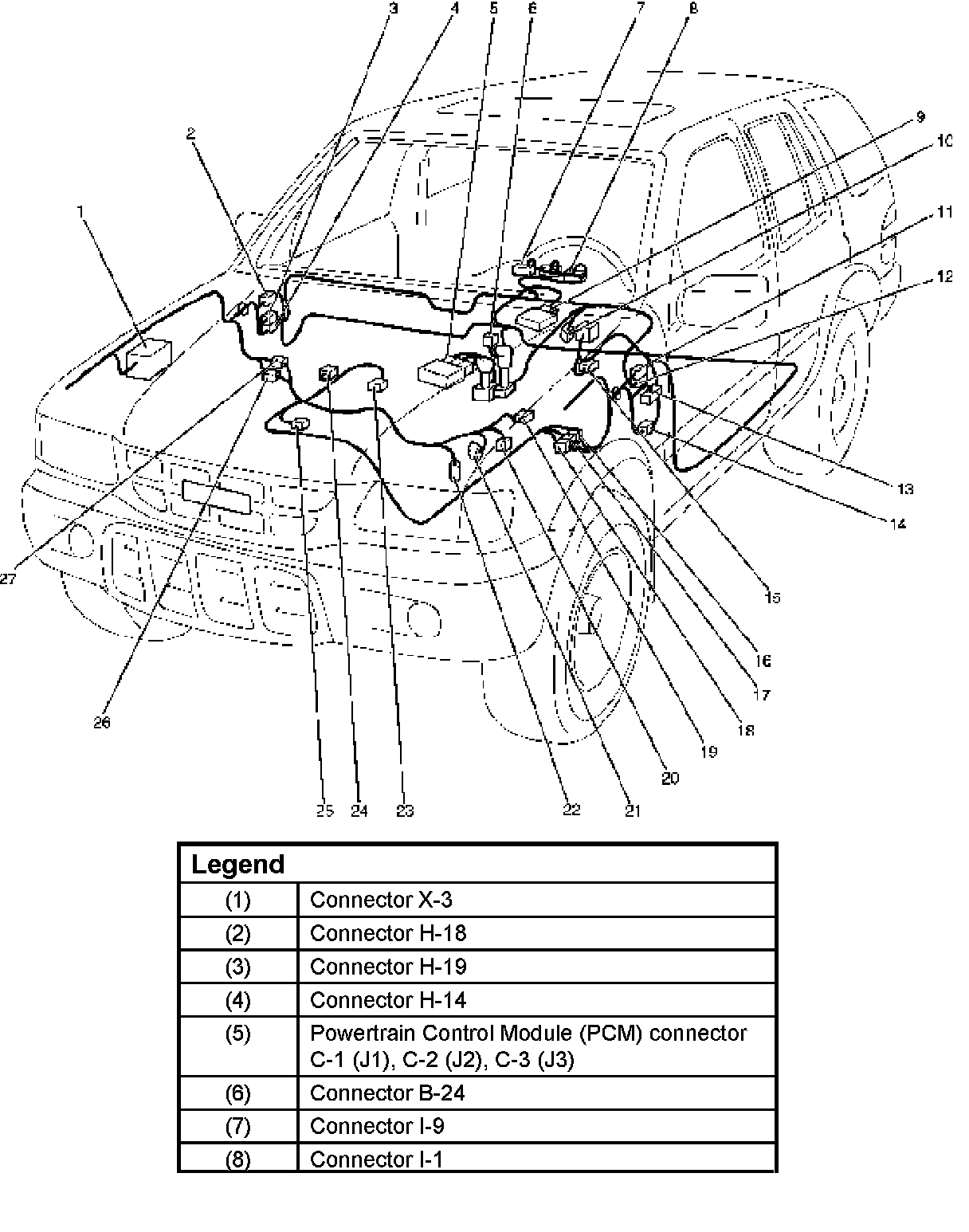

Parts Location





1 of 2





2 of 2
