Removal and Installation
Removal1. Battery ground cable.

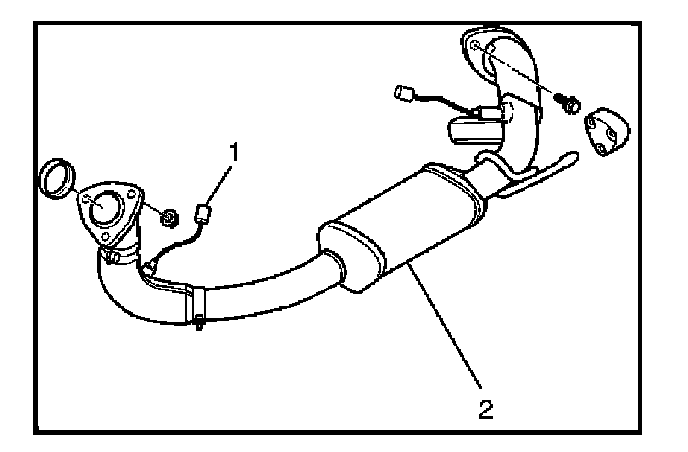

2. Disconnect Heated O2 Sensor connector (1).

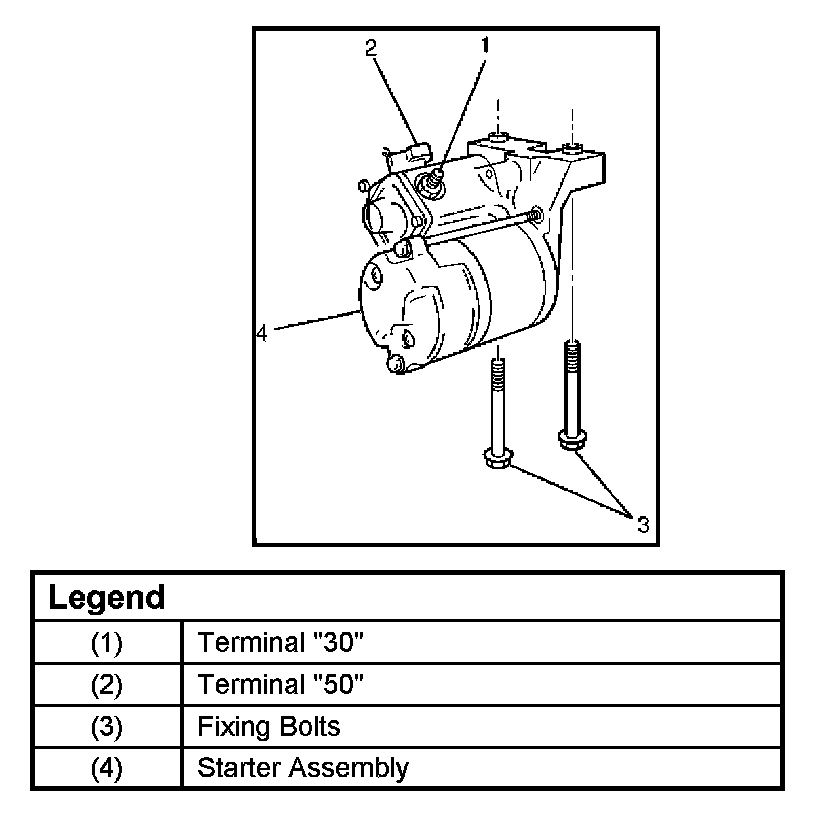

3. Remove exhaust front left pipe (2).
4. Disconnect starter wiring connector from terminals "30" (1) and "50" (2).
5. Remove starter assembly mounting bolts on inside and outside (3).
6. Remove starter assembly (4) toward the bottom of engine.
Installation
1. Install starter assembly (4).
2. Install mounting bolts and tighten bolts to specified torque (3).
Torque: 40 N.m (30 lb ft)
3. Reconnect the connectors to terminals "50" (2) and tighten terminals "30" (1) to specified torque.
Torque: 9 N.m (78 lb in)
4. Install exhaust front left pipe (2) and tighten bolts and nuts to specified torque.
Stud Nuts
Torque: 67 N.m (49 lb ft)
Bolts
Torque: 43 N.m (32 lb ft)
5. Connect two Heated O2 Sensor connector (1).
6. Reconnect the battery ground cable.
