Condition One : Apply Noxudol 300

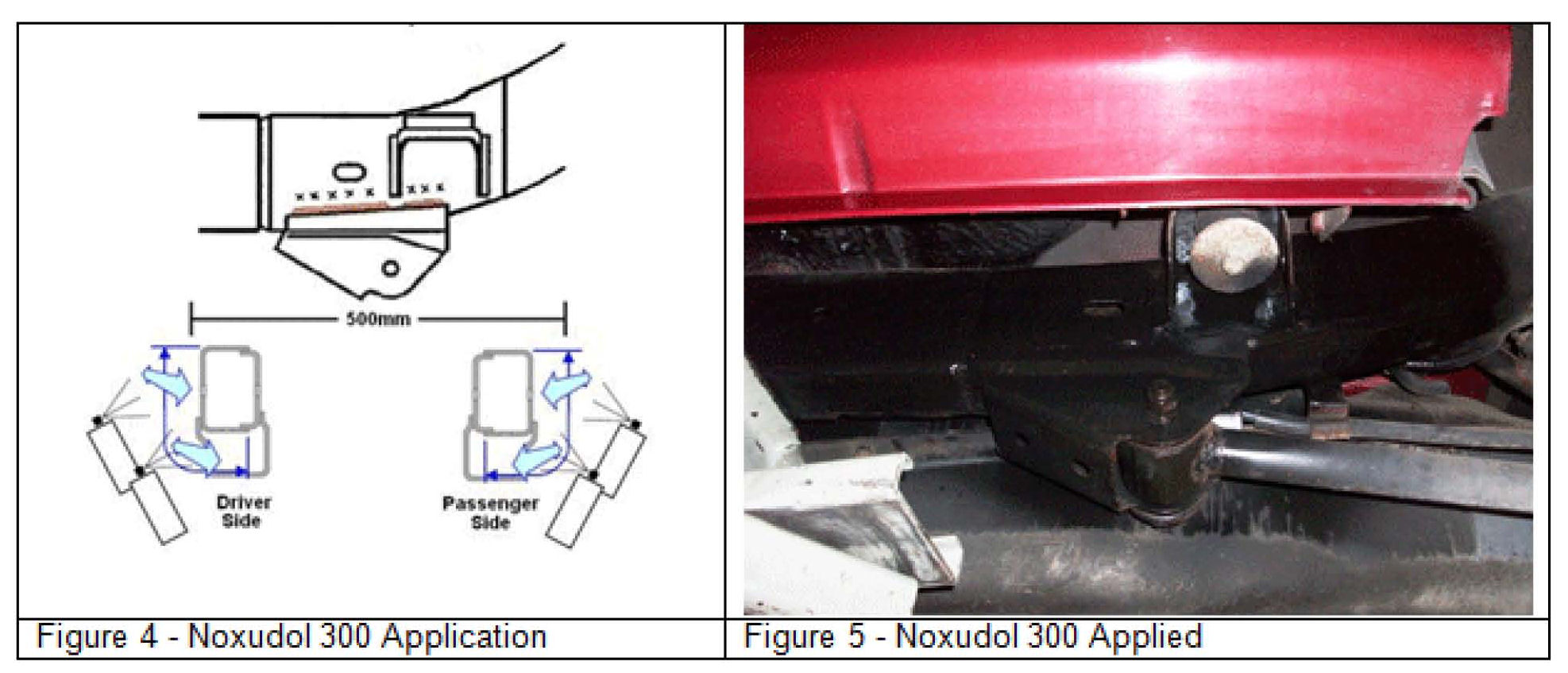

1. Using a wire brush and scraper remove any loose coating material and rust from the outside frame and rear lower trailing link front mounting bracket area on both driver and passenger sides in the location shown in Figure 4.

2. Using a dry rag remove any remaining dust or debris. If the application area is wet use a blow gun to remove any water.

CAUTION:
Noxudol propellant is highly flammable. Keep away from sources of ignition ~ no smoking. Keep at temperature not exceeding +50°C.

IMPORTANT:
Wear hand and eye protection to avoid direct contact. Application should be performed in an area with adequate ventilation. See manufacturer's information for more details.





3. Spray one coat of Noxudol 300 onto both driver and passenger side shown in Figures 4 and 5. Be careful not to overspray onto the exhaust system or body painted areas. See Figure 4.

4. Apply the campaign label (see "Applying the Campaign Label" in this bulletin).
