Front Oil Seal (Converter Housing)

Front Oil Seal (Converter Housing)
Removal
1. Remove transmission assembly from the vehicle.
2. Remove torque converter from converter housing.
3. Remove three screws and oil seal ring from converter housing.

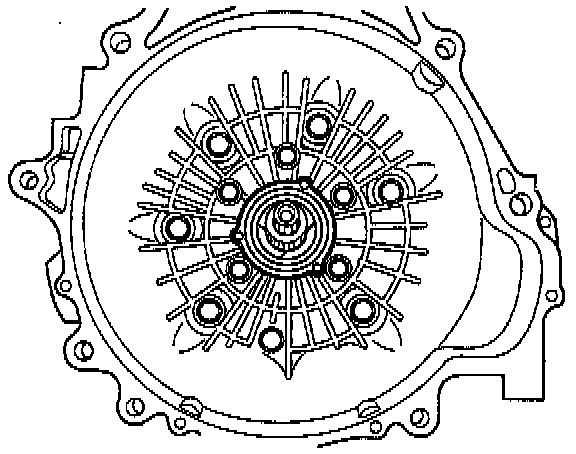

(V6)





(HEC)

Installation
1. Apply clean ATF to the new oil seal ring lip.
- Install oil seal ring to converter housing' tighten to the specified torque.
Torque: 3 Nm (26 inch lbs.)
2. Install torque converter to converter housing.
3. Install transmission assembly to the vehicle.
