Console: Service and Repair

Consoles

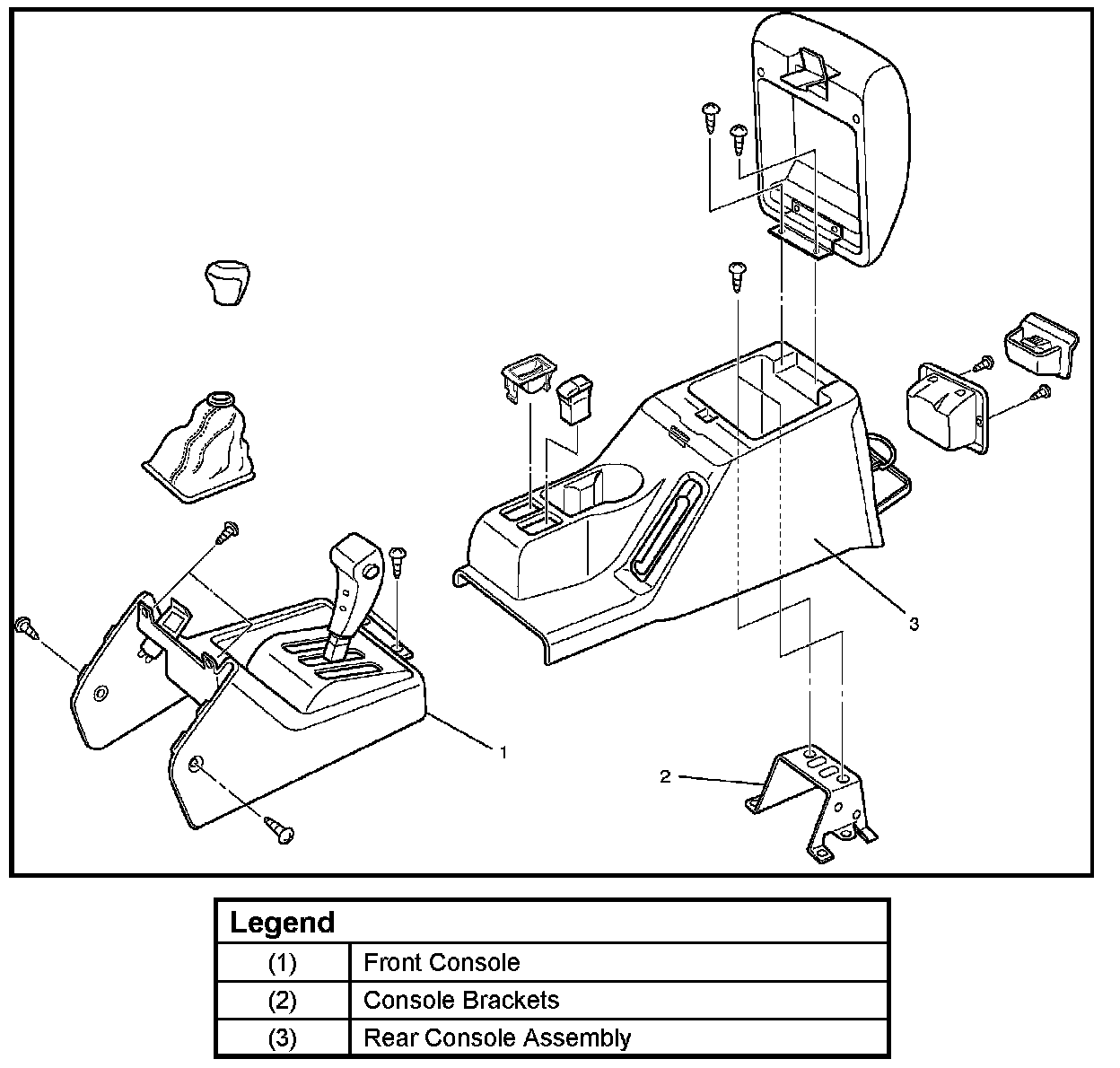

Consoles and Associated Parts

Consoles And Associated Parts:

Removal

1. Disconnect the battery ground cable.
2. Remove the shift knob (MIT) / transfer knob (4x4).
3. Remove the rear console assembly.
- Open the rear console lid and remove two screws.
- Disconnect the switch connector.

4. Remove the front console assembly.
- Remove six fixing screws and disconnect the accessory socket connectors.

Installation
To install, follow the removal steps in the reverse order.
