Cylinder Head Assembly: Specifications

General Specification

Torque Specifications

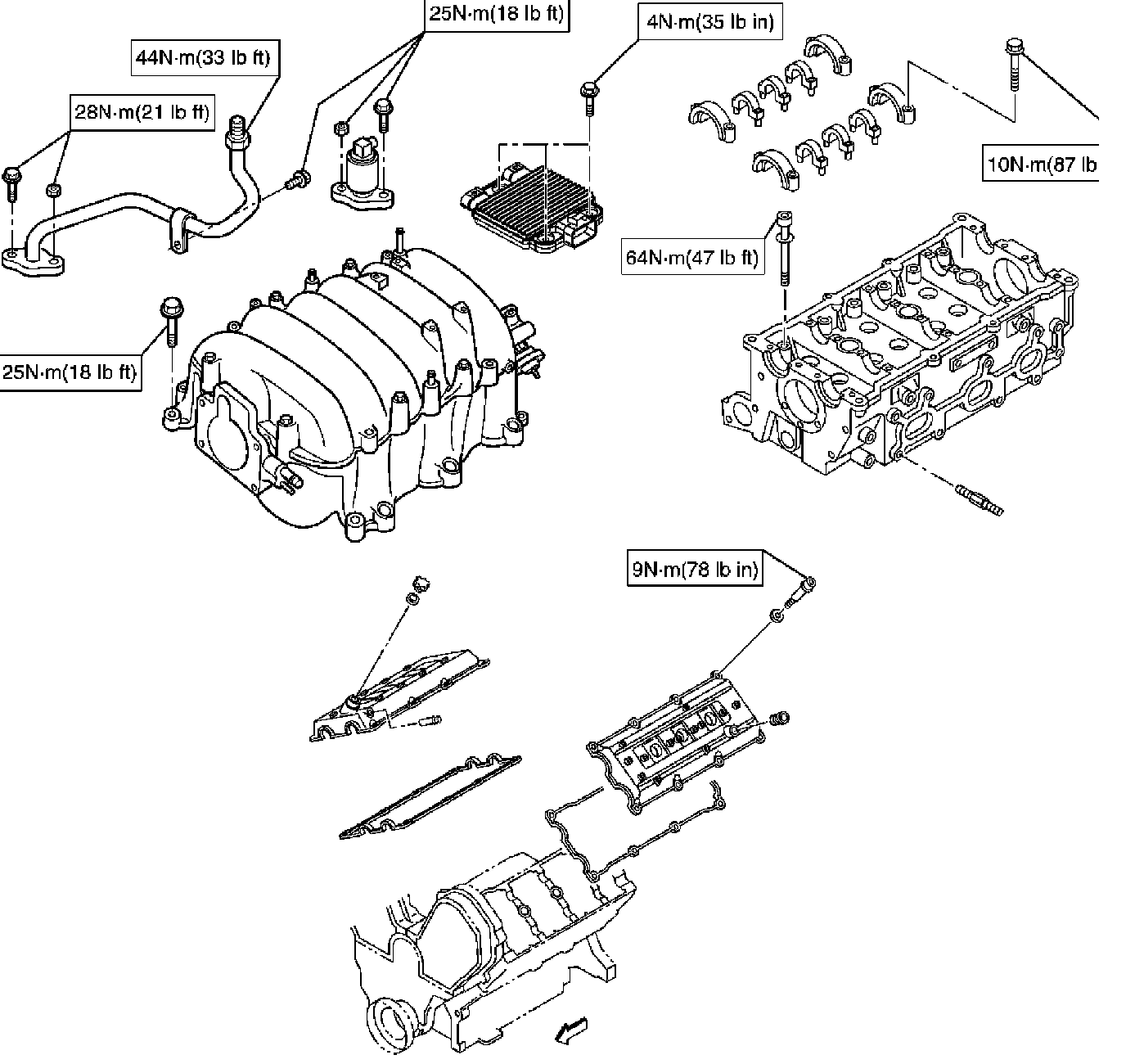

Ignition Coil, Spark Plug, Crankshaft Angle Sensor and Under Cover





Cylinder Head Cover, Cylinder Head, Camshaft Bearing Cap, Common Chamber, EGR Valve and EGR Pipe

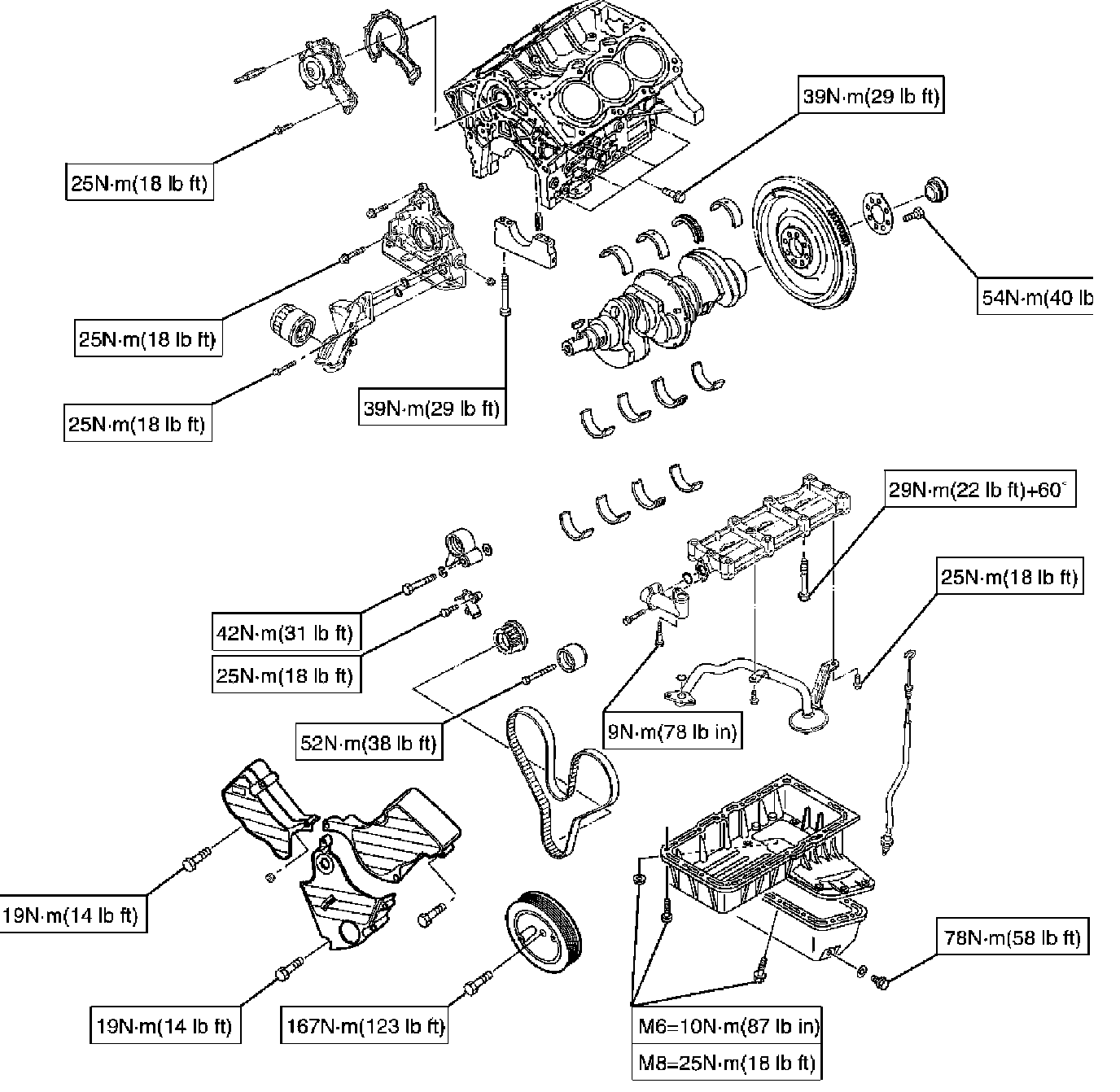

Crankshaft Main Bearing, Flywheel, Crankcase, Oil Pan, Timing Belt Tensioner, Timing Pulley, Timing Belt Cover, Oil Pump, Oil Gallery, Oil Strainer and Water Pump





Connecting Rod and Water Pump





Engine Mount

Refer to procedure for cylinder head bolts tightening torque and sequence and cylinder head service specifications. Service and Repair
