Headlamp: Adjustments

Headlight Adjustment

Preparation

Place the vehicle with 1 person in driver seat on a level surface and check to see if the inflation pressure of the tires is correct, the lenses are clean, the battery is sufficiently charged, and adjust to place vehicle by using the screen.
1. Set a vertical screen on a level surface.

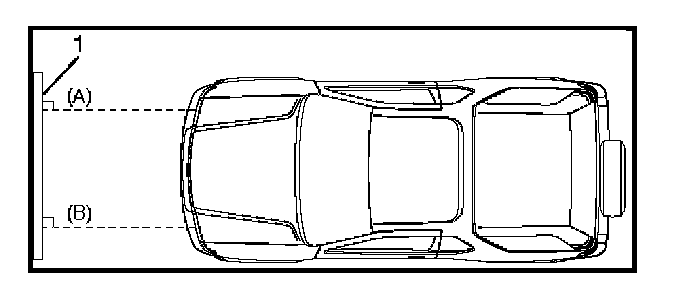

2. Toward the screen (1) from the bulb center mark of the headlight, extend parallel lines to the floor. Mark point (A) and (B) on the screen at the intersection of parallel line and the screen.




3. Draw vertical lines through point (A) and (B) on the screen.

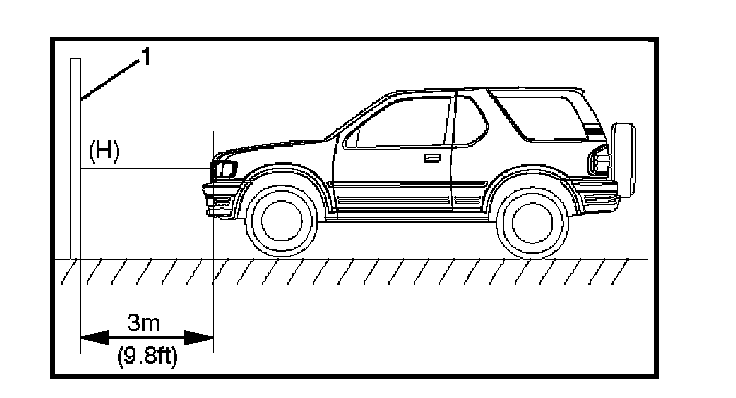

4. Keep the vehicle (2) 3 m (9.8 ft) apart from the screen (1).




5. Draw a horizontal line through point (A) and (B) on the screen (1)
6. Turn the headlight low beam on.

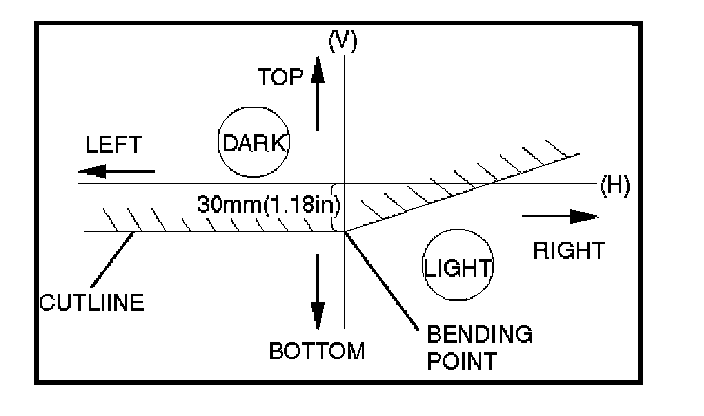

7. Adjust the CUTLINE 30 mm (1.18 in) below the horizontal line (H).




8. Adjust the BENDING POINT to the vertical line (V).

NOTE: Always adjust vertical adjustment first

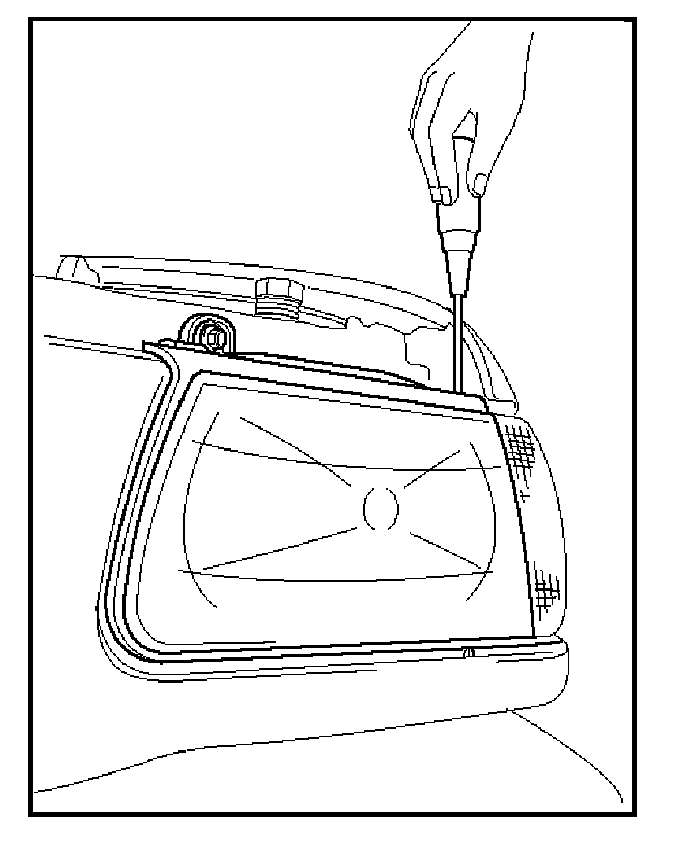

Vertical Adjustment




Use a screwdriver for vertical adjustment.

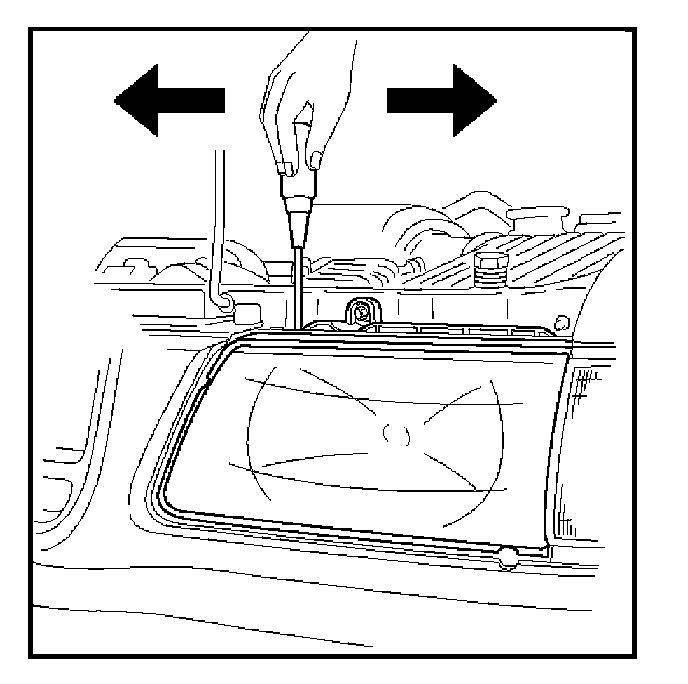

Horizontal Adjustment




Use a screwdriver for horizontal adjustment.
