Manual Transmission/Transaxle: Description and Operation

MUA5C Transmission

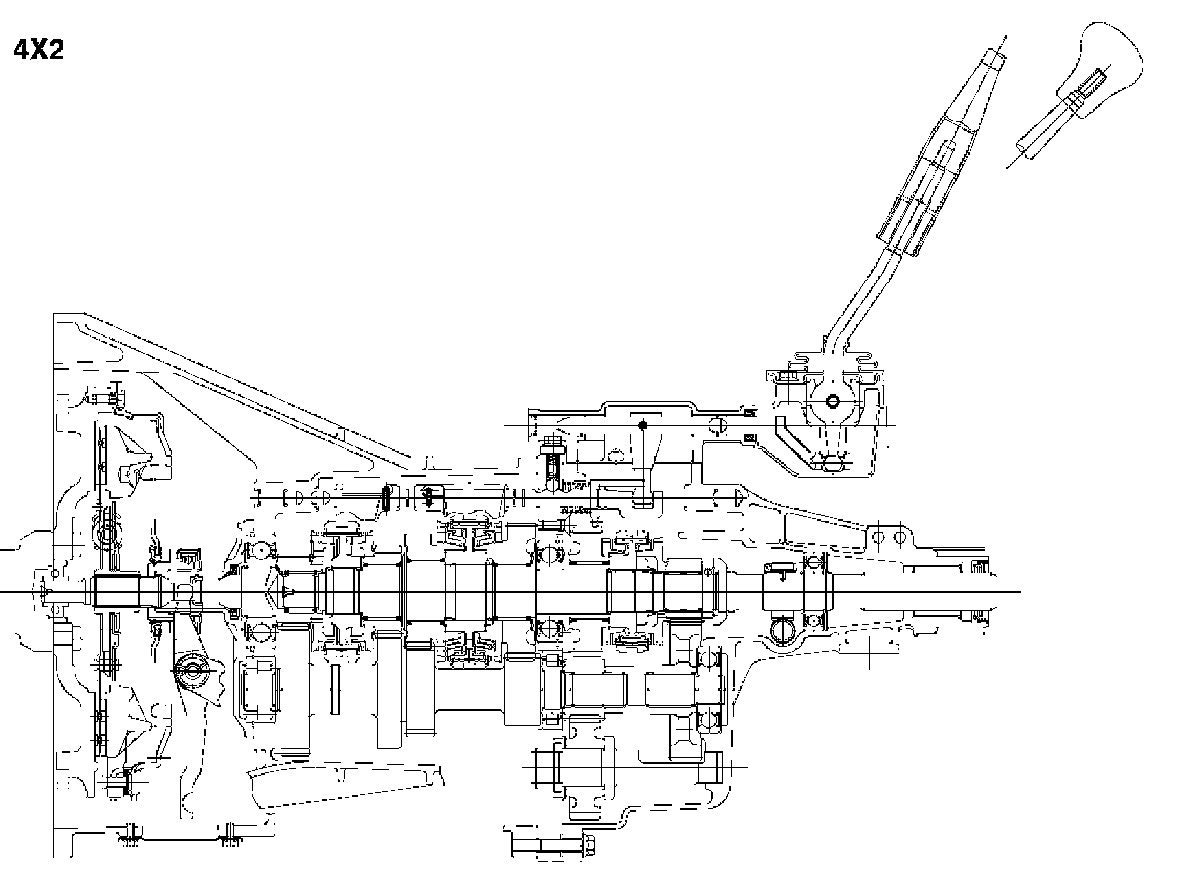

4X2

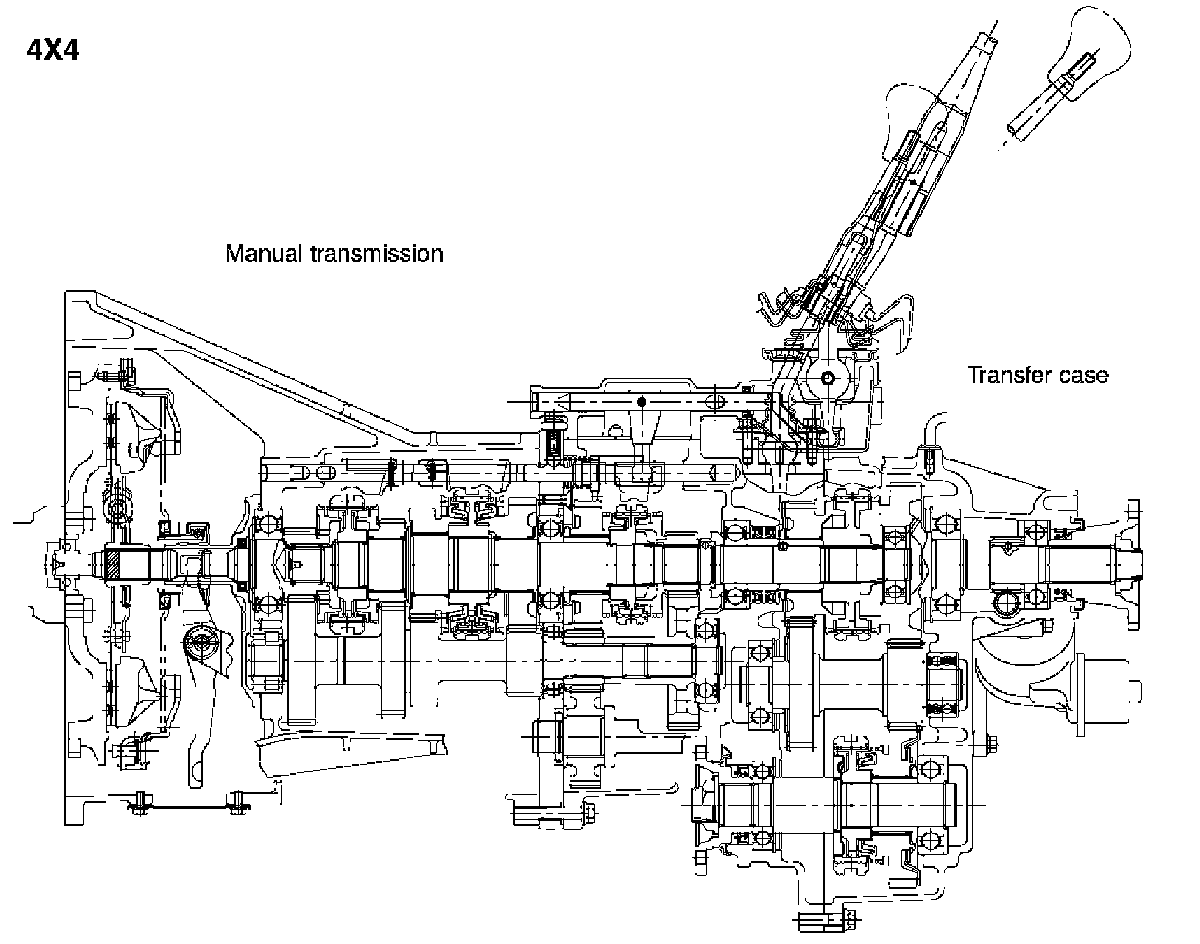

4X4

The MUA5C is a constant mesh transmission, synchronized in all speeds. The transmission is designed for a great reduction of the shift effort and the quietest possible operation.
Principle parts of the transmission are the integral clutch housing, intermediate plate, the transfer case, the rear cover, and the gears.
The transmission control box and transfer control box are built into the transmission and transfer case.
