Electrical Equipment
Shift On The Fly Electrical EquipmentAxle Shaft Connection and Disconnection

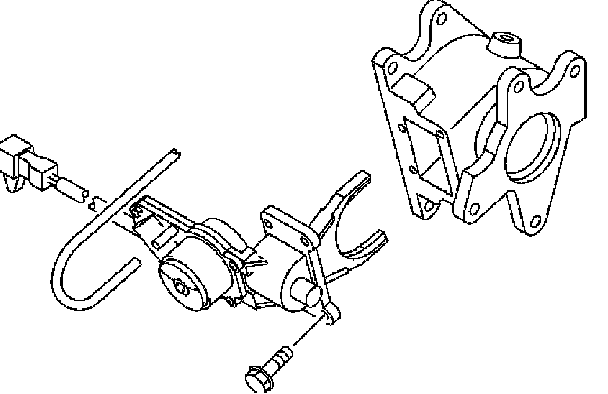

Actuator Assembly

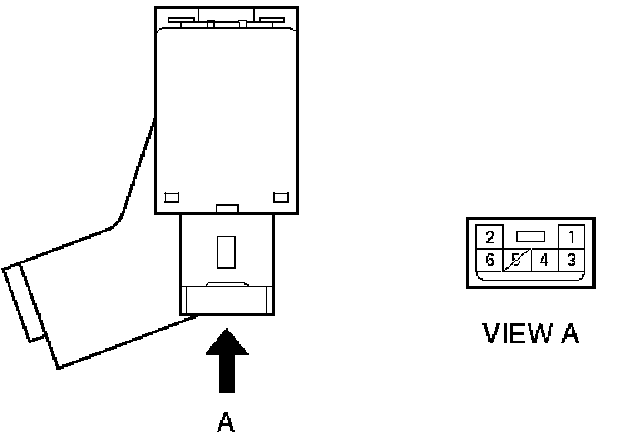

Axle Disconnect Controller
1. Connect 12V with terminal (3) and the ground with the terminal (6).
2. Send the signal to the terminal (4).

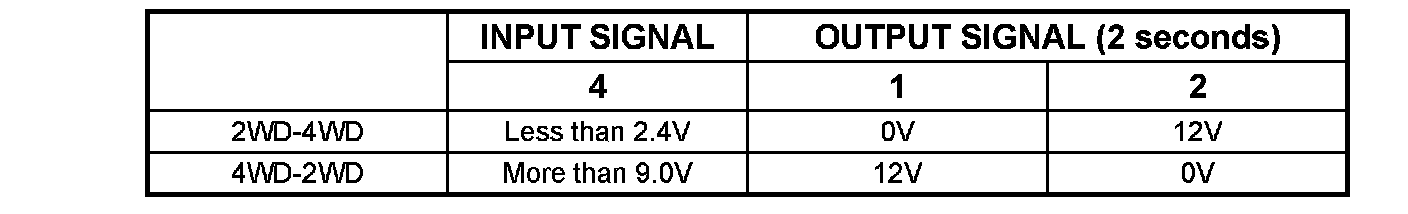

2WD-4WD less than 2.4V
4WD-2WD more than 9.0V
3. Confirm the output signal from the terminals (1) & (2) (2 seconds output)
4. If the trouble occurs after the above test, charge the Axle Disconnect controller to the new one.
Mode Actuator Assembly (Transfer)
Inspect the function of the motor actuator assembly as follows:
1. Disassemble the motor actuator from transfer rear case.

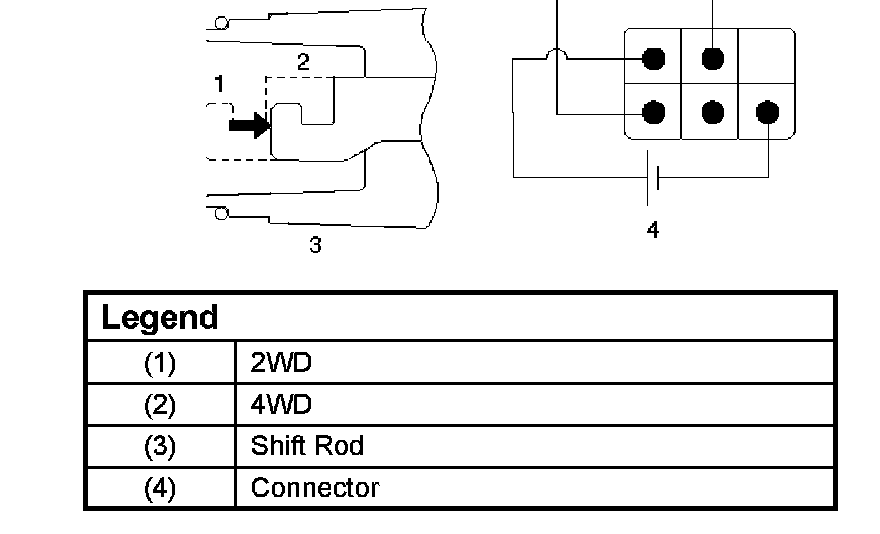

2. Connect the terminals as shown in figure.
Shift rod of the motor actuator moves and stops at 4WD position.

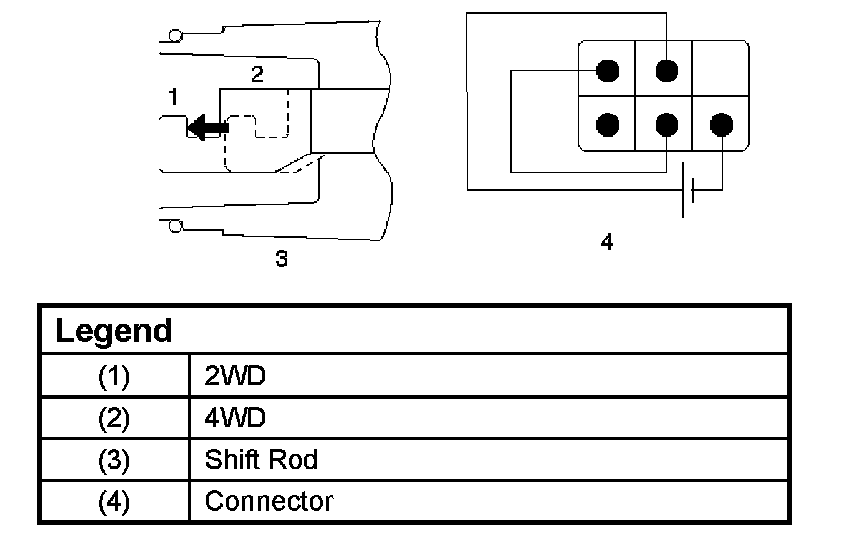

3. Connect the terminals as shown in figure.
Shift rod of the motor actuator moves and stops at 2WD position.
4. If 2) and 3) fail, replace with a new motor actuator.
Transfer Position Switch

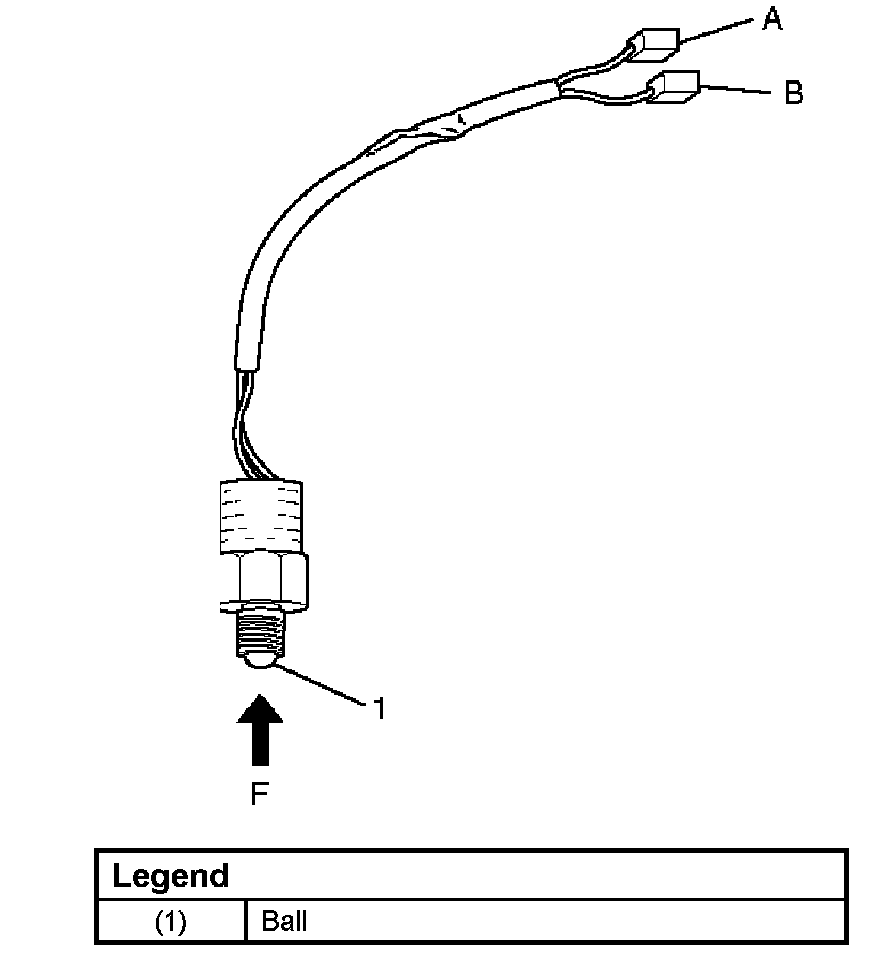

1. With ball being free.
A-B: There is continuity.
2. With ball forced into the switch.
A-B: No continuity.
3. If 1) and 2) fail, replace with a new switch.
