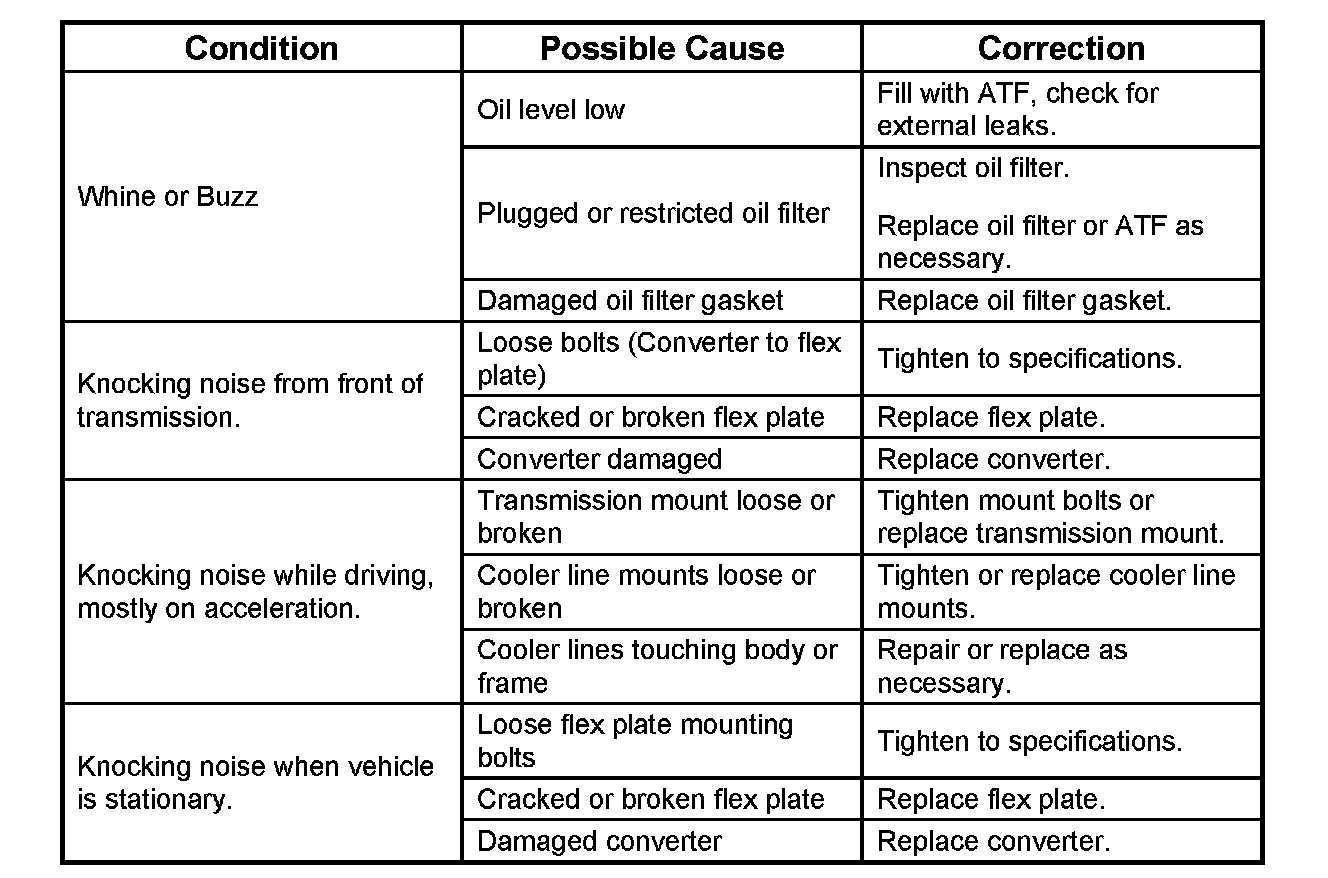

Chart 14: Possible Causes of Transmission Noise

Chart 14: Possible Causes of Transmission Noise





Caution: Before checking transmission for what is believed to be transmission noise, ensure presence and positioning of insulating plugs, pads etc. Also make sure that noise does not come from other drivetrain components.
