Grille: Service and Repair

Radiator Grille And Front End Lower Panel

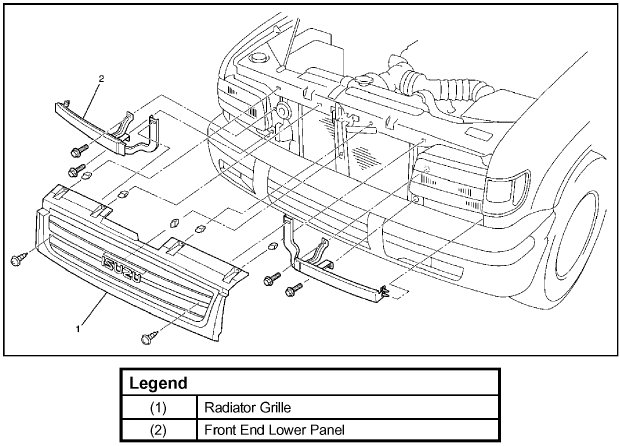

Parts Location:

Removal

1. Open the hood.
2. Support the hood.
3. Remove radiator grille
- Raise the five clips on the radiator grille and remove two screws.







4. Remove front end lower panel.
- Remove two fixing bolts and remove the panel from the fender.

Installation

To install, follow the removal steps in reverse order, noting the following point.
- Install the radiator grille clips remaining on the body side in the radiator grille, and then install the radiator grille on the body.
