Console: Service and Repair

Consoles

Consoles and Associated Parts:

Removal

1. Disconnect the battery ground cable.
2. Remove the shift knob (MIT) / transfer knob (4x4 Only).
3. Remove the front console assembly.
- Remove four fixing screws and disconnect the switch connectors.

4. Remove the front seat assembly(RH).
5. Remove the assist grip.
- Remove three bolts.

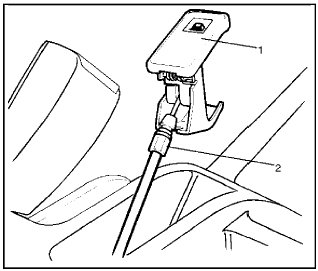

6. Remove the fuel filler lid opener.
- Remove the fuel filter lid opener(1) and disconnect the cable(2).

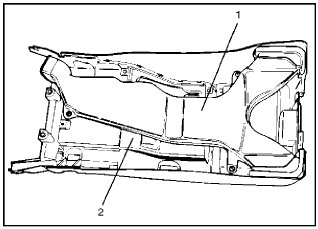

7. Remove the center console assembly(2).
- Remove two fixing screws on the front side.
Open the rear cover, remove two nuts, then the center console assembly.

- Remove the rear heater duct(1) from the center console.







Installation
To install, follow the removal steps in the reverse order.
