Console
Console

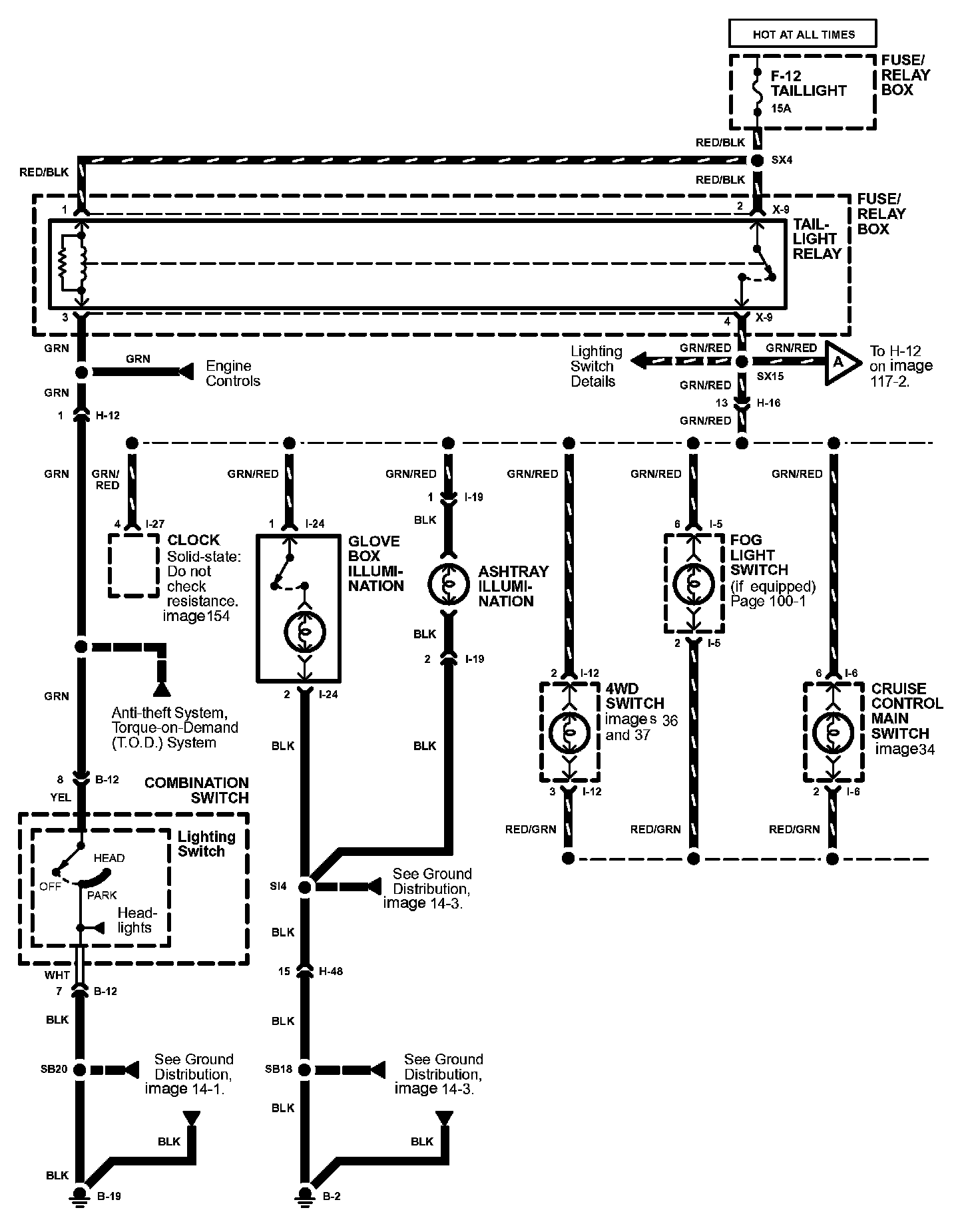

Dash And Console Lights Image 117:

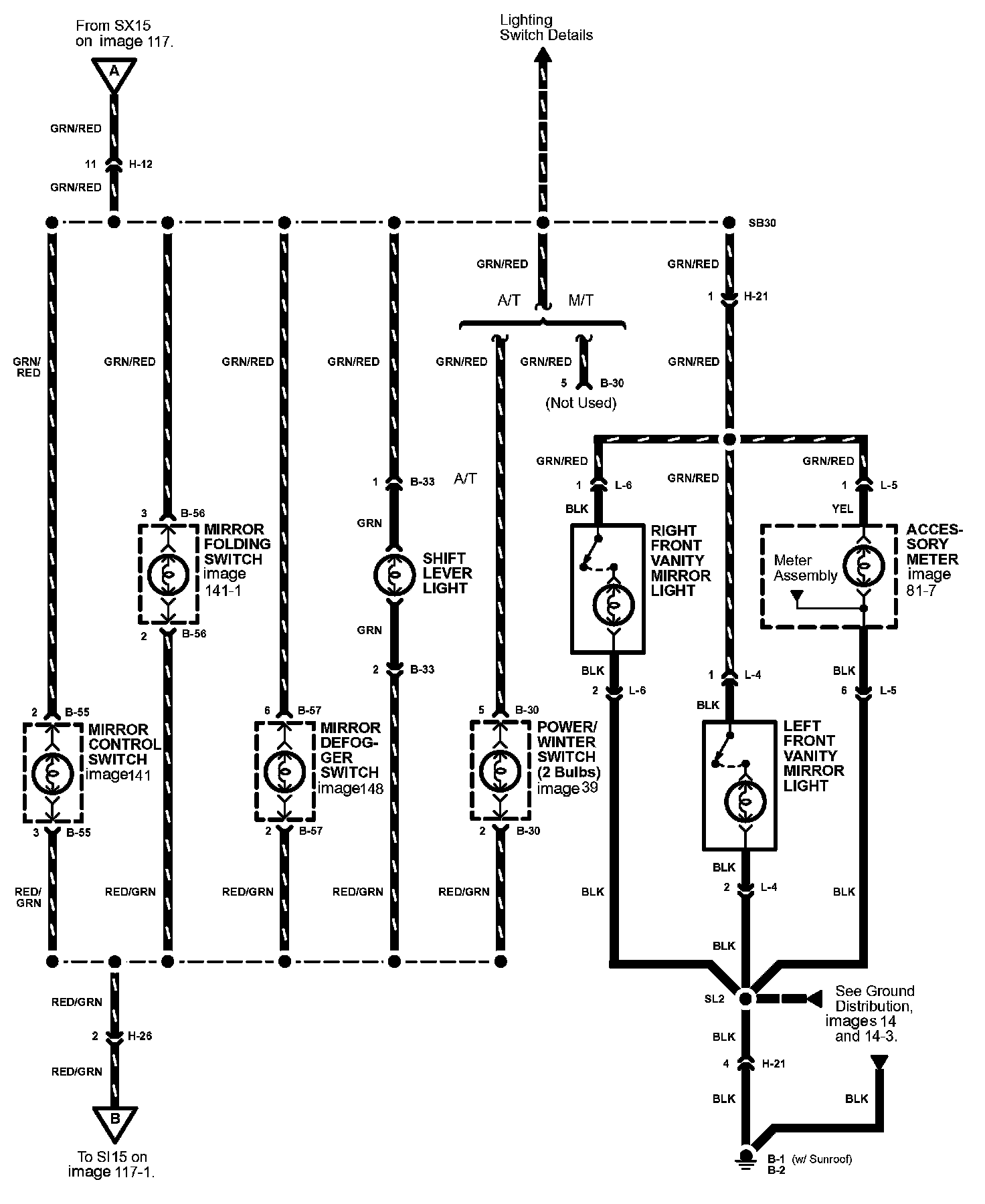

Dash And Console Lights Image 117-1:
Dash And Console Lights Image 117-2:
