Trunk / Liftgate Switch

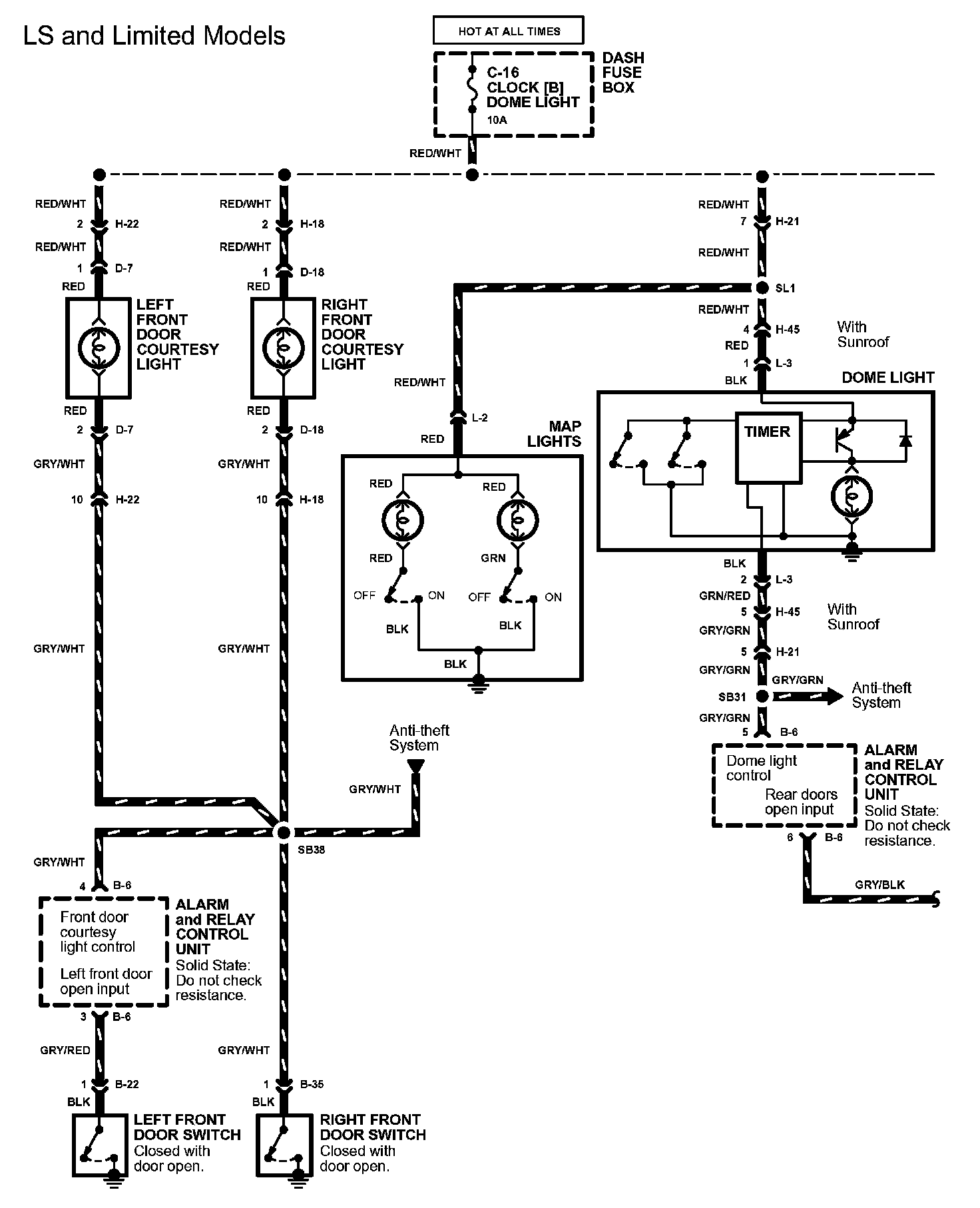

Dome, Luggage Room, And Courtesy Lights Image 114:

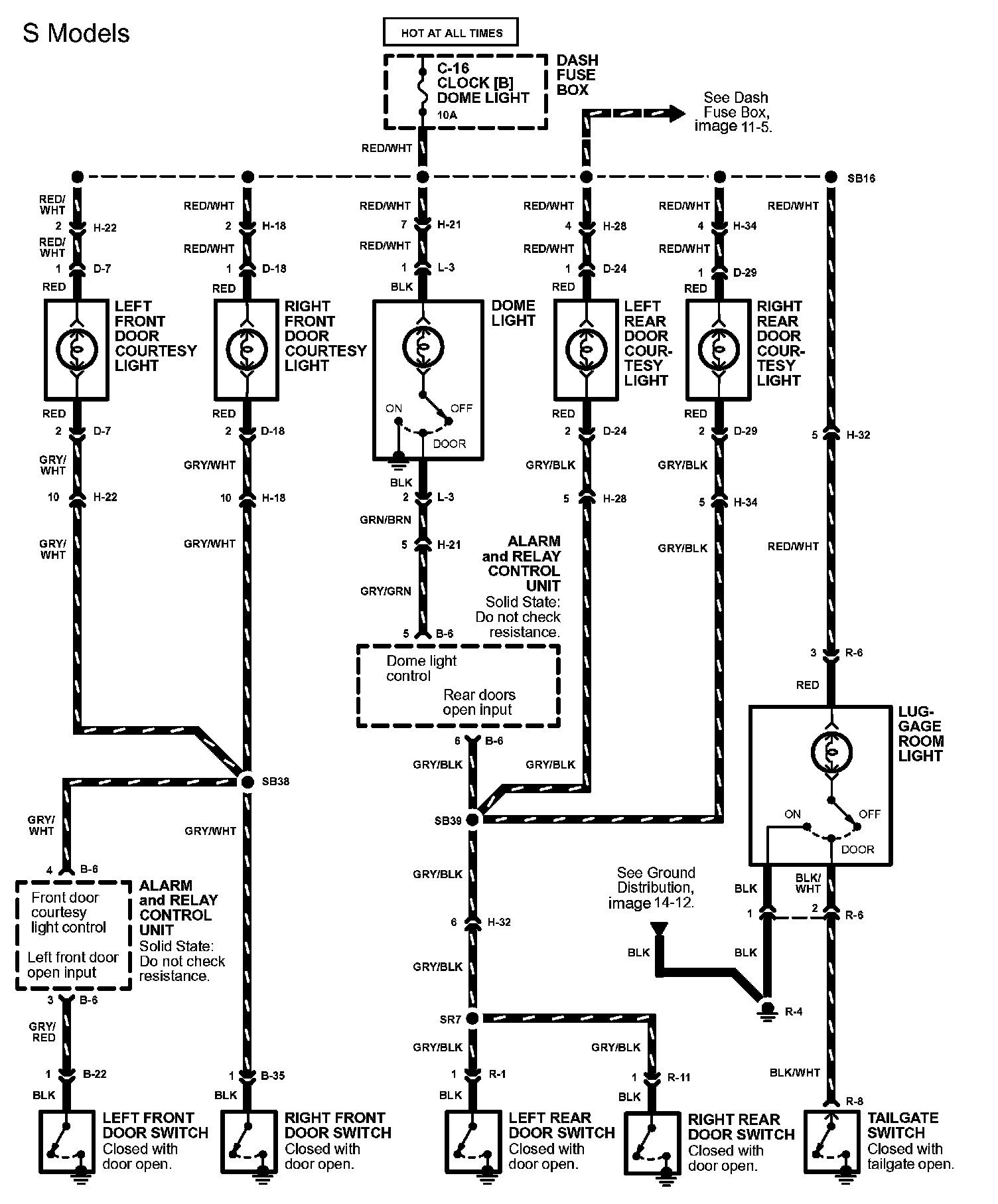

Dome, Luggage Room, And Courtesy Lights Image 114-1:

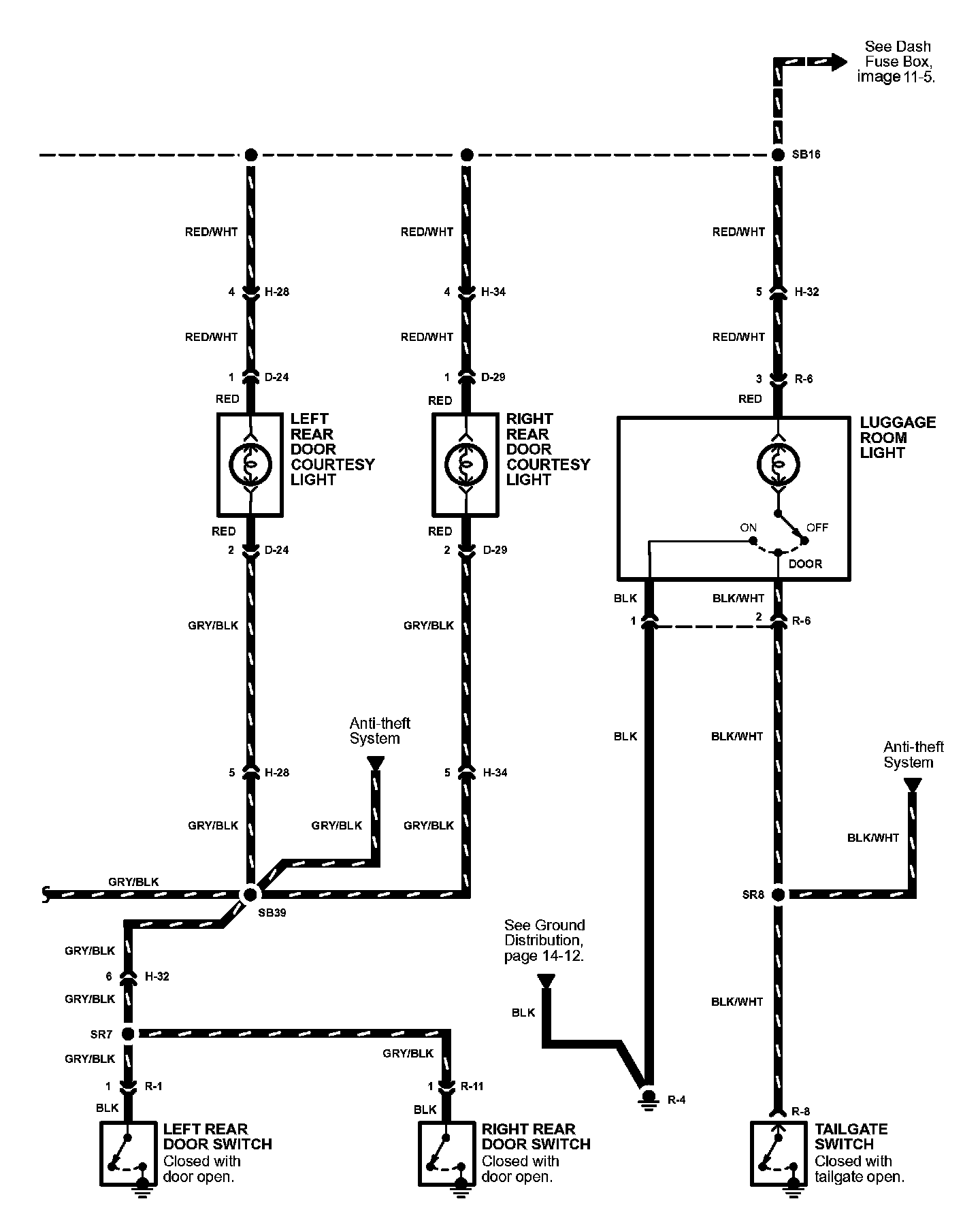

Dome, Luggage Room, And Courtesy Lights Image 114-2:
