Windows

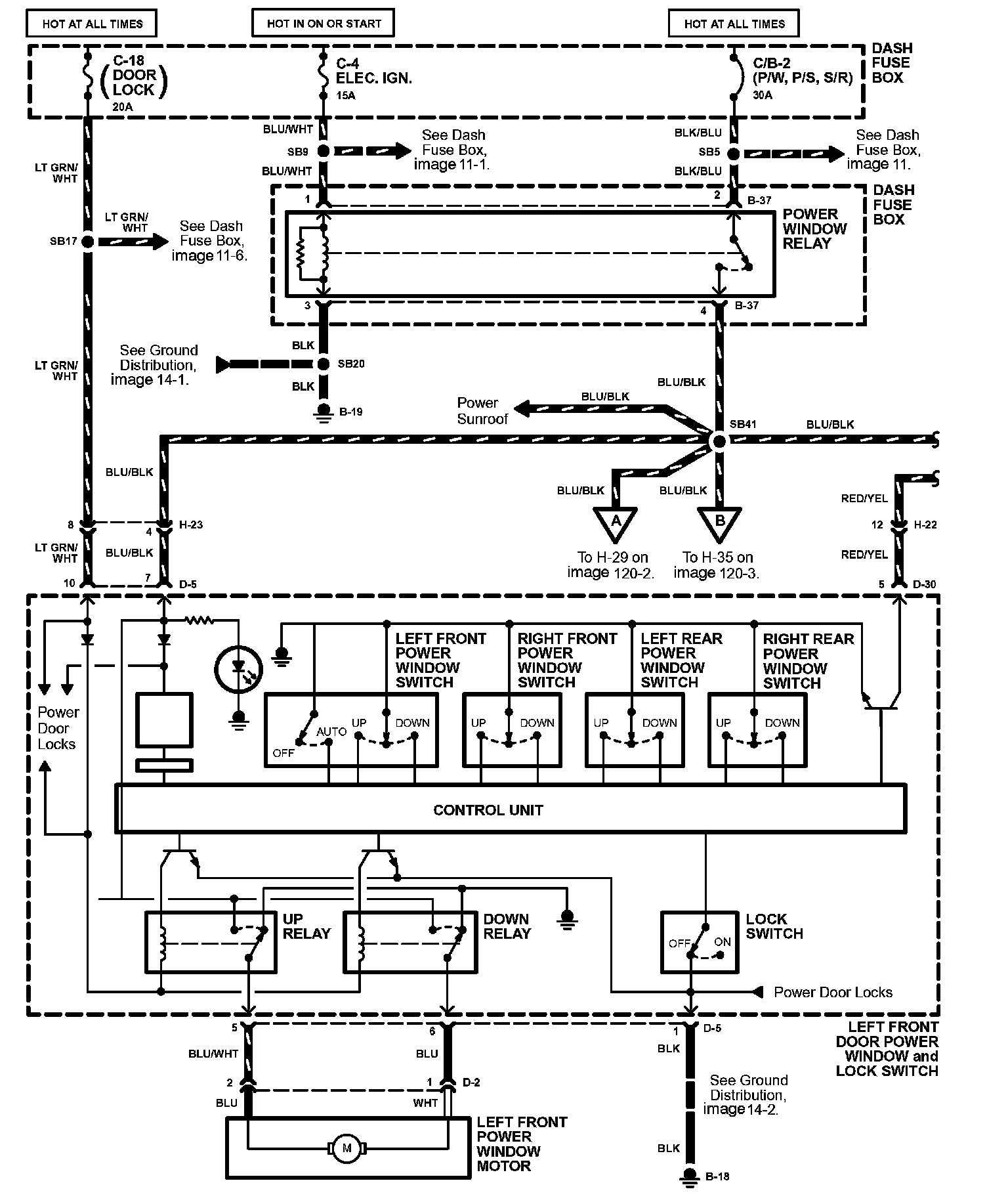

Power Windows Image 120:

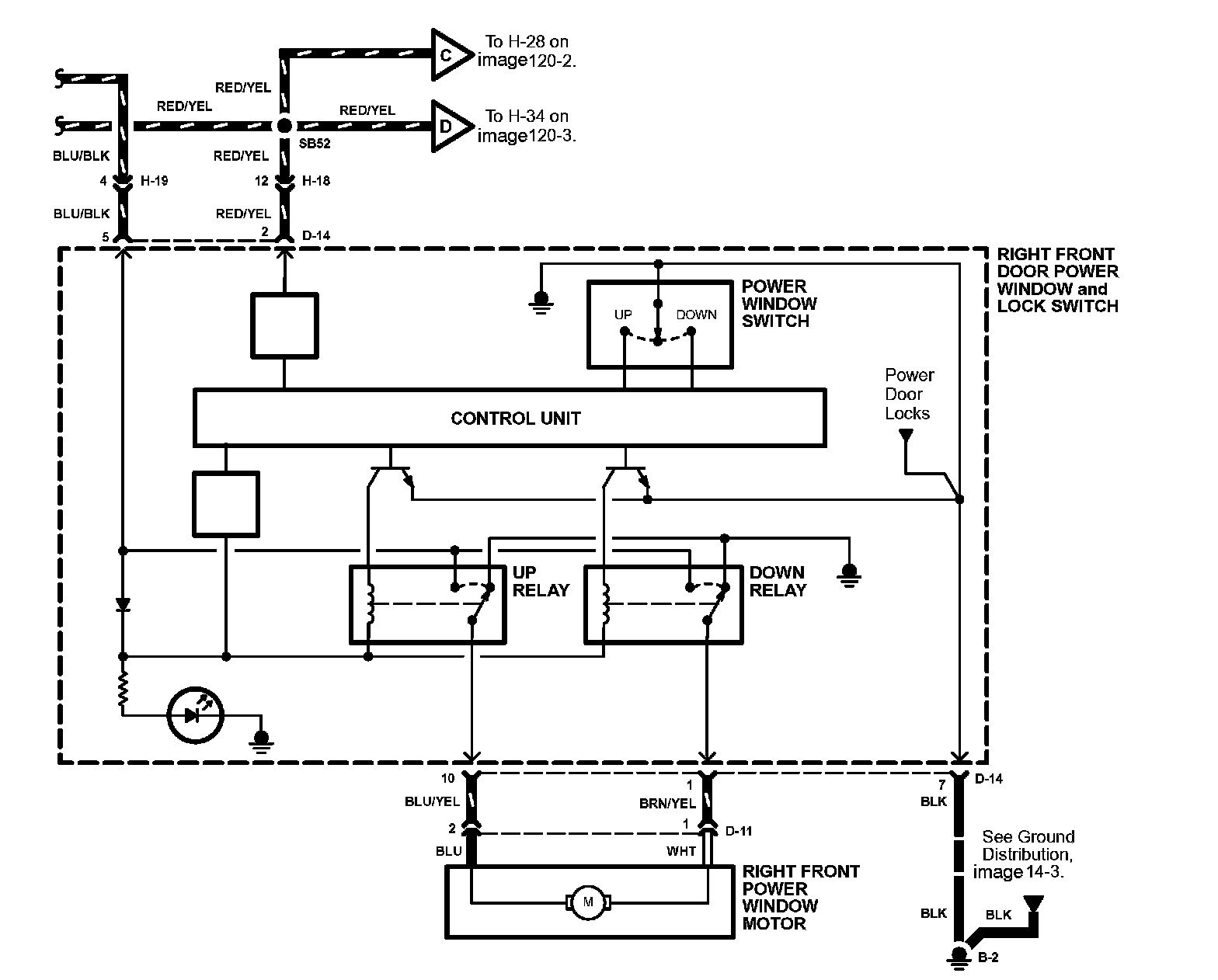

Power Windows Image 120-1:

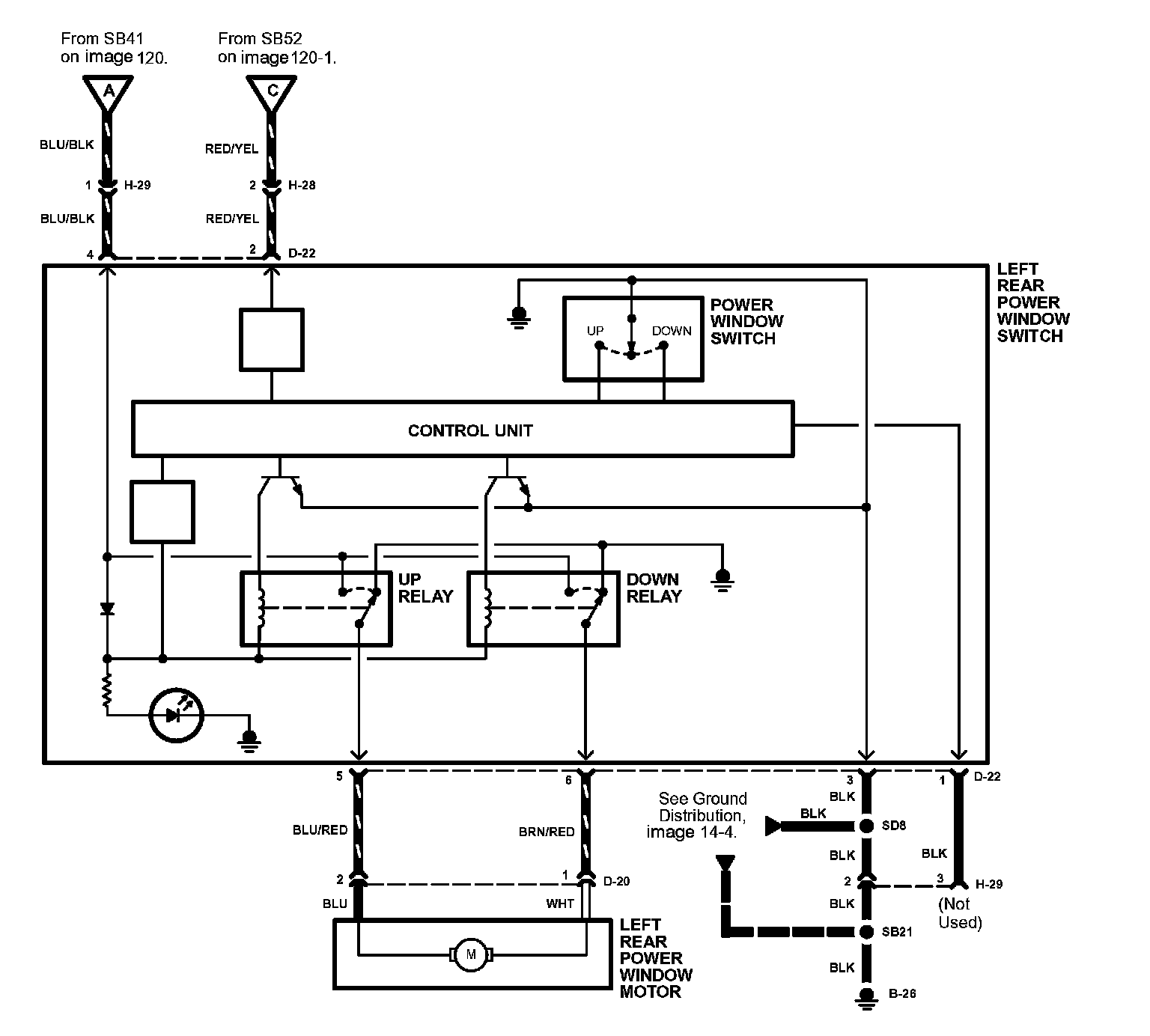

Power Windows Image 120-2:

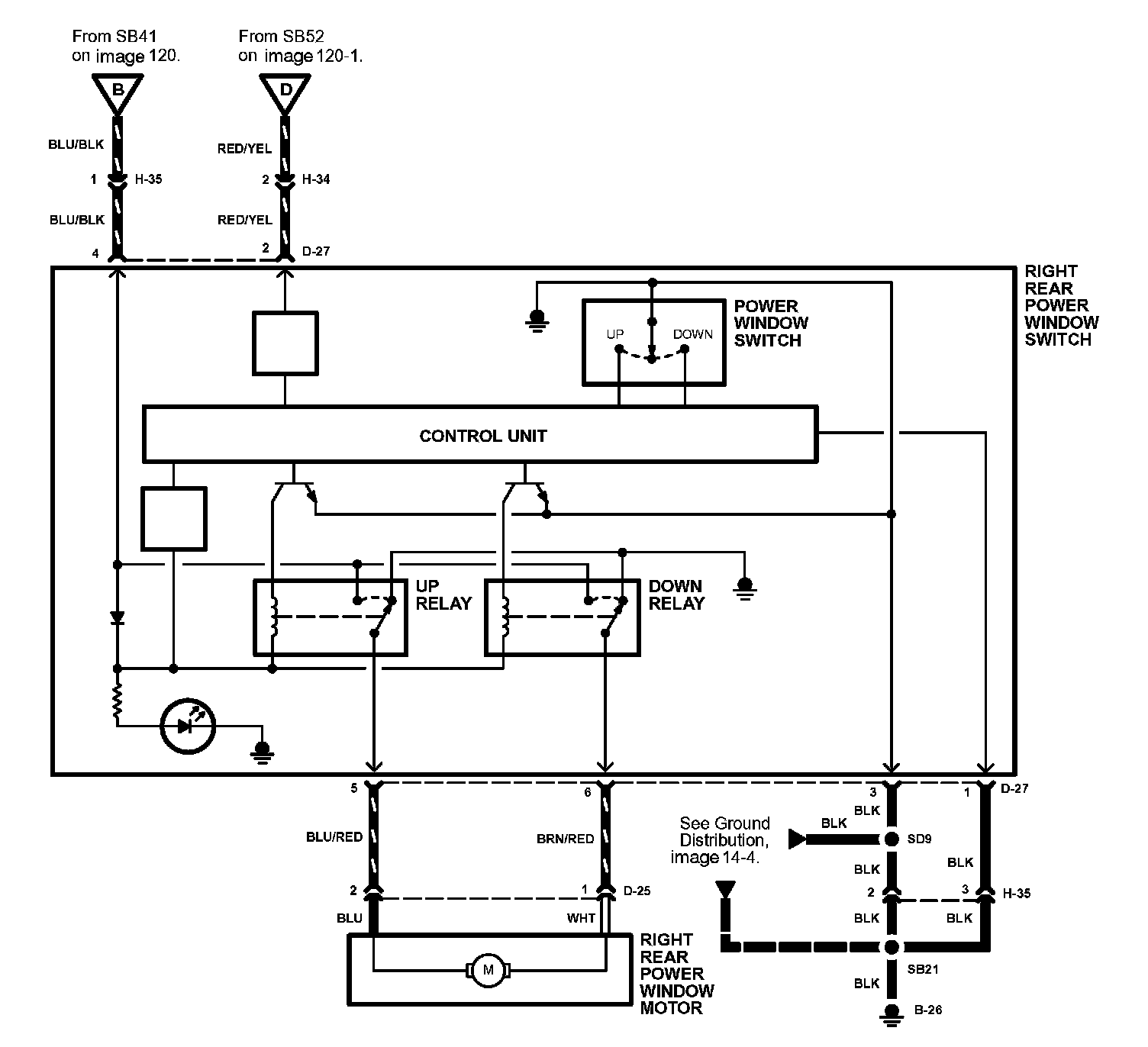

Power Window Image 120-3:

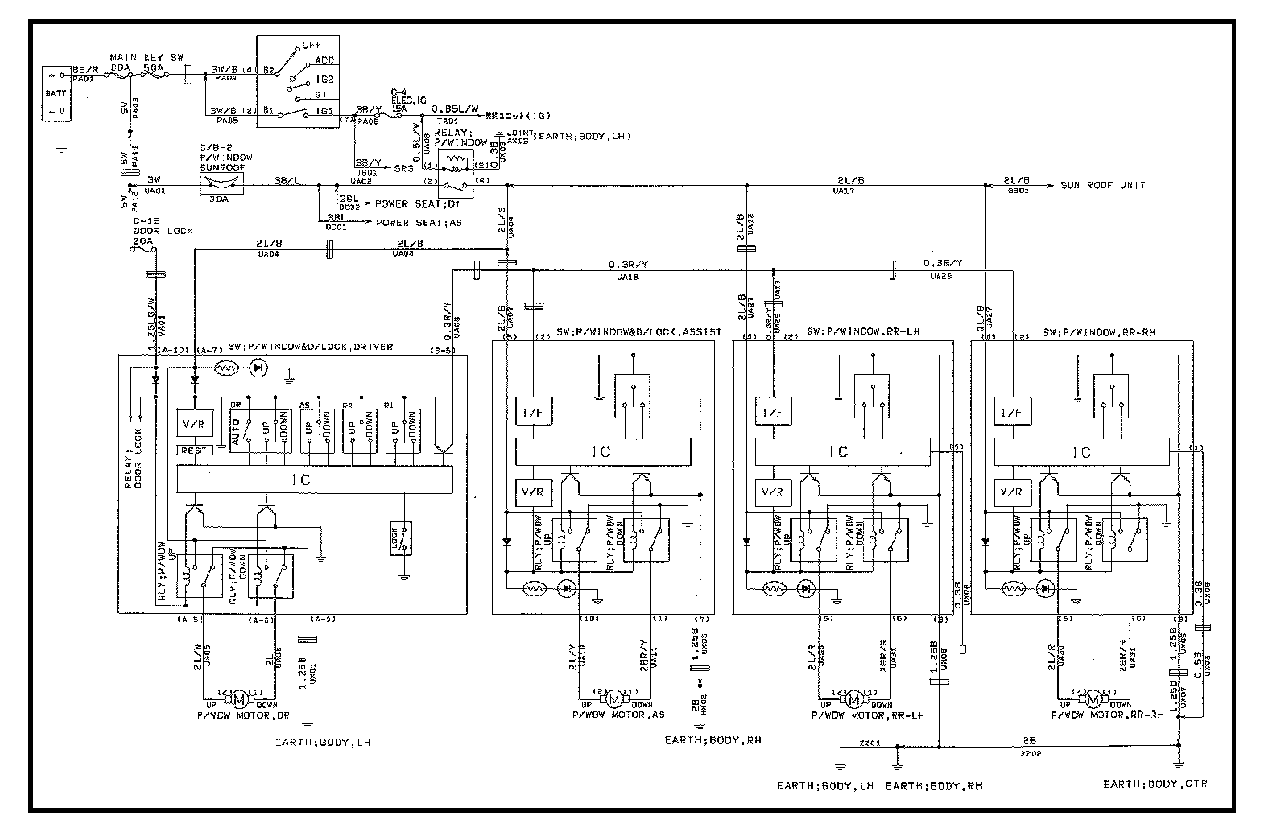

Wiring Diagram - Power Window:
