Discharge Air Temperature Sensor / Switch: Service and Repair

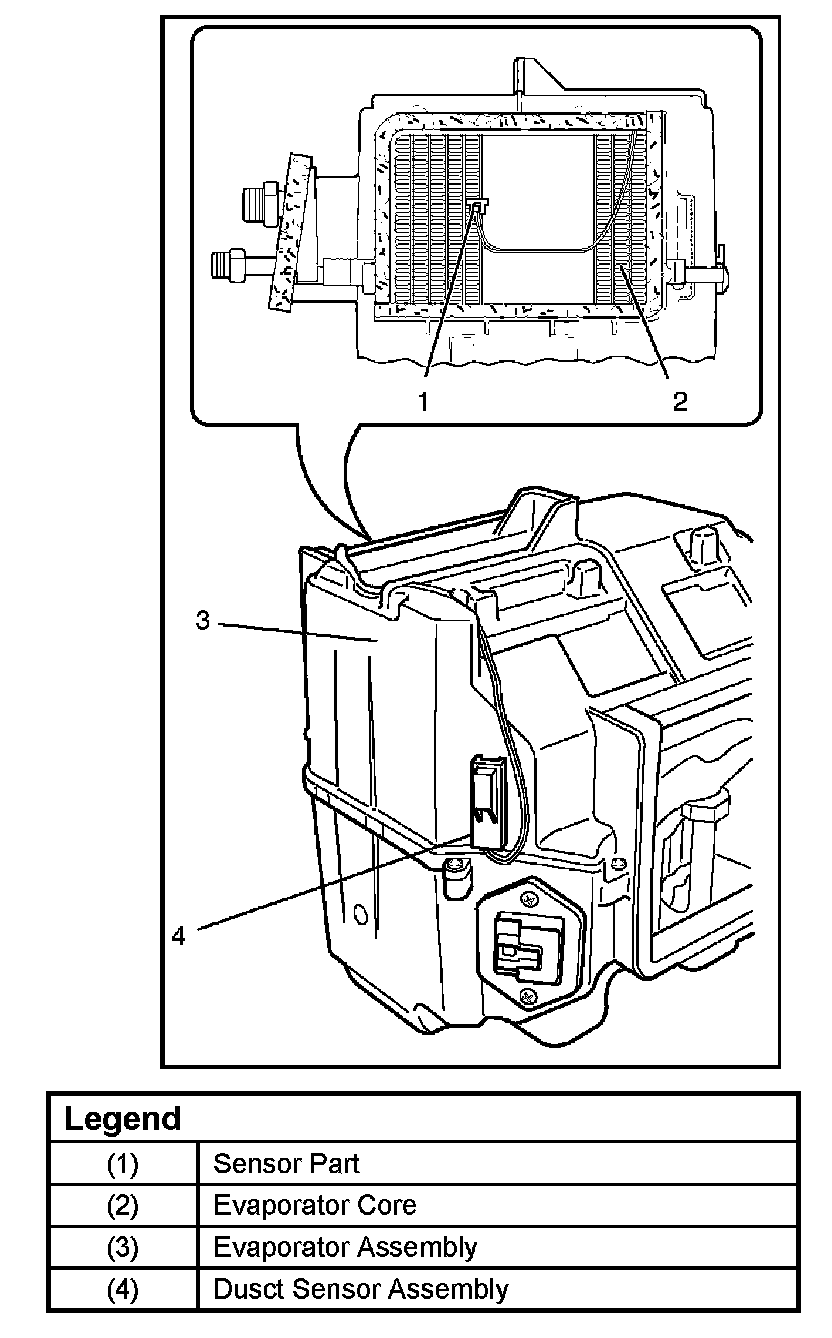

Duct Sensor:

Duct Sensor

Removal

1. Disconnect the battery ground cable.

2. Remove the evaporator assembly.
- Refer to the evaporator assembly.

3. Remove the duct sensor assembly.

Installation

To install, follow the removal step in reverse order.
