Cargo Lamp: Service and Repair

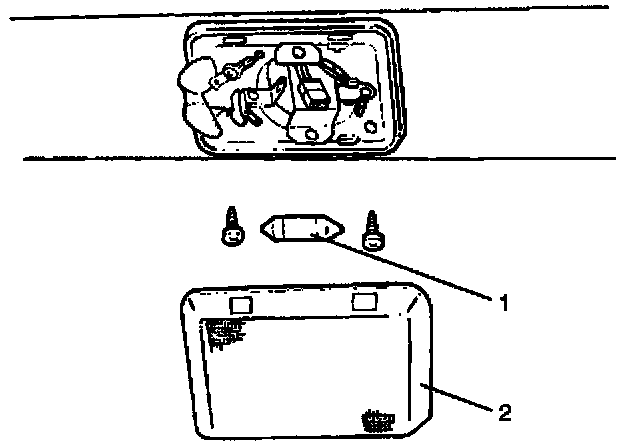

Luggage Room Light Bulb

Removal

1. Disconnect the battery ground cable.




2. Remove the lens (2) by releasing the locks at four locations.
3. Remove the bulb (1).

Installation

To install, follow the removal steps in the reverse order.
