Dome Lamp: Service and Repair

Dome Light Bulb

Removal

1. Disconnect the battery ground cable.

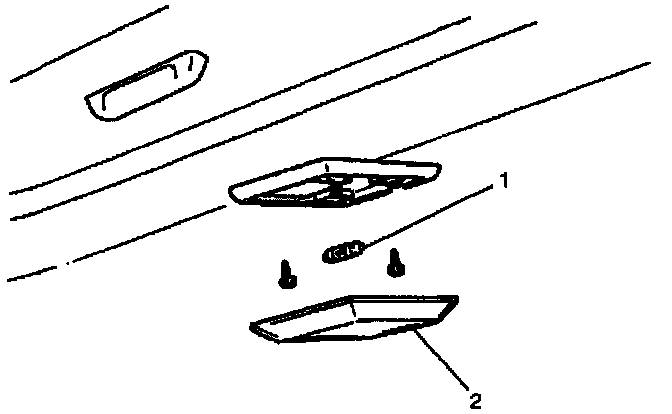

2. Remove the lens (2) by releasing the locks at three locations.
3. Remove the bulb (1).

Installation

To install, follow the removal steps in the reverse order.
