Door Switch: Service and Repair

Removal

1. Disconnect the battery ground cable.

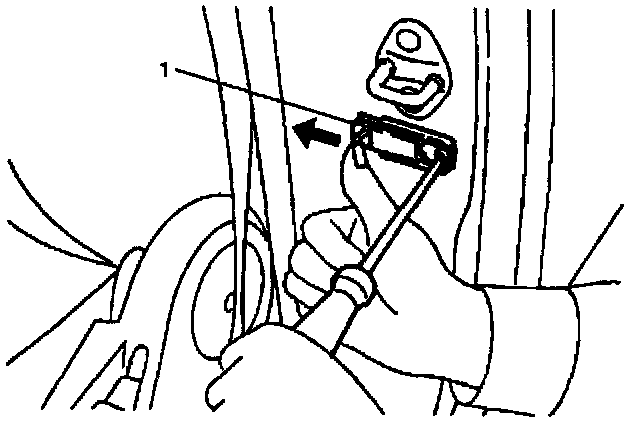

2. Remove the screw and disconnect the connector to remove the door switch (1).

Installation

To install, follow the removal steps in the reverse order.
