Vanity Lamp: Service and Repair

Vanity Mirror Illumination Bulb

Removal

1. Disconnect the battery ground cable.

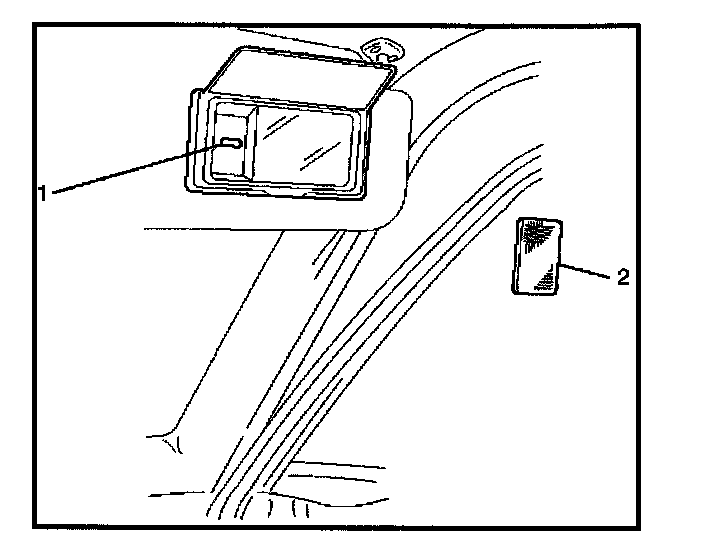

2. Remove the lens (2).
3. Remove the bulb (1).

Installation

To install, follow the removal steps in the reverse order.
