Rear ACC Socket
Rear ACC SocketRemoval
1. Disconnect the battery ground cable.

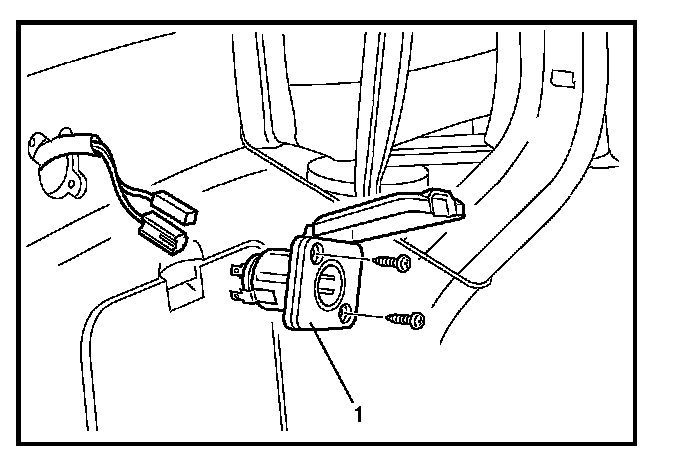

2. Remove two screws and disconnect the connector to remove the ACC socket (1).
Installation
To install, follow the removal steps in the reverse order.
Removal
1. Disconnect the battery ground cable.
2. Remove two screws and disconnect the connector to remove the ACC socket (1).
Installation
To install, follow the removal steps in the reverse order.
