Lamps Test

LAMPS TEST WITH TECH 2
This test is conducted check MIL, Up Shift Lamp, Low Fuel Lamp, Reduced Power Lamp and Cruise Control Lamp for its working.

Tech2 must be used for this test.


Test Procedure:
1. Connect Tech 2 to the vehicle DLC.
2. Run the Engine at idle.

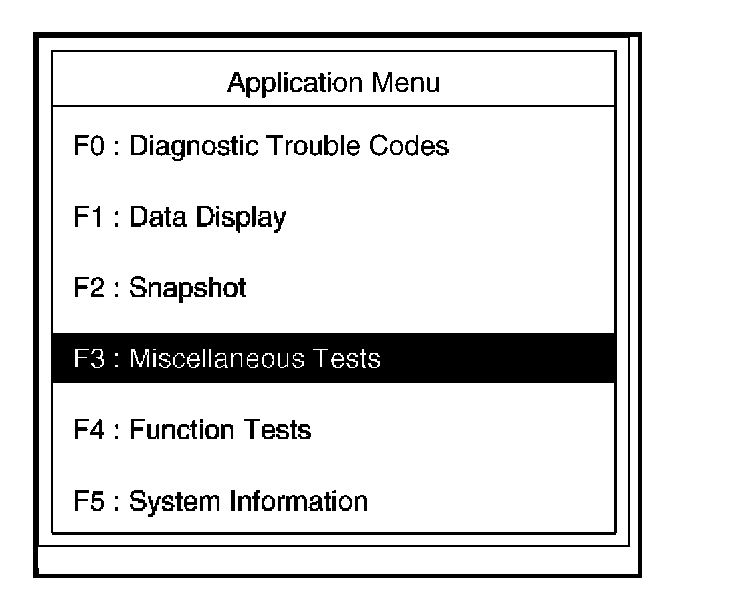

Application Menu:

3. Select F3: Miscellaneous Test in the Application Menu.

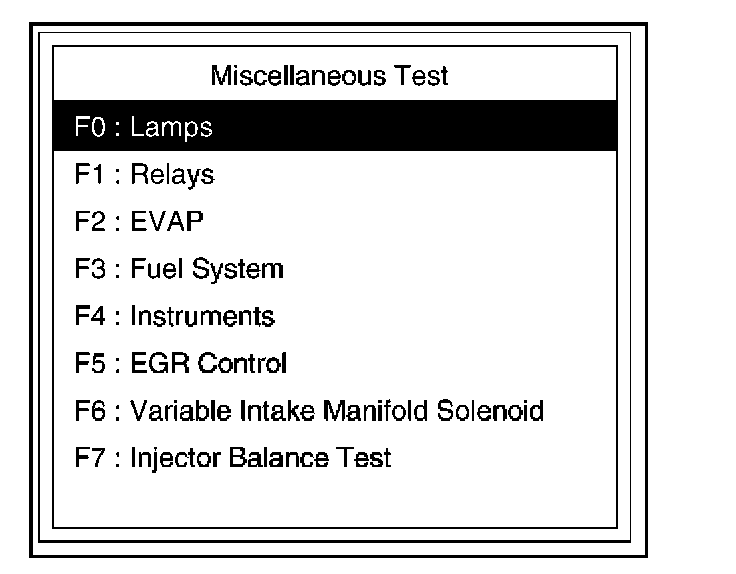

Miscellaneous Test:

4. Select F0: Lamps Test in the Miscellaneous Test.

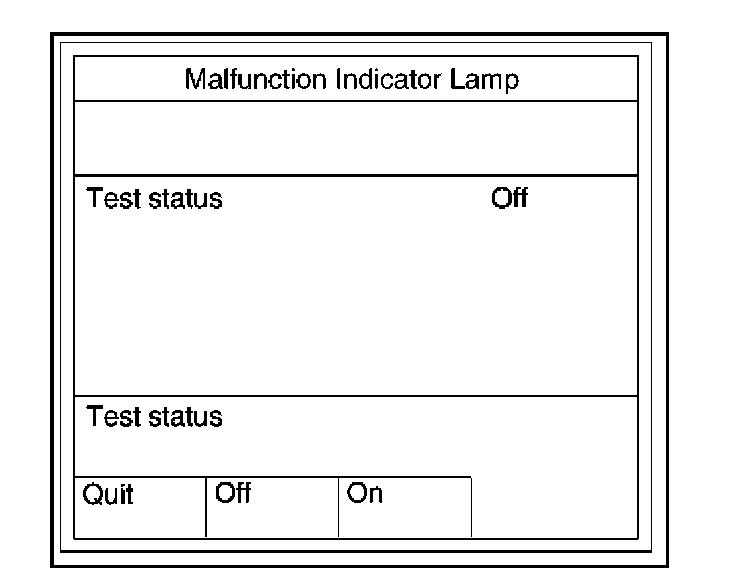

Malfunction Indicator Lamp:

5. Select F0: Malfunction Indicator Lamp.
6. Push"On" soft key.
7. Make sure Lamp illuminates.
8. If lamp illuminates, the Lamp is operating correctly.

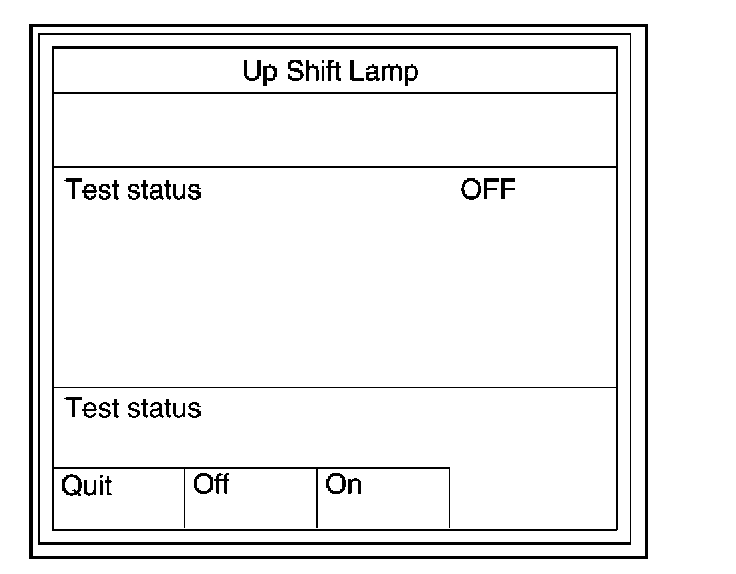

Up Shift Lamp:

9. Select F2: Up Shift Lamp
10. Push "On" of soft key.
11. Make sure Lamp illuminates.
12. If Lamp illuminates, the Lamp is operating correctly.

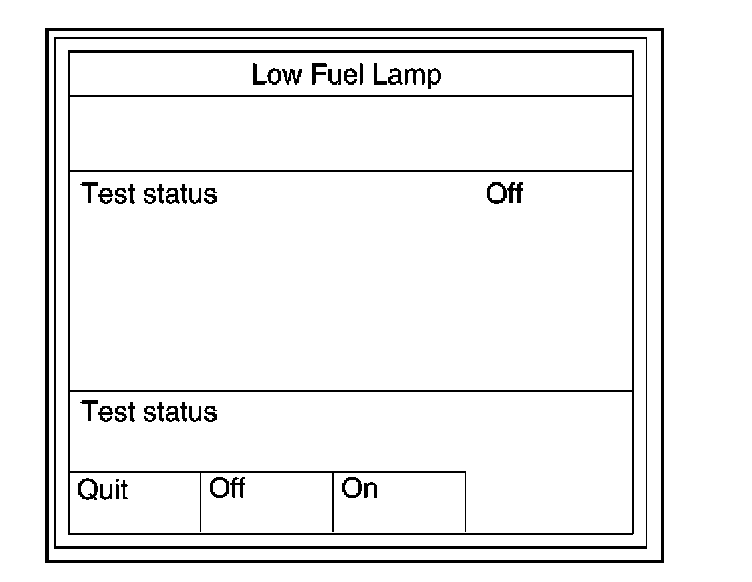

Low Fuel Lamp:

13. Select F2: Low Fuel Lamp
14. Push "On" of soft key.
15. Make sure Lamp illuminates.
16. If Lamp illuminates, the Lamp is operating correctly.

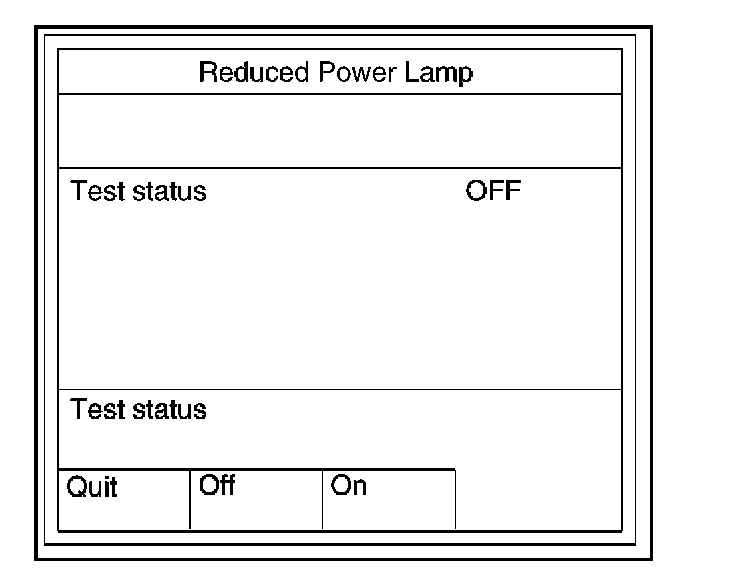

Reduced Power Lamp:

17. Select F3: Reduced Power Lamp
18. Push "On" of soft key.
19. Make sure Lamp illuminates.
20. If Lamp illuminates, the Lamp is operating correctly.

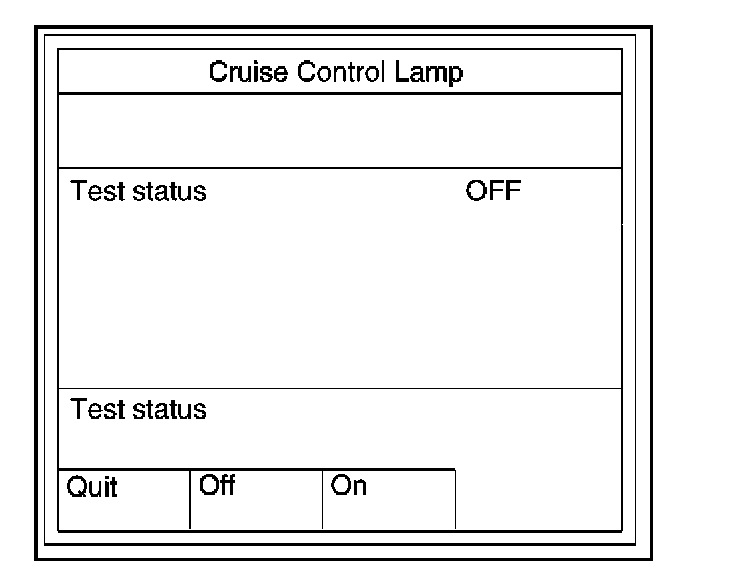

Cruise Control Lamp:

21. Select F5: Cruise Control Lamp
22. Push "On" of soft key.
23. Make sure Lamp illuminates.
24. If Lamp illuminates, the Lamp is operating correctly.
