Variable Intake Manifold Solenoid Test

VARIABLE INTAKE MANIFOLD SOLENOID TEST WITH TECH 2
This test is conducted check VIM Solenoid for proper operation.
Tech 2 must be used for this test.

Test Procedure:
1. Connect Tech 2 to the vehicle DLC.

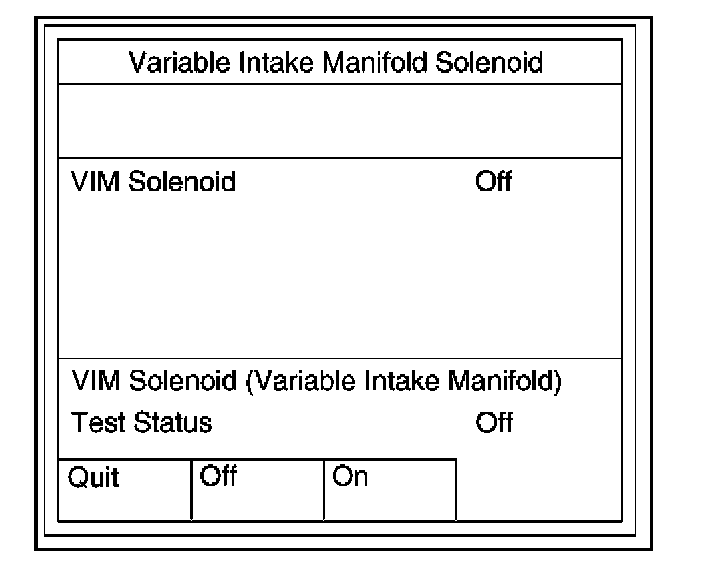

Variable Intake Manifold Solenoid:

2. Ignition SW is "On".

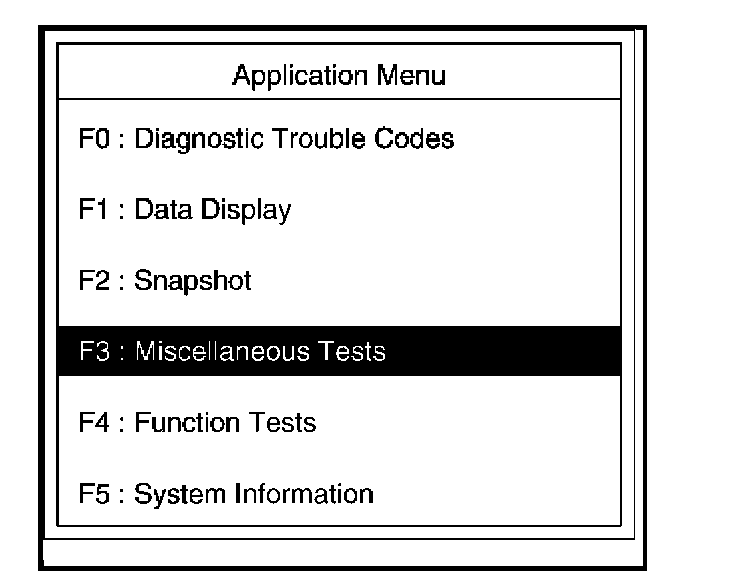

Application Menu:

3. Select F3: Miscellaneous Test in the Application Menu.

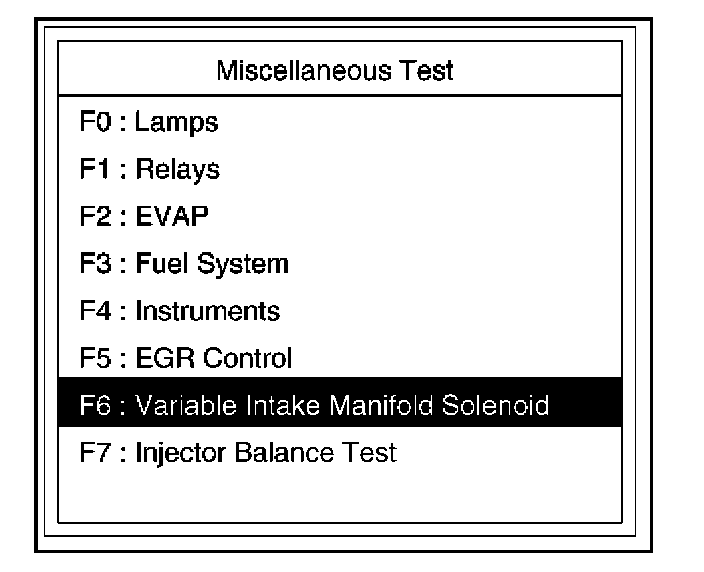

Miscellaneous Test:

4. Select F6: Variable Intake Manifold Solenoid Test.

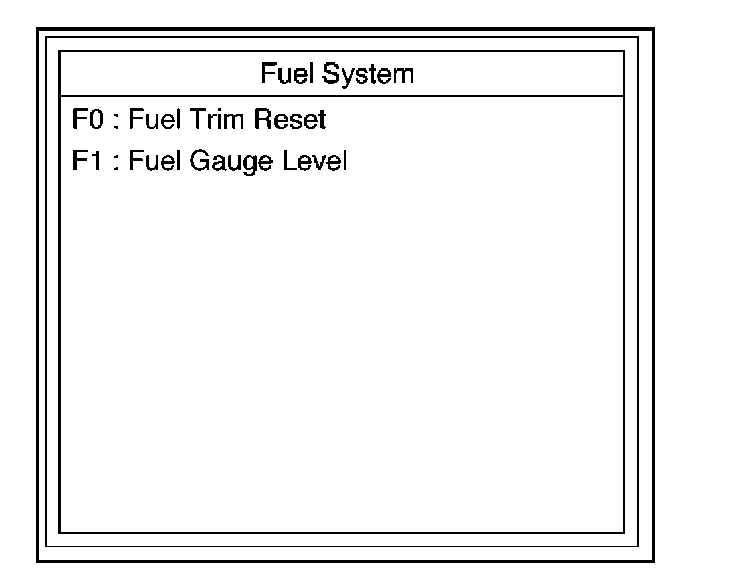

Fuel System:

5. Push "On" or "Off" of soft key.

6. Control VIM Solenoid check data list.
7. If data list changes, the VIM Solenoid is normal.
