Fuel Tank Unit: Service and Repair

Fuel Tank Unit

Removal

1. Disconnect the battery ground cable.






2. Remove the fuel tank (1). Refer to the Fuel Tank removal steps.
Fuel Tank

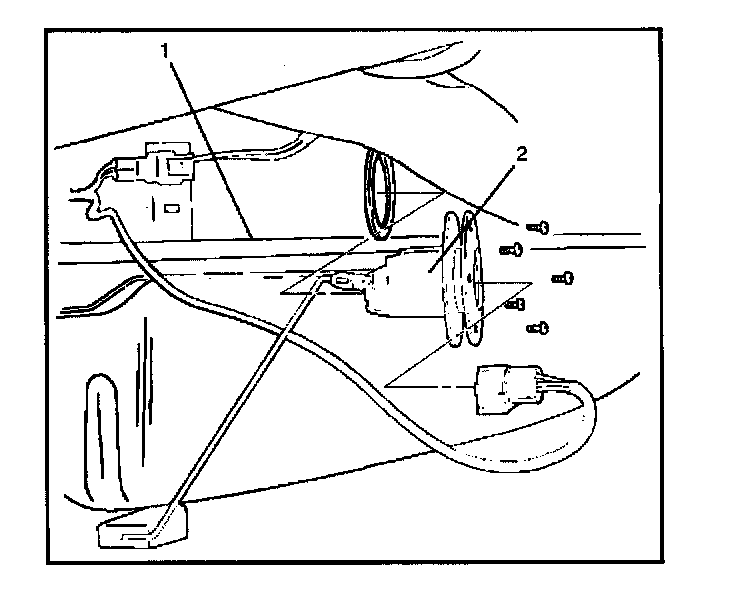

3. Disconnect the connectors, remove five screws and then remove the fuel tank unit (2).


Installation
To install, follow the removal steps in the reverse order.
